Rotary Axis #125

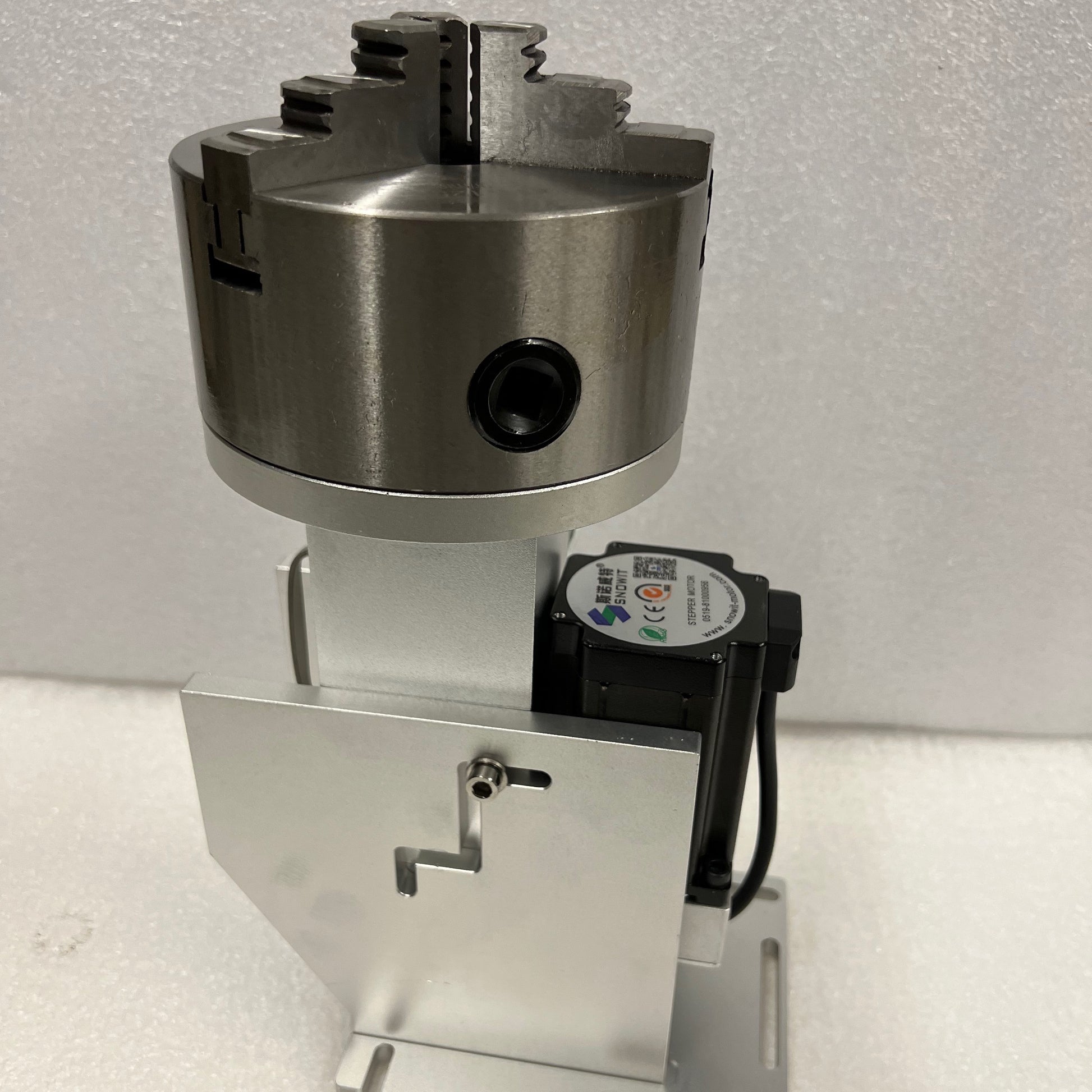

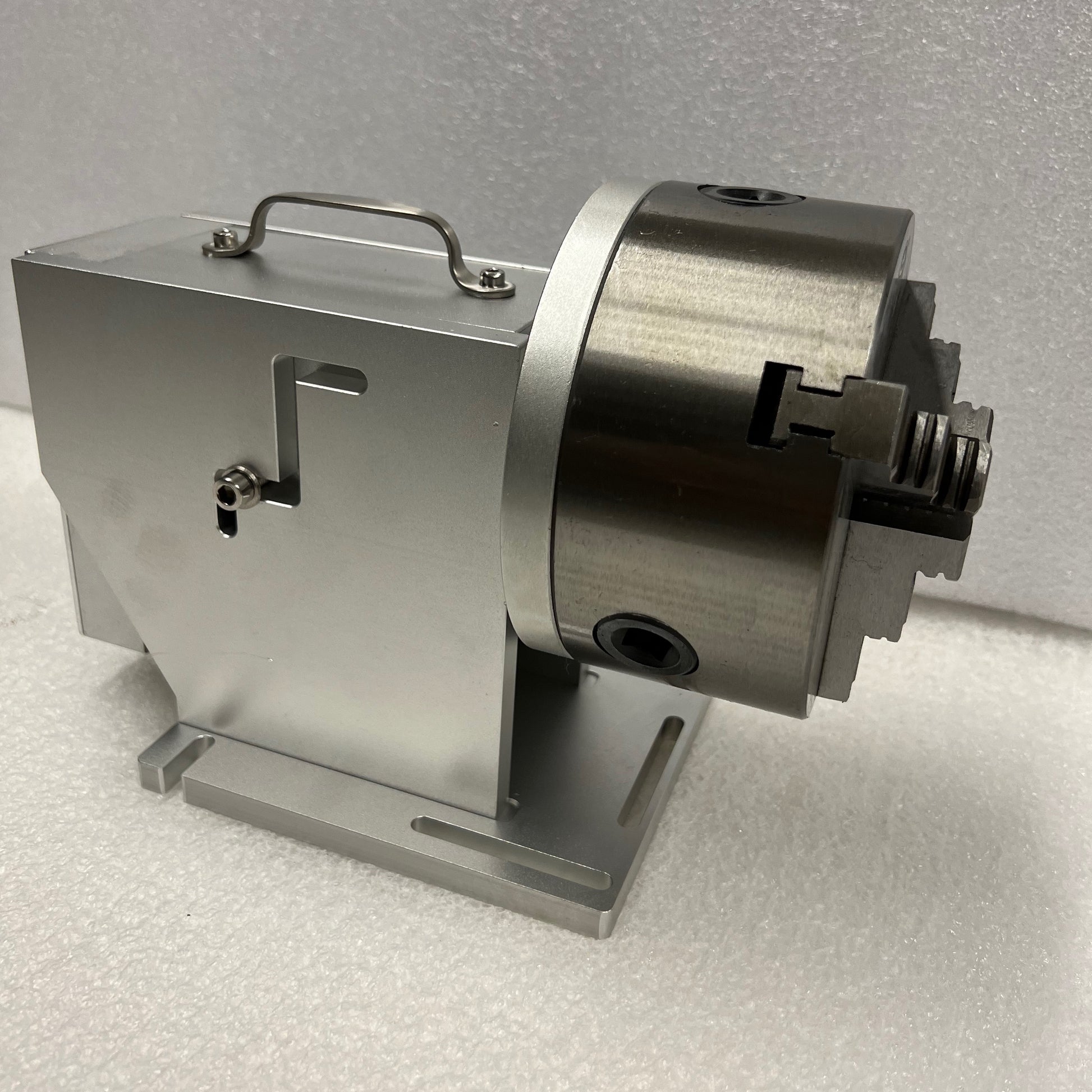

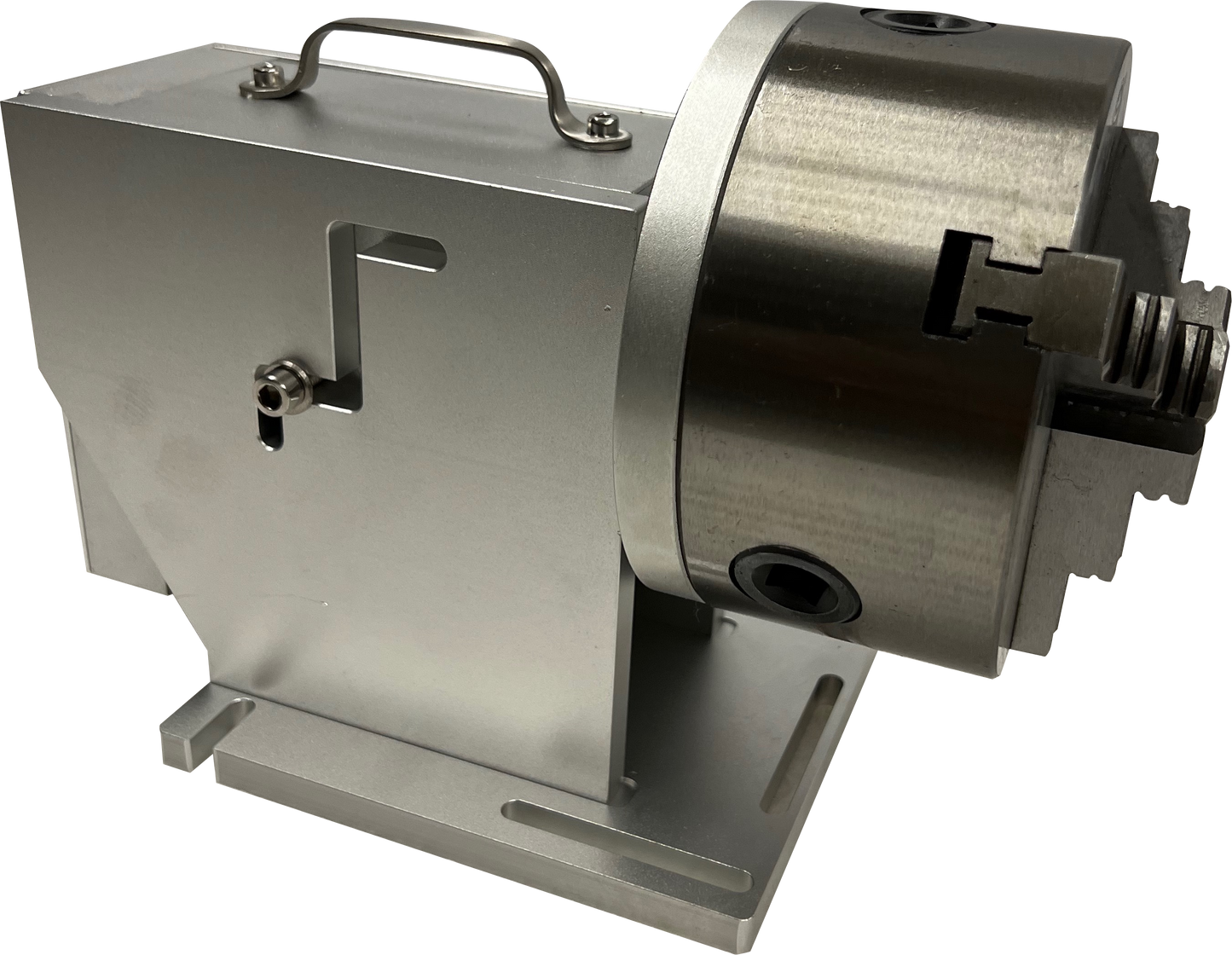

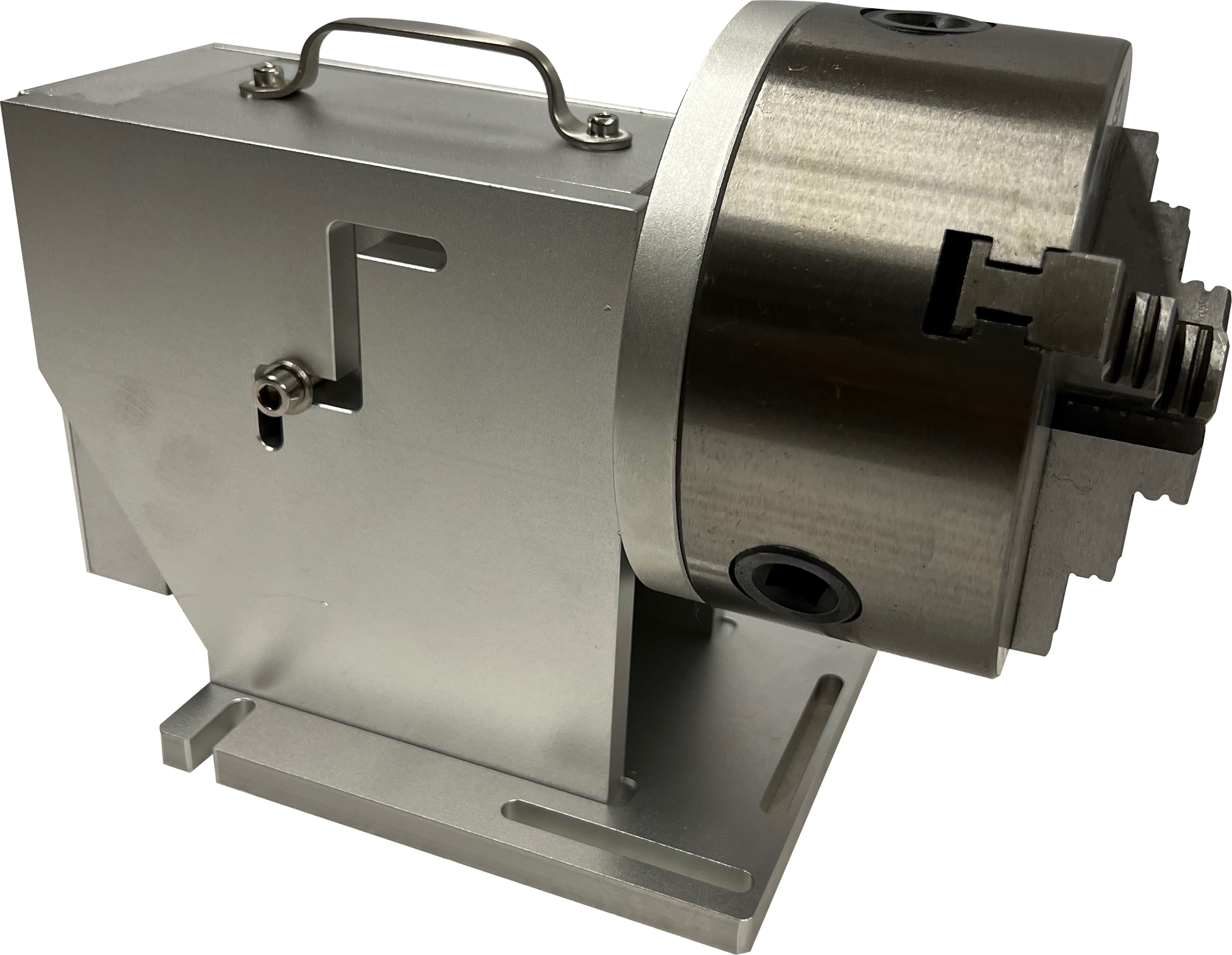

125 mm Rotary Axis for Laser Marking Machine

• Compatible with all Split Type Fiber Laser Engravers

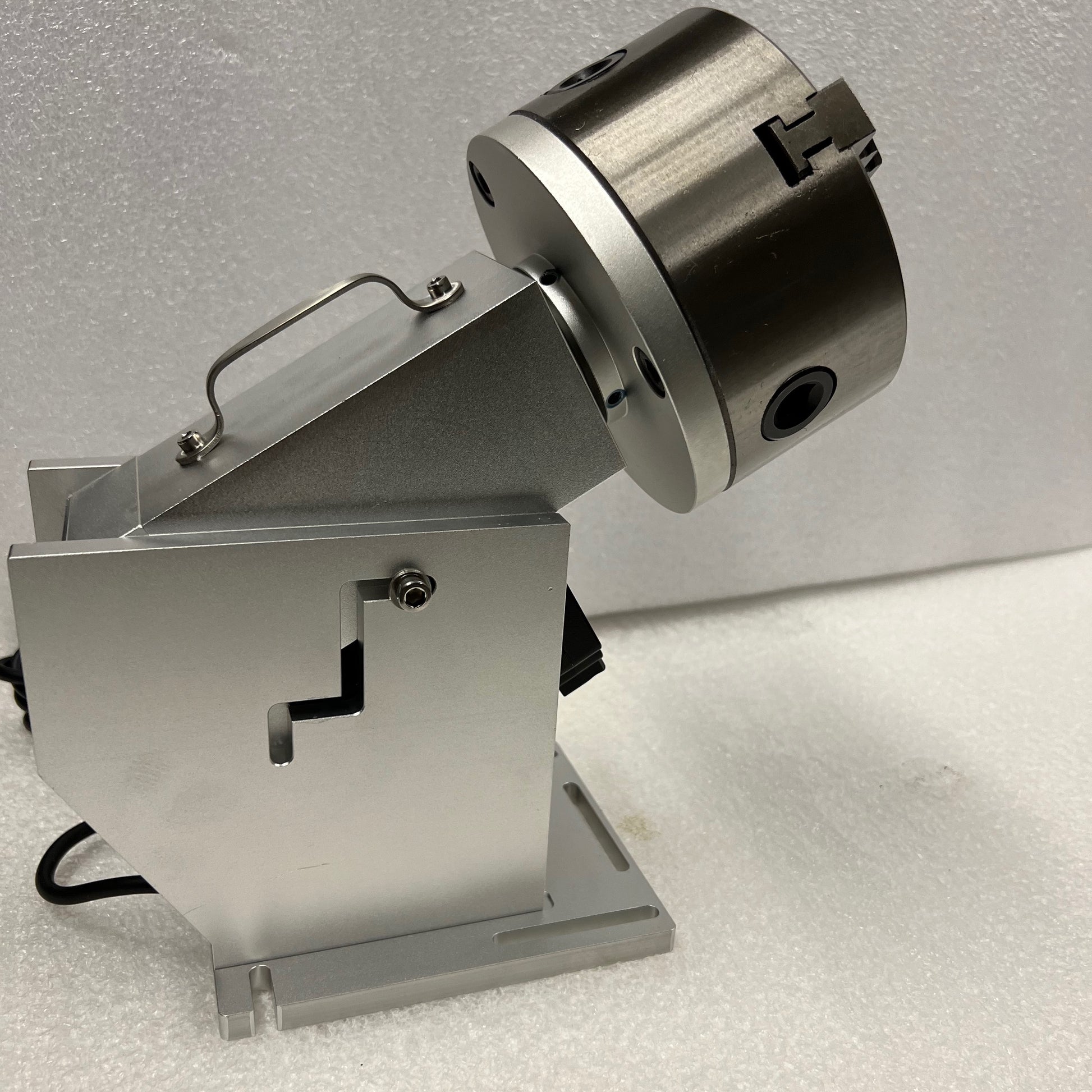

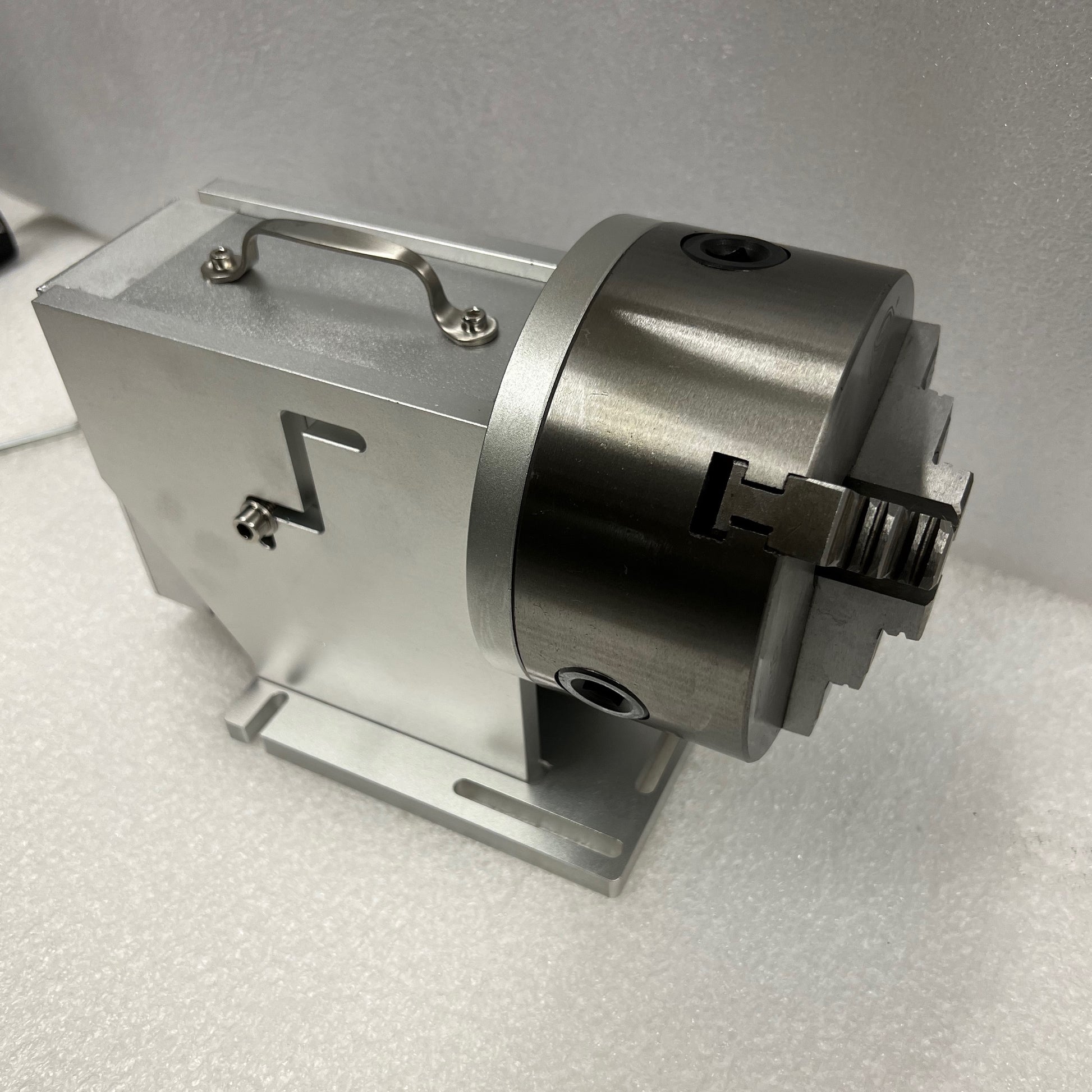

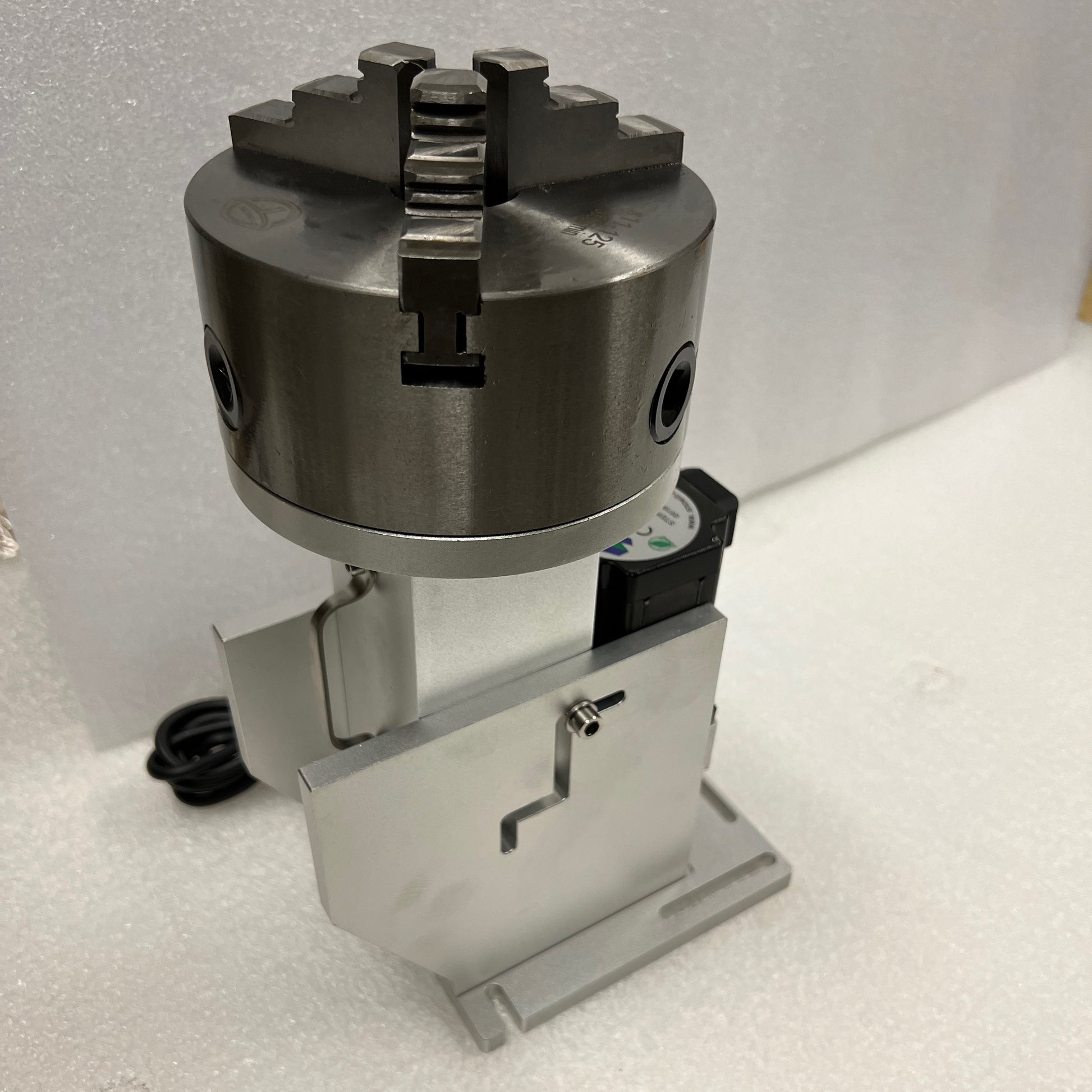

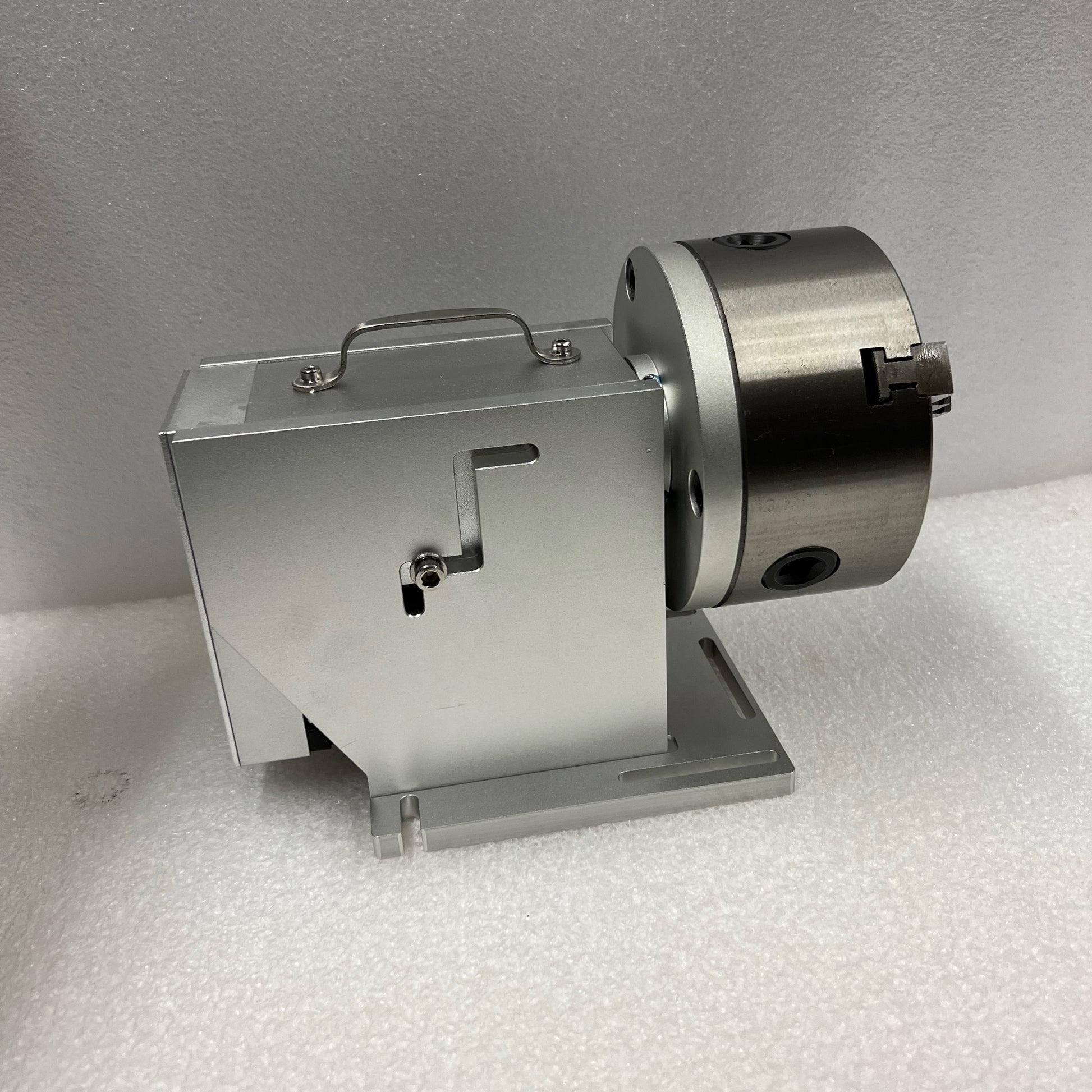

• 3-jaw rotary axis boasts 180° stepless angle adjustment and 360° smooth rotation for engraving around the complete inner or outer circumference of round objects, ideal for rings, bracelets, pens, cups, tubes, and more

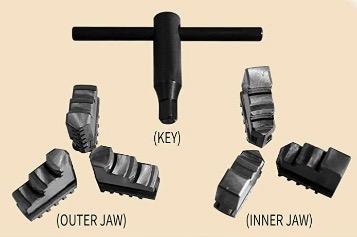

• Adjustable Jaws: Our rotary laser marker and engraver attachment has 2 sets of clamping jaws and a chuck key included to securely hold cylindrical objects

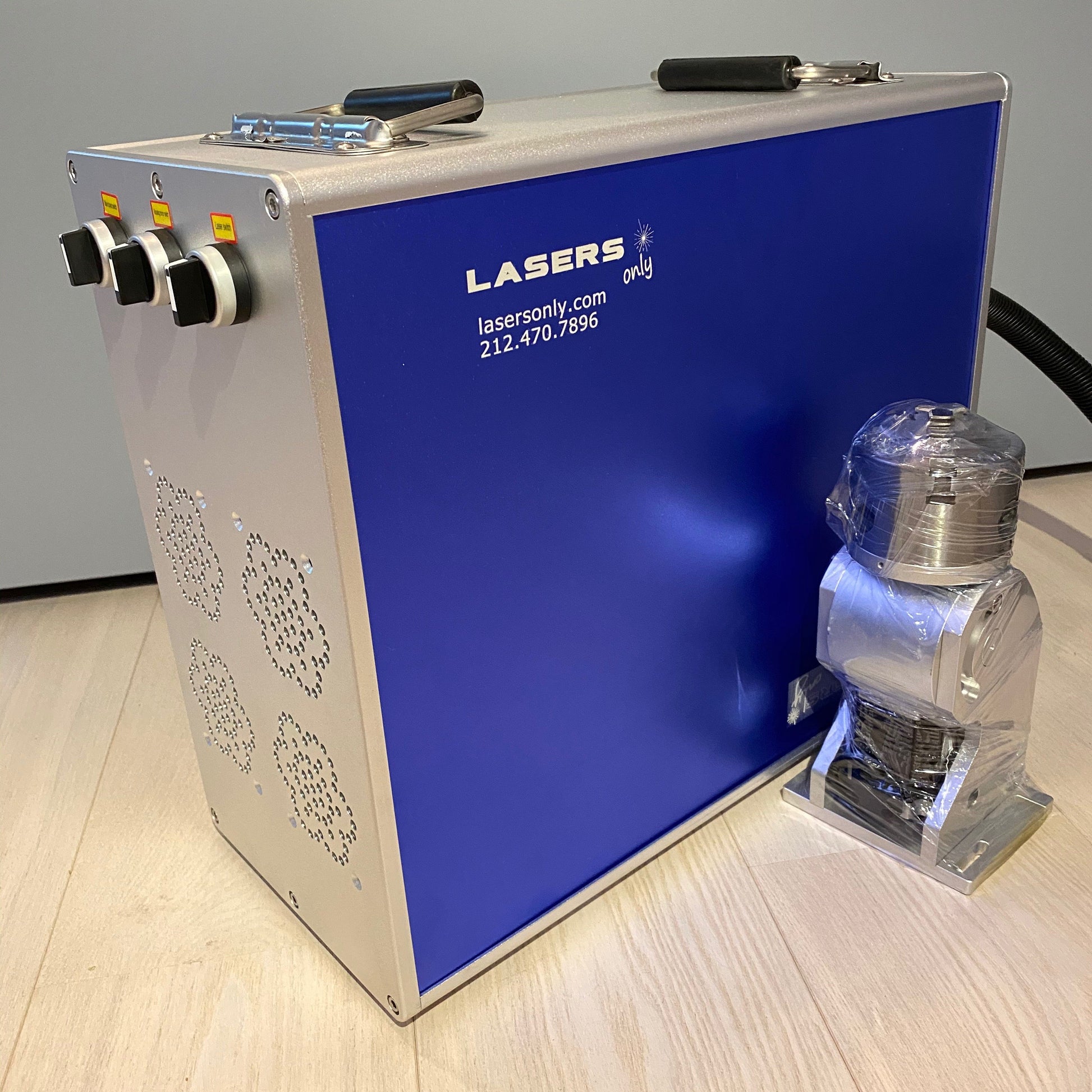

• Easy Plug-and-Play Installation: Just connect the rotary tool to the dedicated port on your fiber laser machine and configure the settings in your software to get your marking project started

• Powerful Operation: Our chuck rotary axis uses a 2-phase stepper motor to provide precise positioning and smooth motion for efficient operation; the aluminum and stainless steel construction ensures lasting corrosion resistance

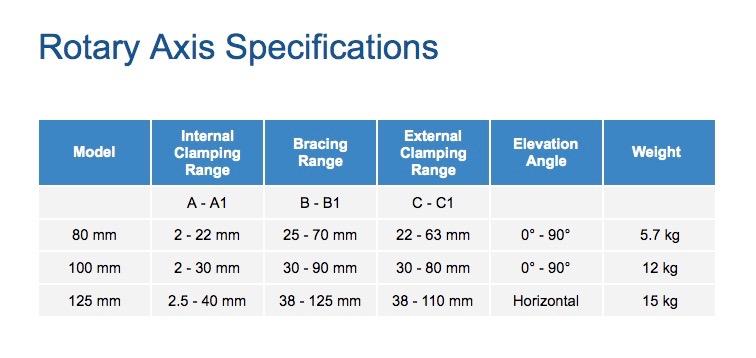

R125 Specifications -

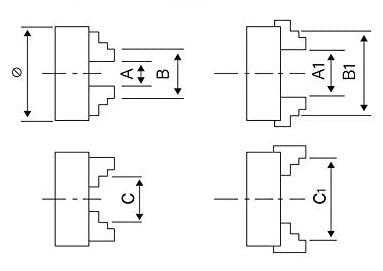

Internal Clamping Range A(A-A1) 2.5-40 mm / 0.1" - 1.6"
Chuck Diameter: 125 mm / 4.9”
Chuck Clamping Range B(B-B1): 38-110 mm / 1.5"-4.3”
External Clamping Range C(C-C1) 38-125 mm / 1.5" - 4.9"
Elevation Angle 0°-90°
Power 24 Volts
4-pin Aviation Plug
Dimensions 11” x 7” x 5”
Weight 15 kg / 33 lb
