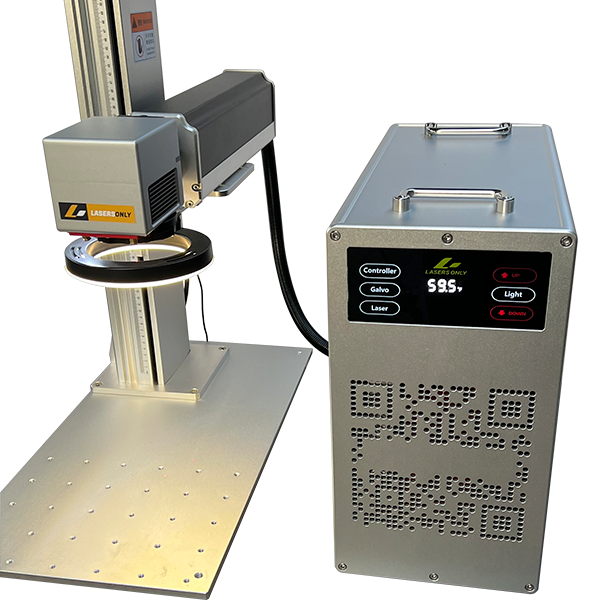

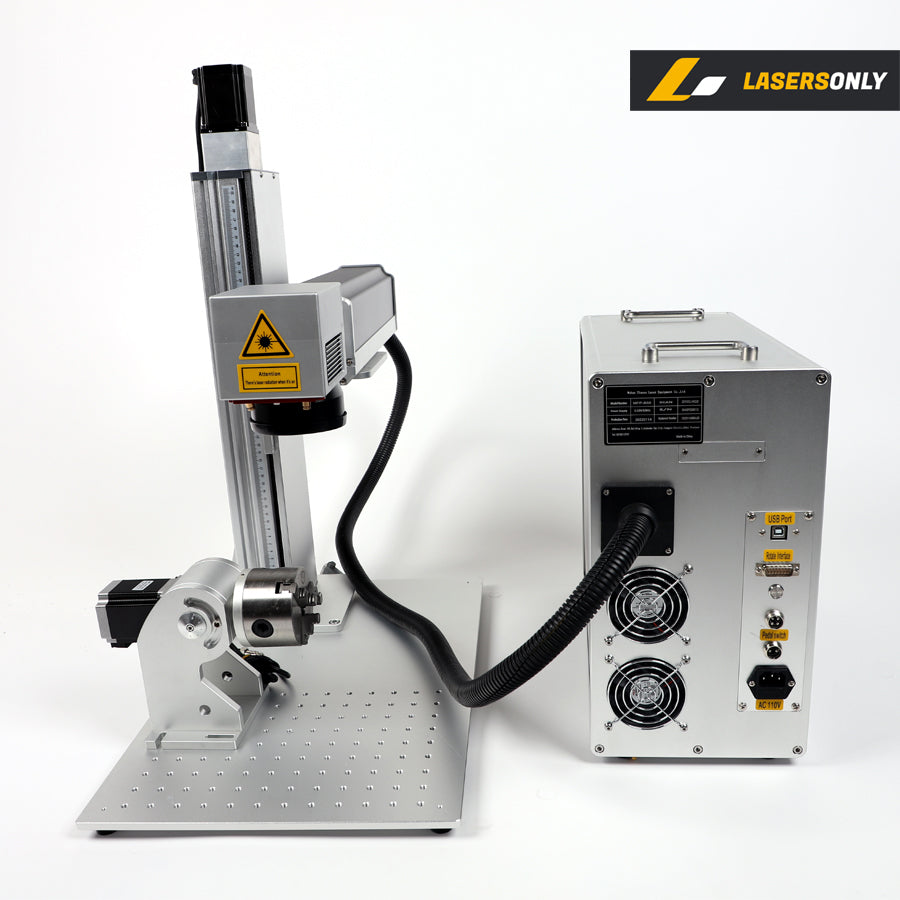

30W Fiber Laser Marking Machine JPT MOPA LP-E
Brand: Lasers Only SKU: FLMZ30JPT- Regular price
- $4,099.00
- Sale price
-
$4,099.00
$4,349.00 - Regular price
- Unit price
- per
Engineered with mobility in mind, the 30W Fiber Laser Machine in its desktop version is tailored for precision-driven tasks. Perfectly suited for applications demanding utmost accuracy, this equipment stands as an essential tool. From firearms and tools to intricate jewelry, metal parts, and even barcodes, serial numbers, and nameplates, the 30W Laser Engraver swiftly and permanently engraves with finesse. Notably, the machine is equipped with a motorized Z-Axis, enhancing its versatility and functionality.
Engineered with mobility in mind, the 30W Fiber Laser Marking Machine in its desktop version is tailored for precision-driven tasks. Perfectly suited for applications demanding utmost accuracy, this equipment stands as an essential tool. From firearms and tools to intricate jewelry, metal parts, and even barcodes, serial numbers, and nameplates, the 30W Laser Engraver swiftly and permanently engraves with finesse. Notably, the machine is equipped with a motorized Z-Axis, enhancing its versatility and functionality.
Components
| Laser Source | 30W JPT MOPA LP-E |

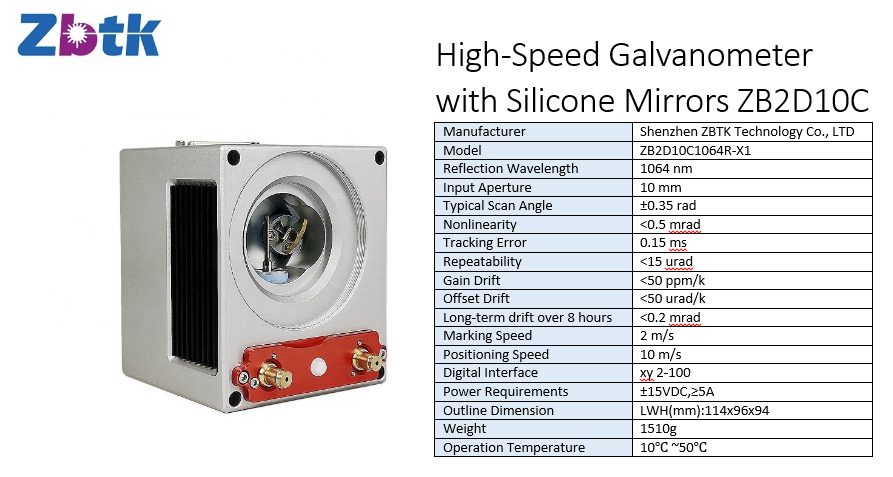

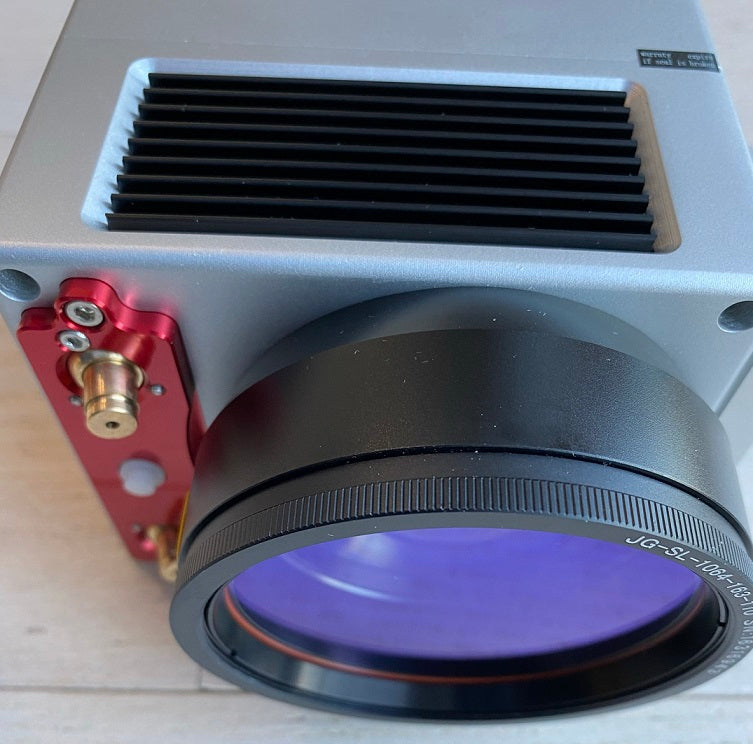

| Galvanometer | High-Speed ZBTK with Silicon Mirrors |

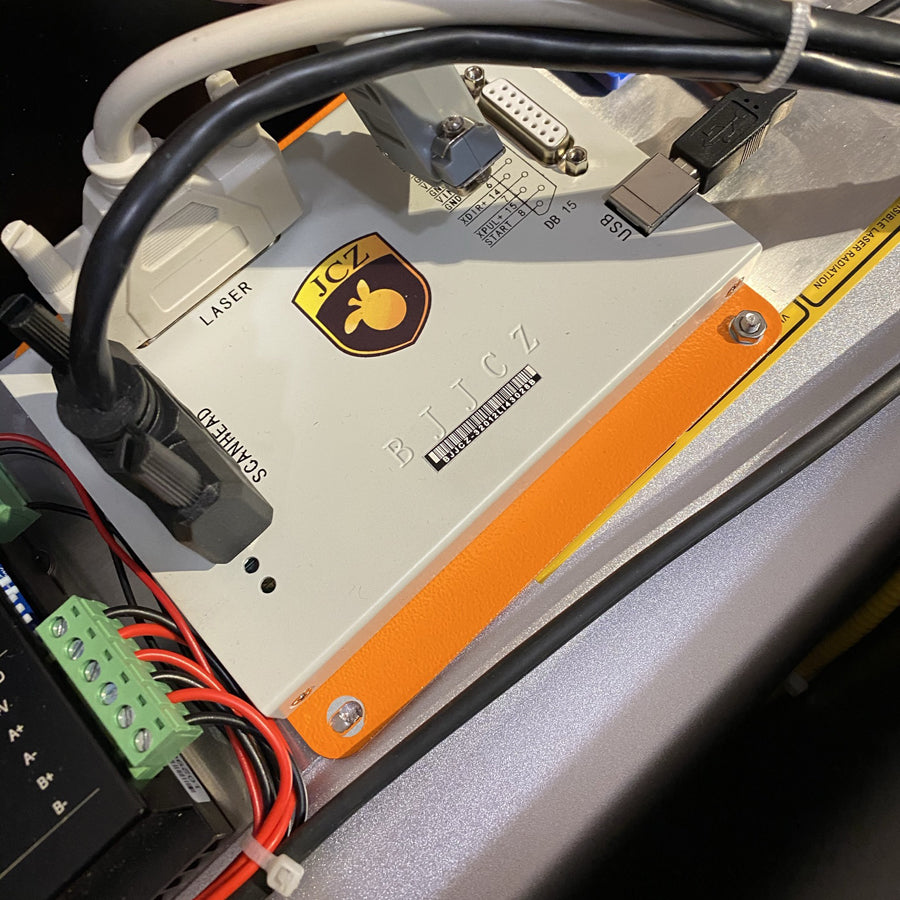

| Control Board | Original BJJCZ LMC-V4 |
| Power Supplies | MeanWell 5V, 15V, 24V |
| Software | EZCAD2 LITE for Windows OS versions XP, Vista, 7, 10 & 11 |
| Dual Red Dot Device | Easy focusing for two lens sizes |
| Z-Axis Control | Motorized |

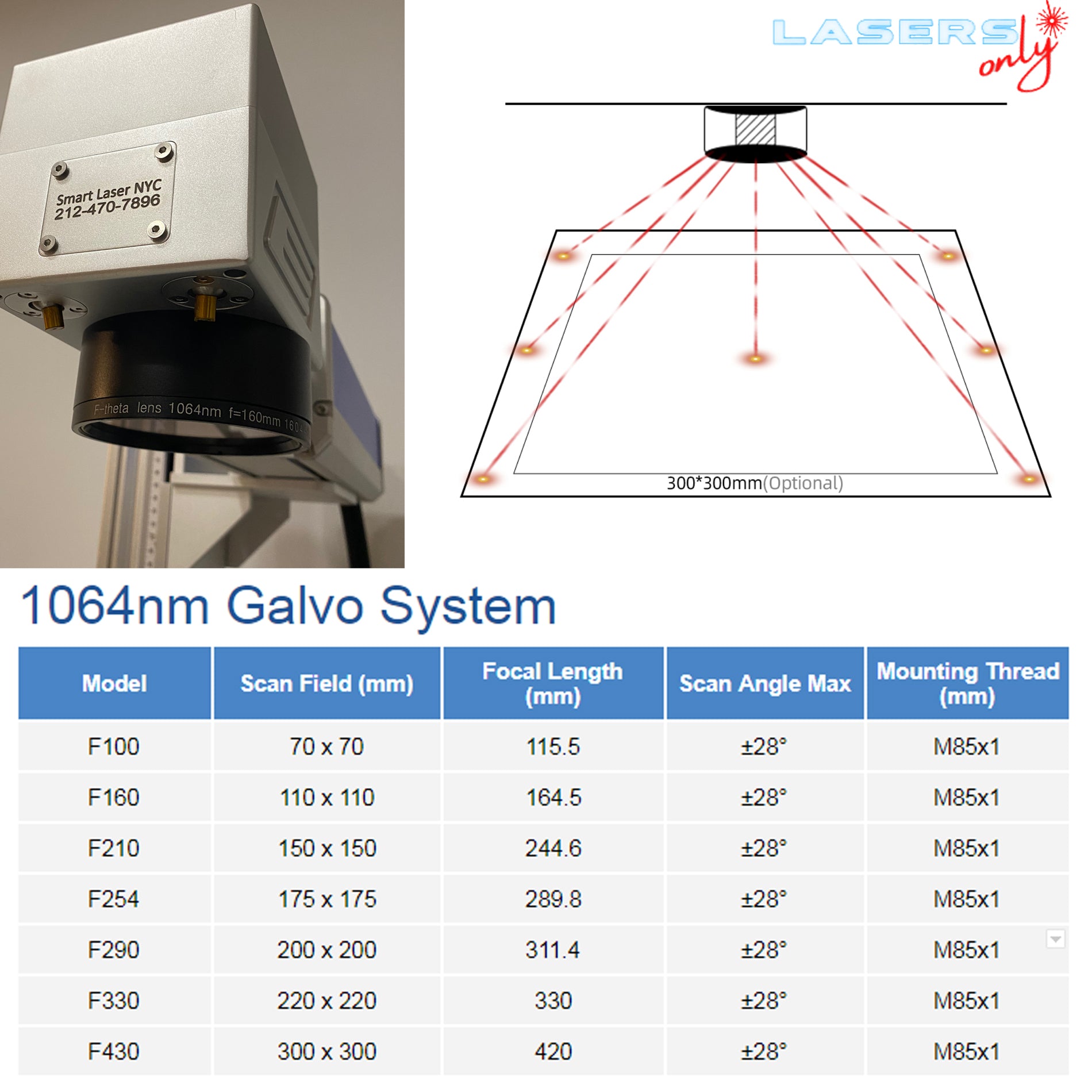

| F-Theta Field Lens | F160 working area 110 x 110 mm Focal Length 163 mm |
| EXTRA Lens* |
F430 working area 300 x 300 mm Focal Length 420 mm |
Features
-
High-quality, JPT MOPA M7 laser source, with a wide range of frequencies (1-4000 kHz) and adjustable pulse width, which allows engraving in color on metals
-
Compact and portable, the desktop model has a small footprint, and you can easily transport the machine to the worksite if need be.
-
Flexible, the open design and adjustable Z-Axis allow to work on objects of different shapes and sizes up to 30" in height.
-
Practical, dual red dot easy focusing device for two lens sizes and work area LED lights.
-
Easy operation with EZCAD2 software; EZCAD supports all standard design file formats AI, DXF, DST, PLT, BMP, JPG, GIF, TGA, PNG, TIF, etc.
-
2-year manufacturer warranty. Online technical support. EZCAD video tutorials in English. Check the Q&A section for Installation Instructions.
-
LIMITED TIME OFFER 1: an EXTRA LENS of your choice with a fiber laser machine purchase. Would you please leave a note at checkout or email us at support@lasersonly.com? We will ship F430 (300 x 300 mm) and F160 (110 x 110 mm) if no lens sizes are requested.
-

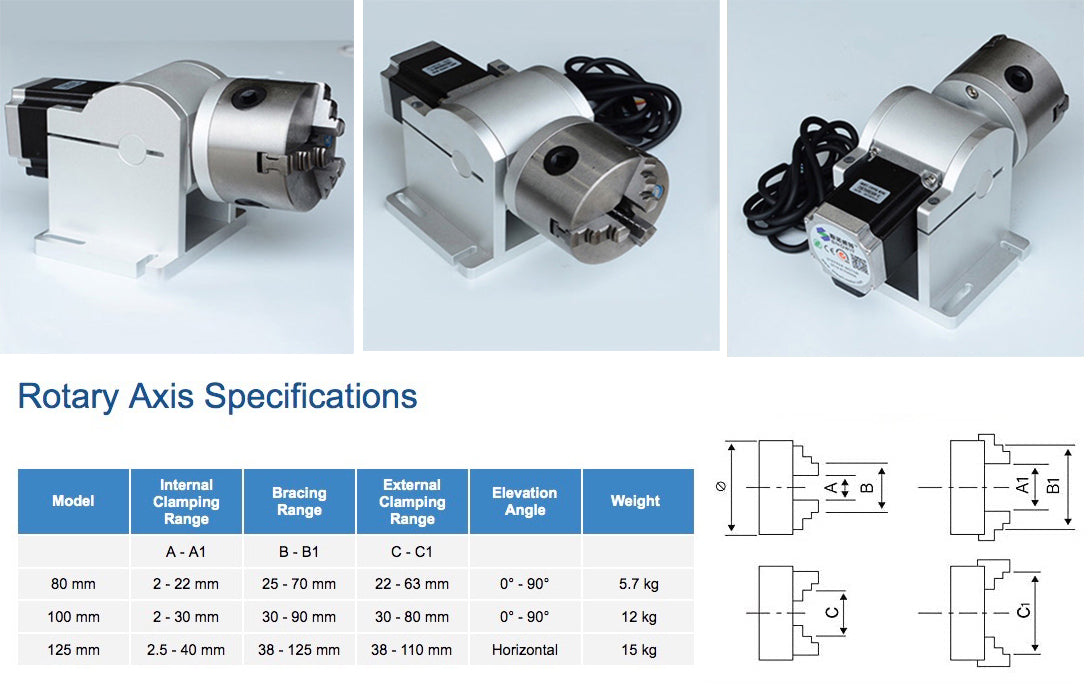

LIMITED TIME OFFER 2: 30% OFF Rotary Axis with a fiber laser machine purchase. Please use discount code ROTARY at the checkout.
Download technical specifications
Customer Reviews
Arrived today, set it up and already using it. Andrew is excellent to work with. Will definitely be contacting him when I'm ready for the next laser ... or lens!!
I was scared of buying a laser direct from China, so I found lasersonly and Andrew was very helpful and in the United States
Laser shipped very quick and I've been happy with it for about a year now!
This is my first laser engraver, and I'm glad I decided to go with Lasersonly after my extensive research period before purchase. Great support. Great hardware.
I bought the 30w JPT after months of research into fiber lasers and sellers. LasersOnly came highly recommended from a few peers and I can see why. Not only did everything show up perfectly and timely, they do all of the setup work for you. My thumb drive already had instances of EZCad prepared for both lense sizes my machine was sent with as well as the focusing lasers set to the appropriate heights for said lenses. Everything was extremely straight forward and transparent and I’ll be giving them my business again soon when it’s time to get my next unit.
Andrew and the crew are great to work with. They'll have you engraving and etching in no time.
Only thing I'll change is planning to upgrade to better software than EZcad in the near future.
Marking Machine Characteristics
30W Fiber Laser
Marking Machine Characteristics
Product Description
30 Fiber Laser Machine Product Specification
| Laser Source | 30W JPT MOPA LP-E |
| Galvanometer | High-Speed ZBTK with Silicon Mirrors |
| Control Board | Original BJJCZ LMC-V4 |
| Power Supplies | MeanWell 5V, 15V, 24V |
| Software | EZCAD2 for Windows OS versions XP, Vista, 7 & 10 |
| Dual Red Dot Device | Easy focusing for 2 lens sizes |
| Z-Axis Control | Motorized |
| F-Theta Field Lens | F160 working area 110 x 110 mm Focal Length 163 mm |
| EXTRA Lens* | F430 working area 300 x 300 mm Focal Length 420 mm |

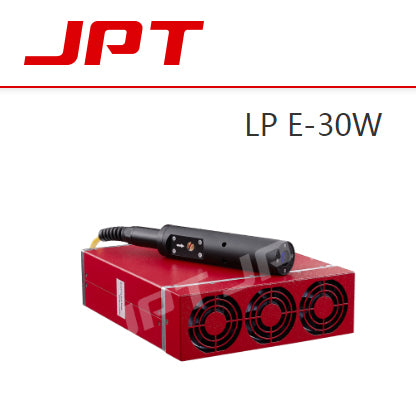

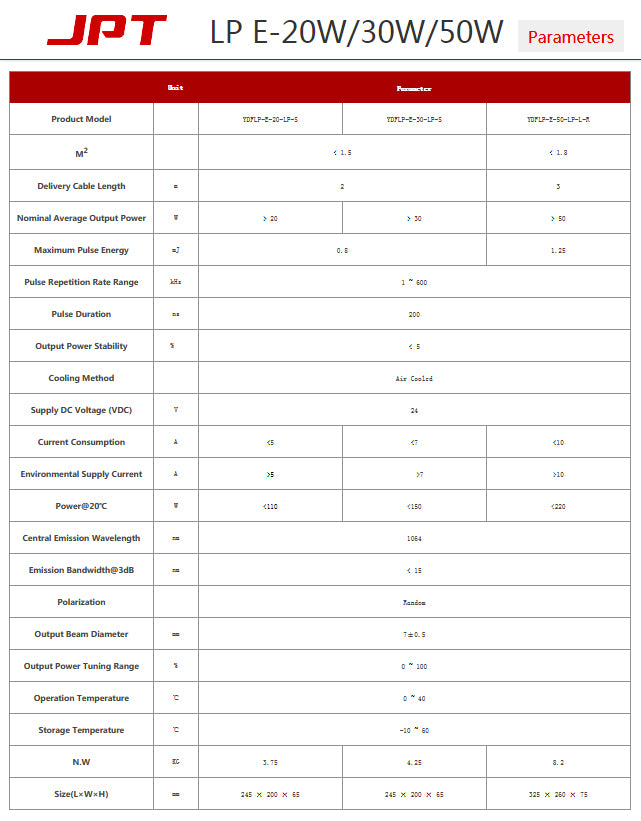

30w Fiber Laser Source: Technical Parameters
| Product Model | YDFLP-E-30-LP-S | |
| Beam Quality Factor | M | < 1.5 |
| Cable Length | m | 2 |
| Nominal Power | W | > 30 |
| Max Pulse Energy | mJ | 0.8 |
| Repetition Rate | kHz | 1 ~ 600 |
| Pulse Duration | ns | 200 |
| Power Stability | % | < 5 |
| Cooling Method | Air Cooled | |
| Supply DC Voltage | VDC | 24 |
| Current Consumption | A | < 7 |
| Environmental Supply Current | A | > 7 |
| Power@20℃ | W | < 150 |
| Emission Wavelength | nm | 1064 |
| Emission Bandwidth@3dB | nm | < 15 |
| Polarization | Random | |
| Output Beam Diameter | mm | 7±0.5 |
| Power Tunability | % | 0 - 100 |
| Operation Temperature | ℃ | 0 - 40 |
| Storage Temperature | ℃ | -10 - 60 |
| Weight | KG | 4.25 |
| Size (L×W×H) | mm | 245 × 200 × 65 |
