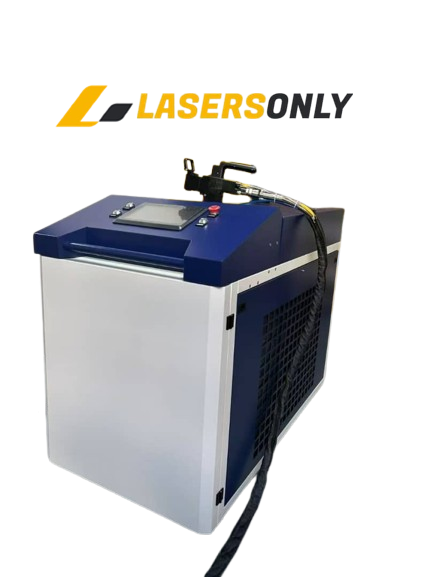

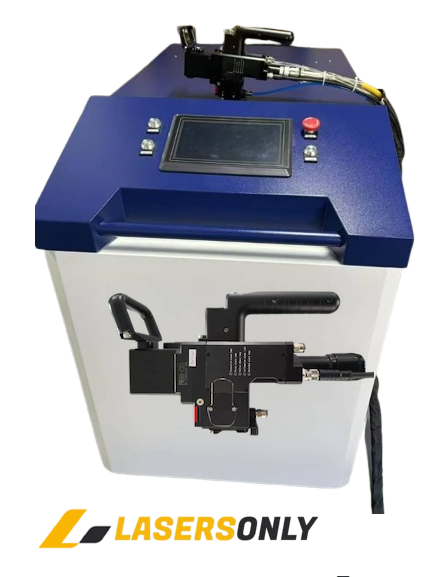

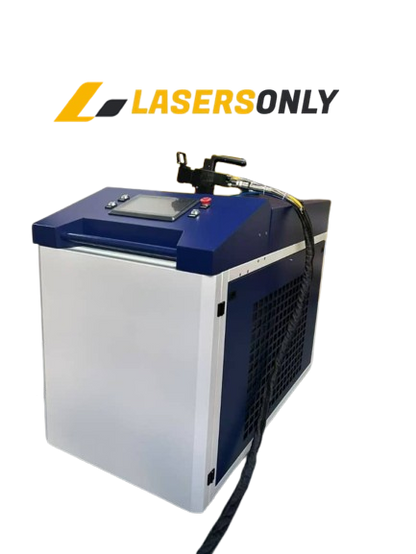

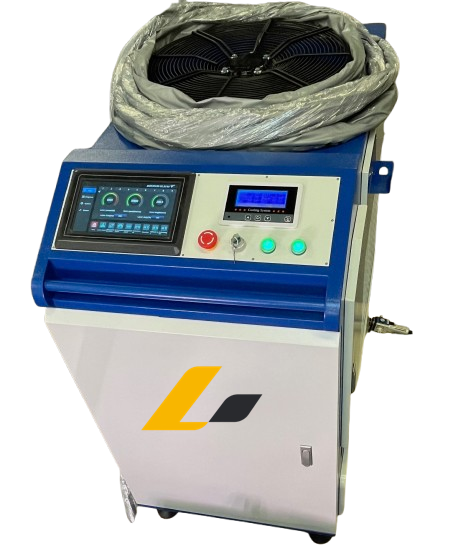

CW 6000W Handheld Laser Cleaning Machine
CW 6000W Handheld Laser Cleaning Machine
Get it by
Couldn't load pickup availability
Call us to learn more at (212) 470-7896
Product Description
Product Description

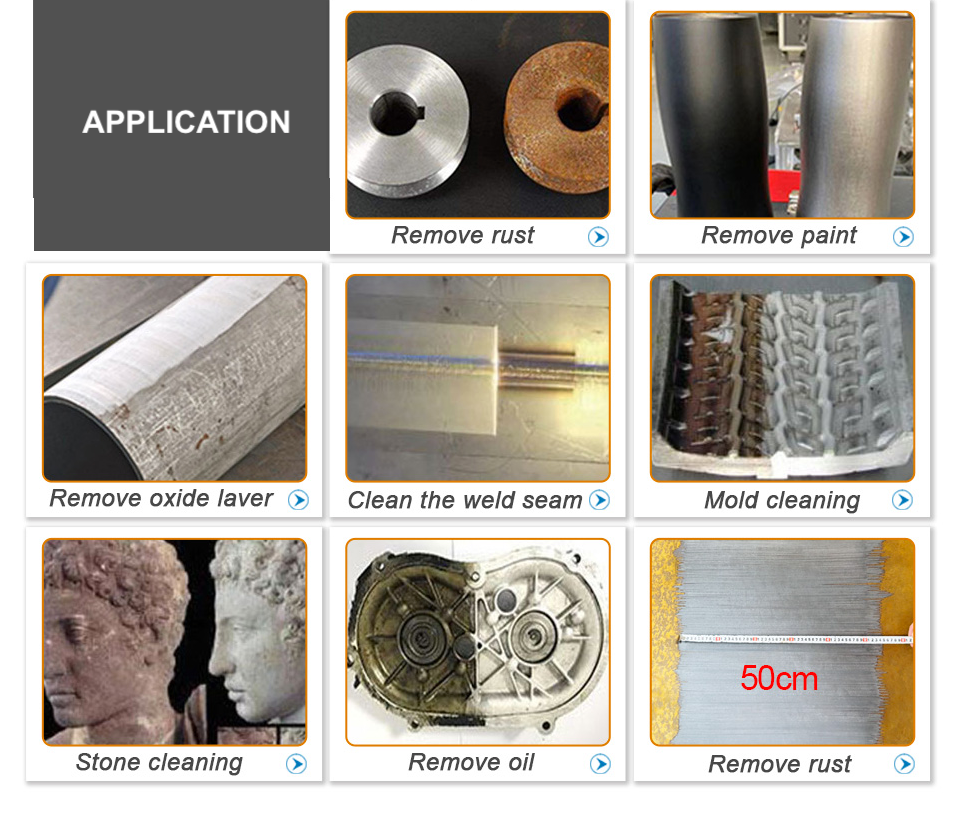

The 6000W continuous-wave laser cleaning system is a modern, high-tech, high-speed machine for surface cleaning. The laser cleaning equipment is ideal for all types of surfaces. It easily removes rust from metal products, layers of paint, varnish, and other coatings or deposits. The surface is degreased, and the effects of oxidation and carbon deposits are removed. The speed of a continuous wave cleaning machine is several
times faster than that of a pulsed laser.
This machine can clean a square meter of surface in a minute. A wide range of settings allows laser cleaning in various fields. Cleaning can be carried out at any angle in the most inaccessible places, enabling you to extend the life of structures of different types of metals. Laser cleaning doesn’t use any consumables, such as sand, other abrasives, or chemicals, and no special workshop or metal cabinet is required. After cleaning, only the destroyed particles (dust) of the cleaned "foreign" layer remain. The worker does not need to wear a special protective suit while working with the equipment, and no mechanical post-treatments are required after cleaning.

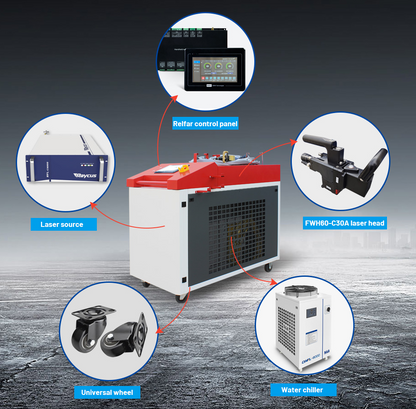

The machine comes with a transformer (step-down from 480V or step-up from 220V to 380V, 3-phase) and an air compressor equipped with an air filter, which keeps the air free of moisture and contaminants, thereby extending the life of the lenses.

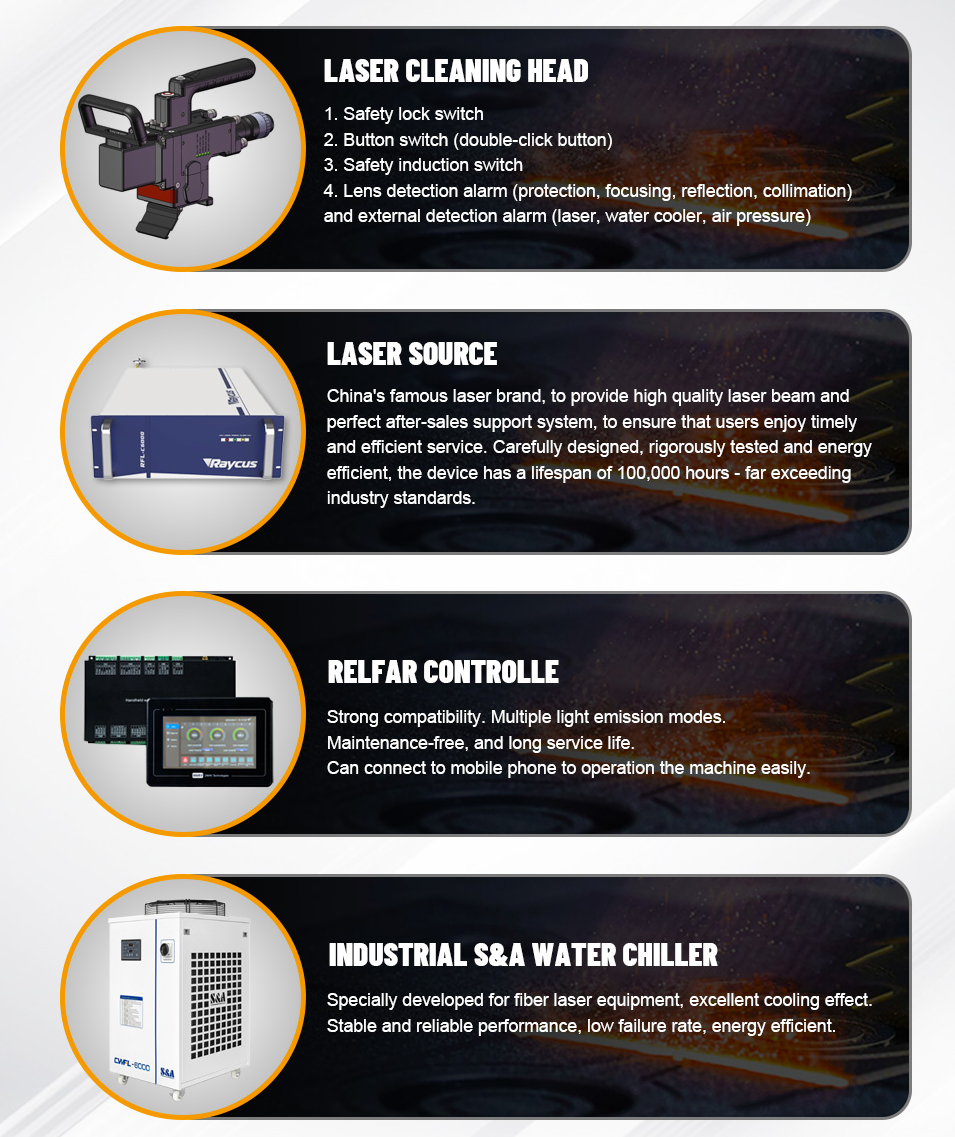

Laser Source: RAYCUS RFL-C6000S-CE

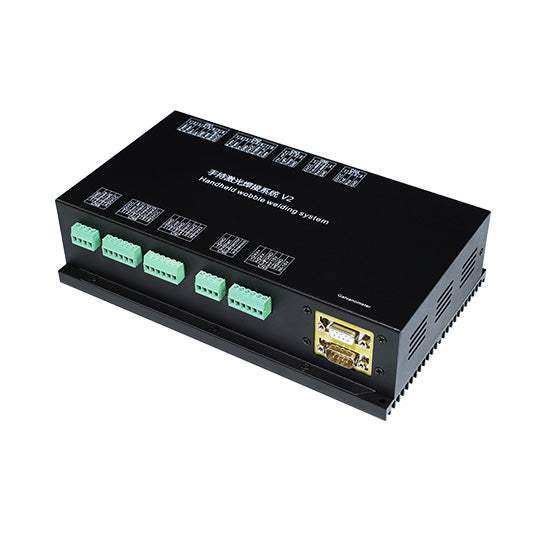

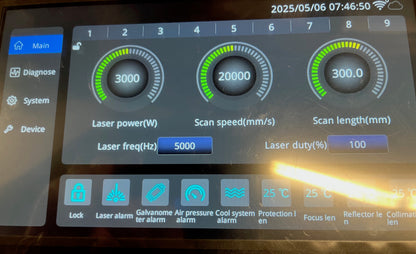

Controller/Laser Gun: RelFar FWH60-C30A
Free USA Shipping / 2-year Product Warranty / USA Customer Support
Contact us to get the best deal!
Shipping & Returns
Shipping & Returns
Free USA Shipping
We stock the most popular machines in our warehouse in Jersey City, NJ.
We ship equipment on the same or the next day after receiving the order. We inspect the package and test the laser before sending it out to the customer.
We ship by UPS Ground service or Fedex. Coast-to-coast shipping usually takes 4-5 days.
30-Days Return Policy
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can contact us at support@lasersonly.com. If your return is accepted, we’ll send you instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
The customer is responsible for expenses associated with return shipping.
- Free US Shipping
- 2-Year Warranty
- Lifetime Support
| Parameter | Value |
|---|---|
| Output Power | 6000 W |
| Power Supply | 380V 3-phase |
| Laser Source | RAYCUS RFL-C6000S-CE |
| Operating Mode | Continuous Wave |
| Laser Wavelength | 1080 nm |
| Cooling Method | Water Chiller |
| Laser Frequency | Up to 20,000 Hz |
| Scan Width | Up to 500 mm |
| Focal Length | 1500 mm |

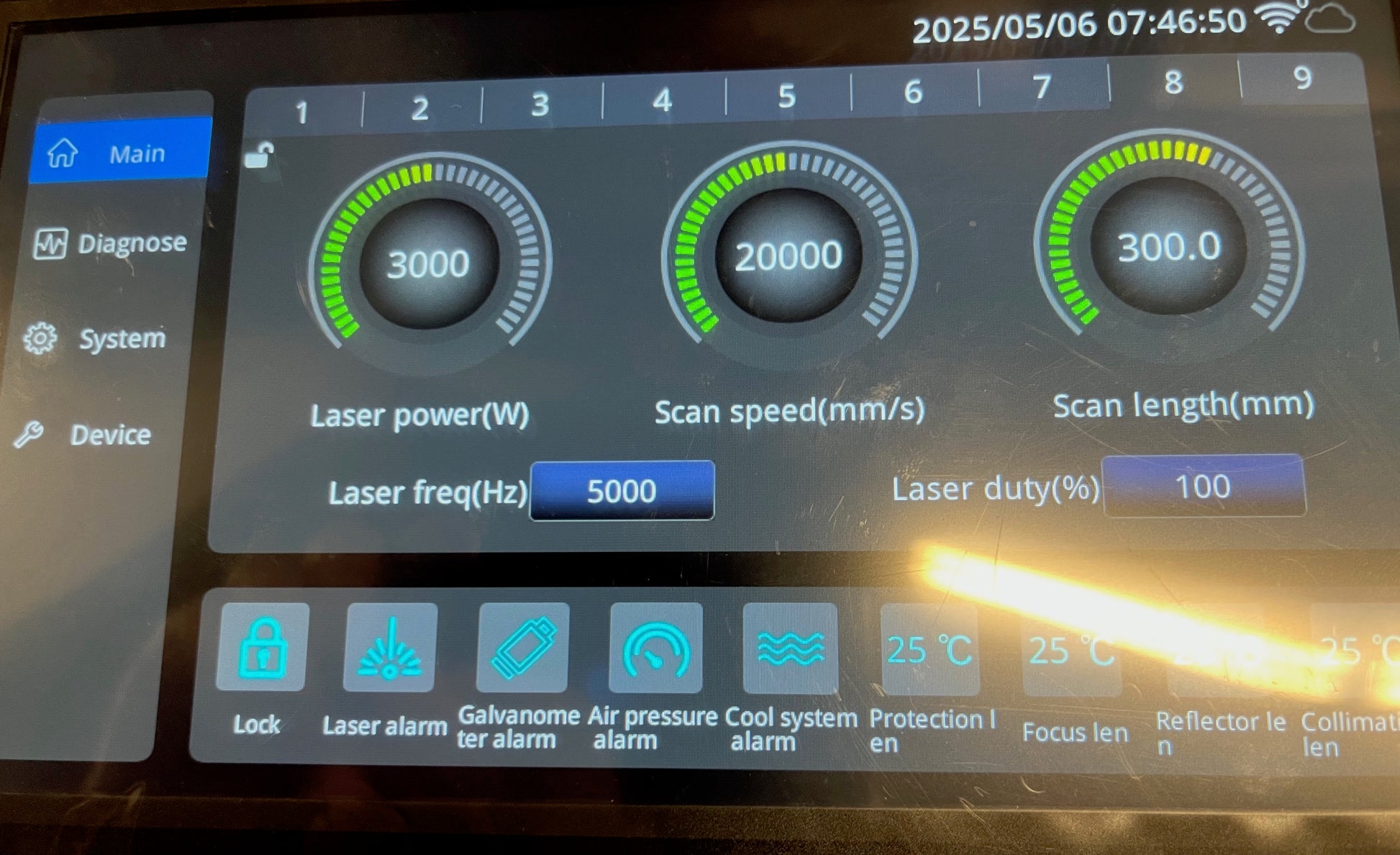

| Control System | Ruida |
| Scanner Model | RelFar FWH60-C30A |
| Operating Humidity | 30–70 % |
| Operating Temperature | 5–40 °C |
| Machine Size | 48” × 28” × 52” |
| Packing Size | 51” × 33” × 58” |
| Weight | 370 kg |
| Laser Gun Weight | 2.2 kg |
| Fiber Cable Length | 8 m |
| Model | RFL-C6000S-CE |
|---|---|
| Optical Characteristics | |
| Output Power (W) | ≤ 6000 W |
| Operation Mode | CW / Modulated |
| Polarization State | Random |
| Power Range (%) | 10 ~ 100 |
| Central Wavelength (nm) | 1080 ± 5 nm |
| Output Power Instability (%) | ± 1.5 |
| Modulation Frequency (Hz) | 1 ~ 20,000 |
| Red Laser Output Power (mW) | 1 ~ 3 |
| Optical Output Characteristics of QBH Head | |
| Beam Quality (mm×mrad) | M² < 2.7 ~ 3.1 |
| Core Fiber (µm) | 75 |
| Delivery Cable (m) | 20 |
| Electrical Characteristics | |
| Power Supply | 3-phase 380 V |
| Max. Power Consumption (W) | 10000 |
| Control Mode | RS-232 / AD / Ethernet |
| Other Characteristics | |
| Dimensions (W×H×D) (mm) | 455 × 802 × 168 |
| Weight (kg) | 70 |
| Operating Ambient Temperature (°C) | 10 ~ 40 |
| Humidity (%) | < 70 |
| Storage Temperature (°C) | -10 ~ 60 |
| Cooling Method | Water Cooling |

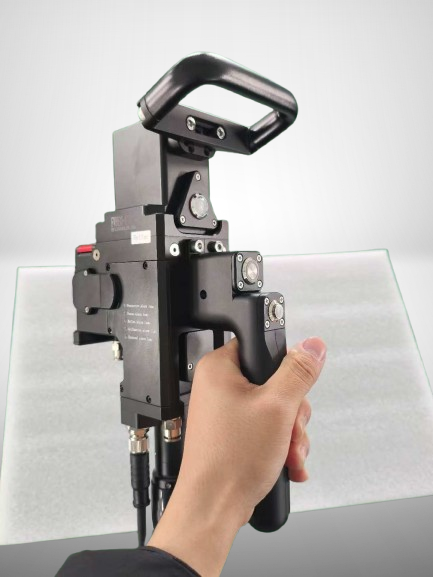

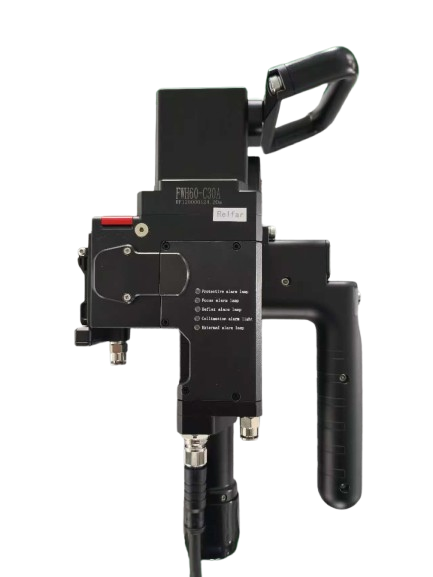

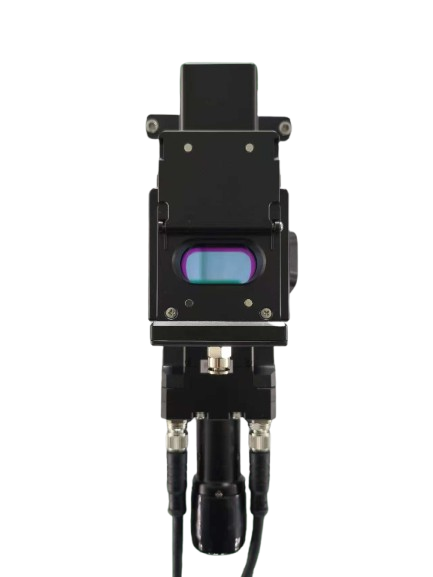

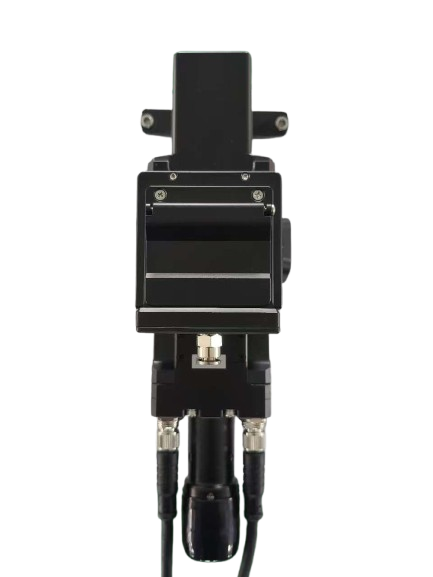

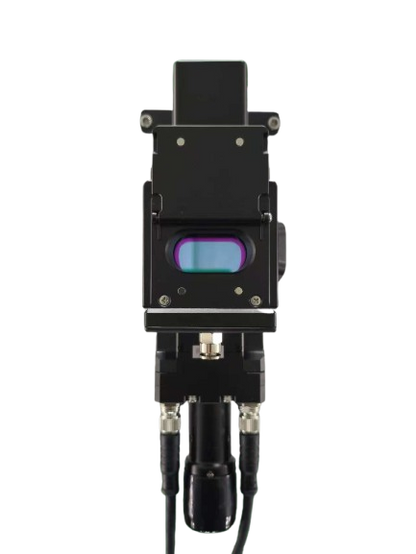

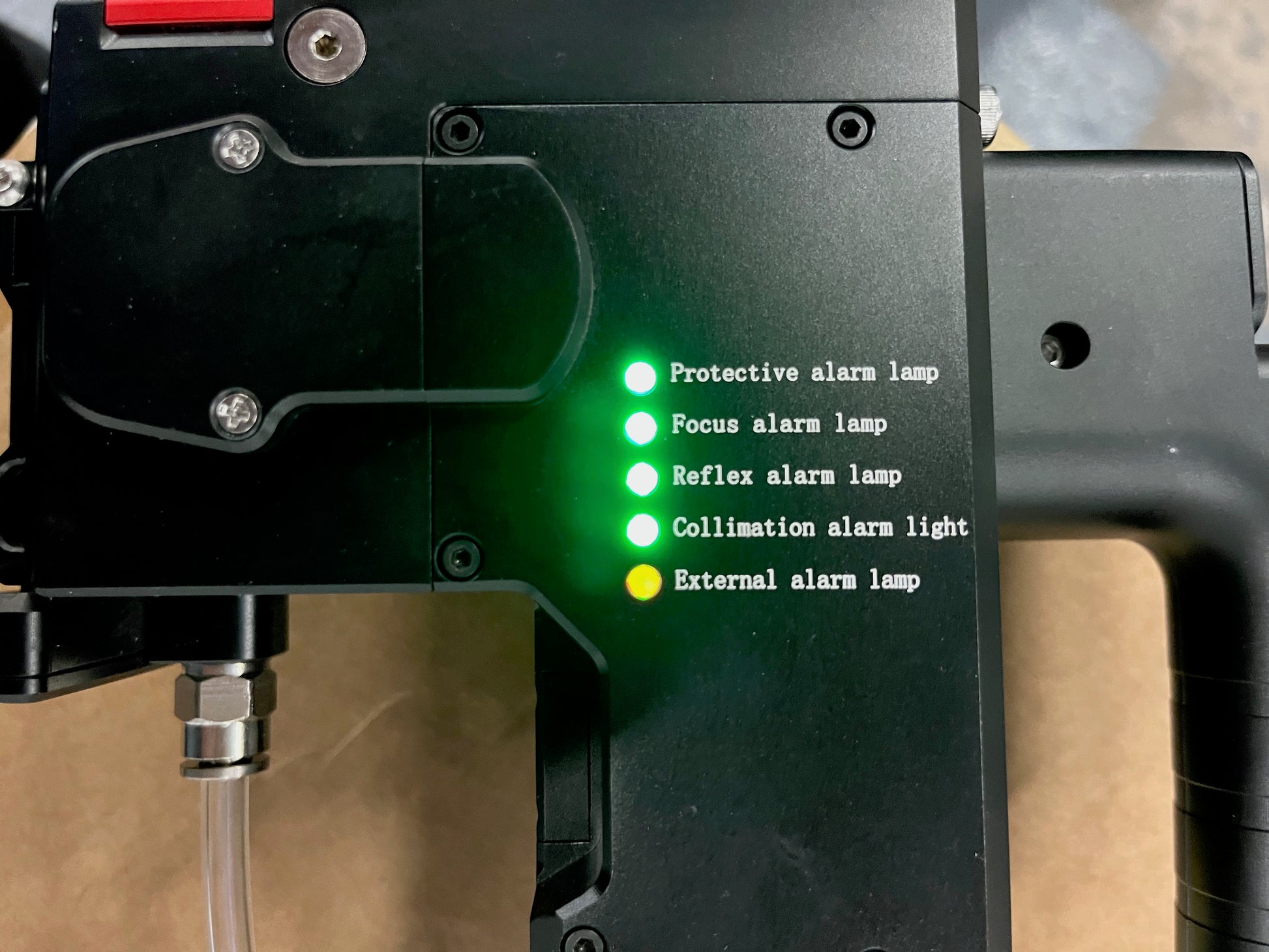

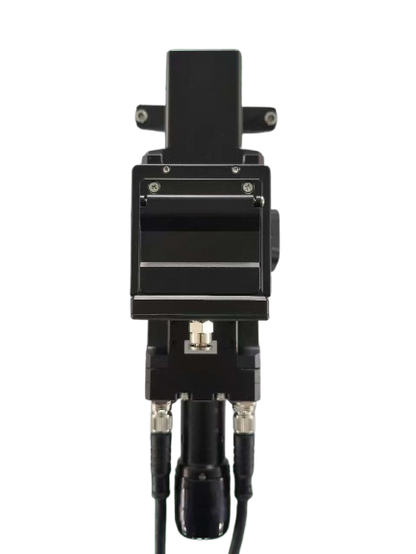

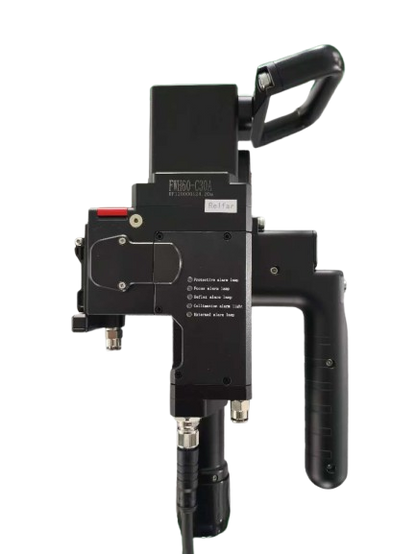

| Product | Smart Handheld Cleaning Gun |
|---|---|
| Model | FWH60-C30A |
| Fiber Interface | QBH |
| Wavelength Range | 1080 ± 5 nm |
| Rated Power | ≤ 6000 W |
| Collimated Focal Length | 75 mm |
| Focal Length | 1500 mm |
| Scanning Width | 200 – 500 mm |
| Scanning Speed | 40,000 mm/s |
| Auxiliary Pressure | ≥ 0.5 ~ 0.8 MPa |
| Effective Clear Aperture | Ø 20 mm |
| Gun Weight | 2.2 kg |
