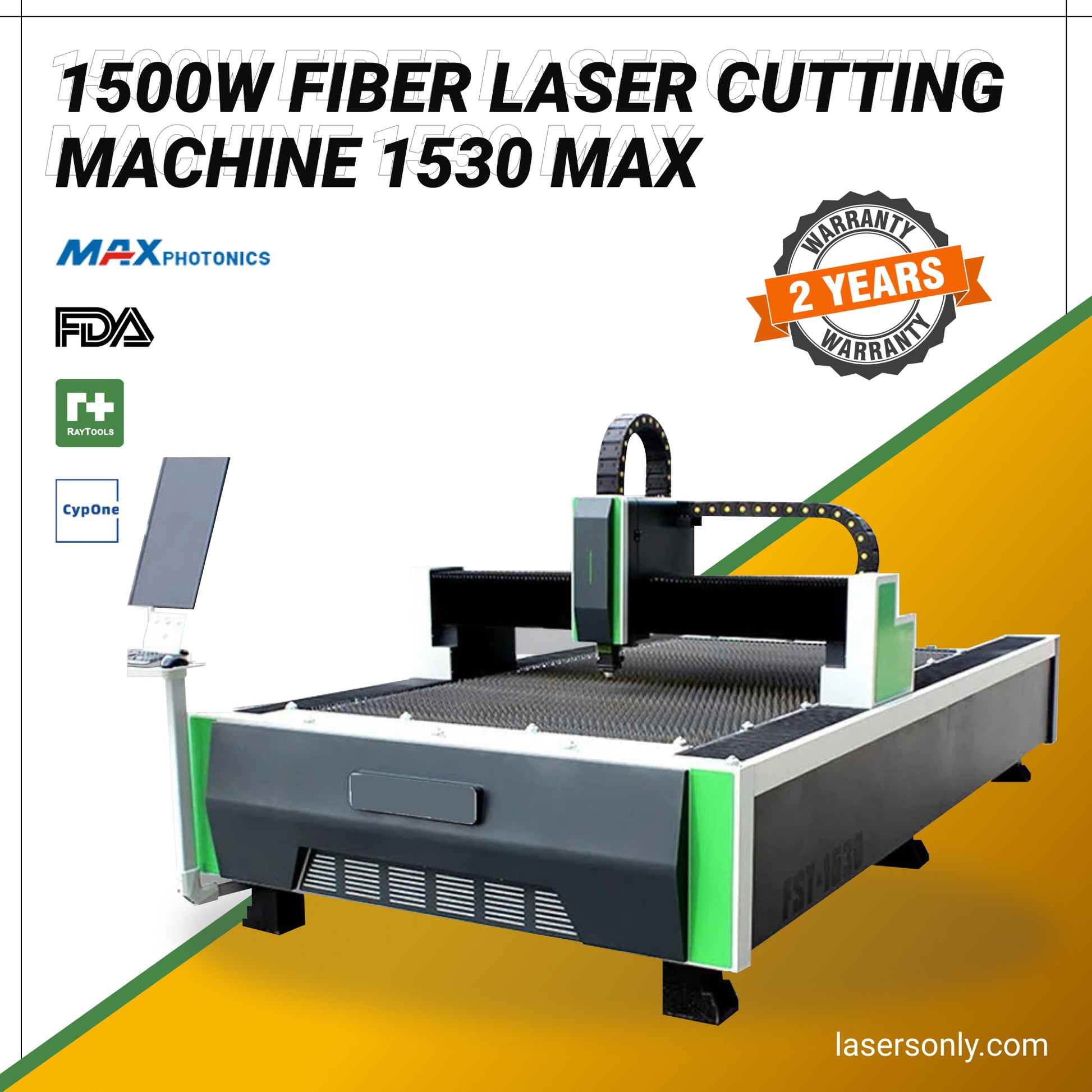

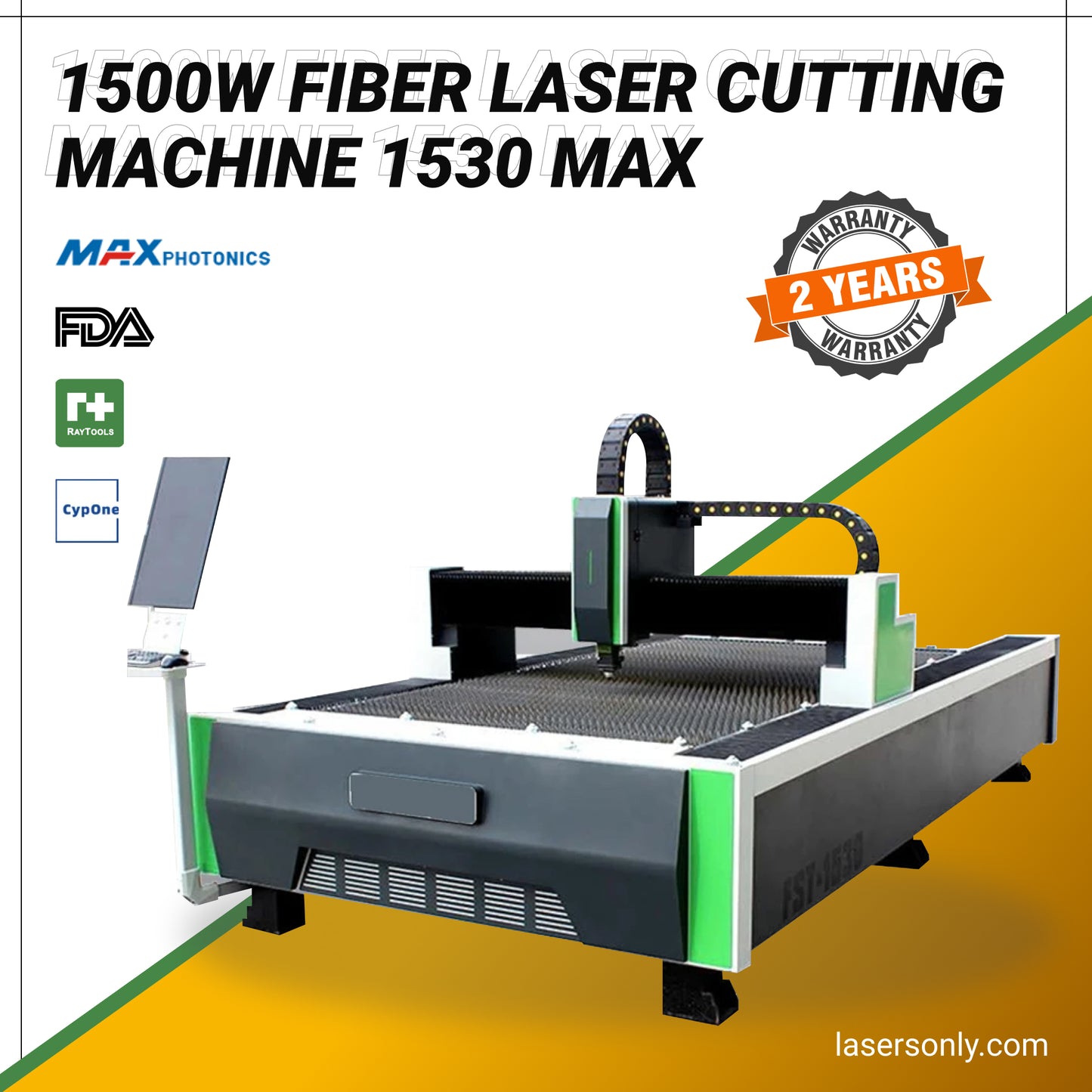

1500W Fiber Laser Cutting Machine 1530 MAX
1500W Fiber Laser Cutting Machine 1530 MAX
1500W Fiber Laser Cutting Machine 1530 MAX
1500W Fiber Laser Cutting Machine 1530 MAX
1500W Fiber Laser Cutting Machine 1530 MAX
  • Load image into Gallery viewer, 1500W Fiber Laser Cutting Machine 1530 MAX
  • Load image into Gallery viewer, 1500W Fiber Laser Cutting Machine 1530 MAX
  • Load image into Gallery viewer, 1500W Fiber Laser Cutting Machine 1530 MAX
  • Load image into Gallery viewer, 1500W Fiber Laser Cutting Machine 1530 MAX
  • Load image into Gallery viewer, 1500W Fiber Laser Cutting Machine 1530 MAX

1500W Fiber Laser Cutting Machine 1530 MAX

Brand: MAXphotonics SKU: 1500FLC-1530
Regular price
$48,000.00
Sale price
$48,000.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Short description

FLC-1530 is a 5' x 10' flatbed laser cutting machine for sheet metal. Our machines are built for high speed and precision. Fiber Laser Cutters are must-have equipment for sheet metal fabricators thanks to their fast cutting speed and accuracy, low operating cost, and low maintenance.


Request Info
More payment options

FREE Shipping
2-Years Warranty
FDA Compliant
Software INCLUDED
Install Training INCLUDED
Premium Support
Ask us anything
Call us at: +1212-470-7896

FLC-1530 is a 5' x 10' flatbed laser cutting machine for sheet metal. Our machines are built for high speed and precision. Fiber Laser Cutters are must-have equipment for sheet metal fabricators thanks to their fast cutting speed and accuracy, low operating cost, and low maintenance. Our machines are built by a reliable hi-tech manufacturer of laser equipment in China with years of experience in the laser industry. The structural components are made with modern, sophisticated techniques and processes utilizing Chinese raw materials.   For operational parts, we use imported or local world-known brand-name components.

  • We use MAXphotonic's new generation of Single Module high power CW Fiber Lasers ranging from 500W to 8000W, producing excellent beam quality that can satisfy any precision and speed requirements.

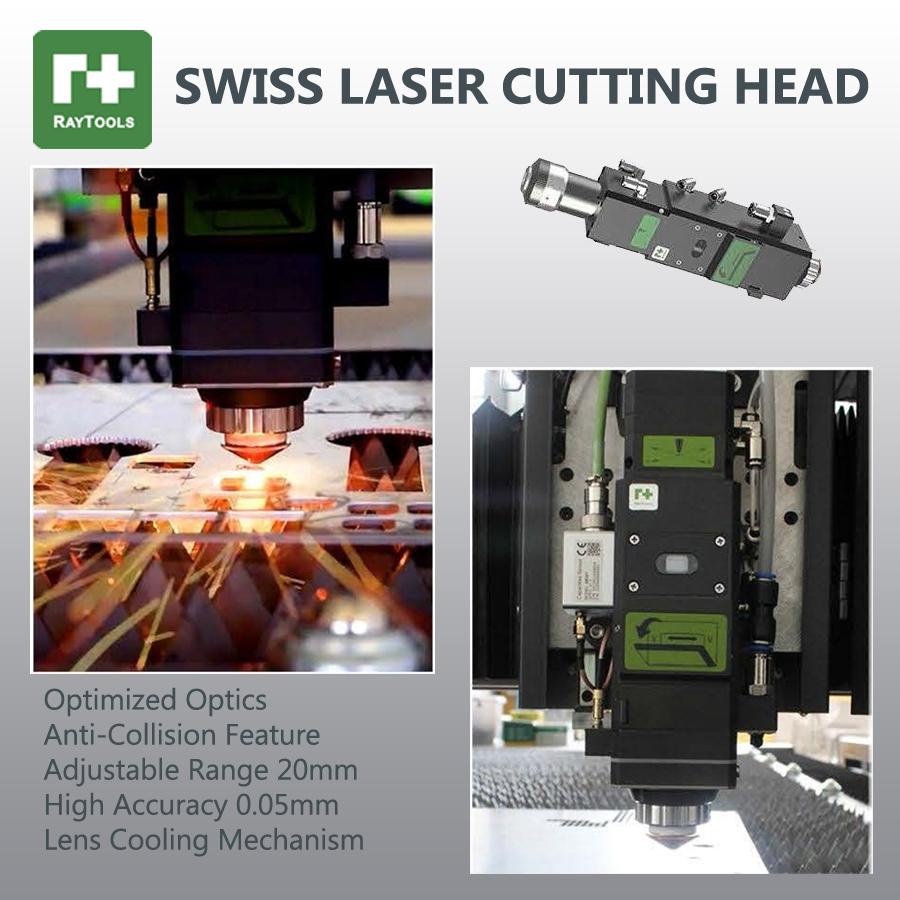

  • Laser Cutting Head by RayTools AG, a Swiss manufacturer of laser beam delivery systems. BT240S model constructed with fully enclosed beam path to decrease contamination risk and dual-water cooling circuit to collimation and focus lenses.

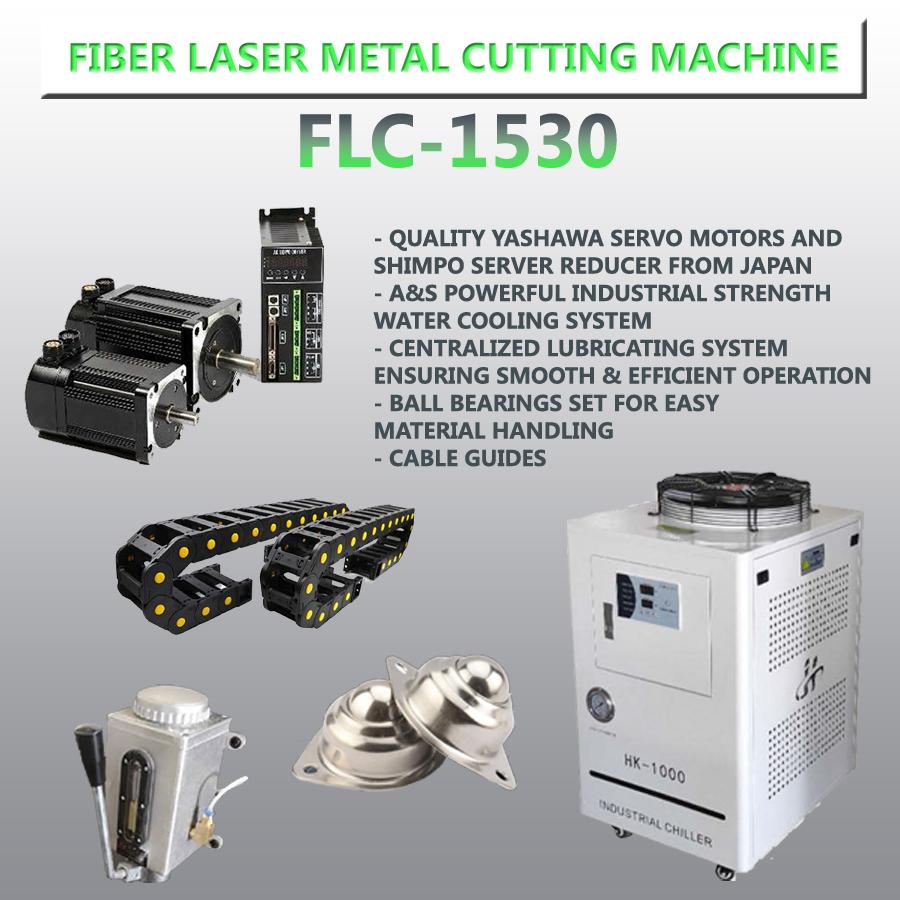

  • Yaskawa Servo Motors and Shimpo Servo Reducer from Japan offer higher performance, greater accuracy, and minimal maintenance.
  • CypCut Controller with CypOne Software is the most popular cost-effective laser cutting control software; it integrates motion control and height control unit in one.
  • Wireless Handheld Remote Control

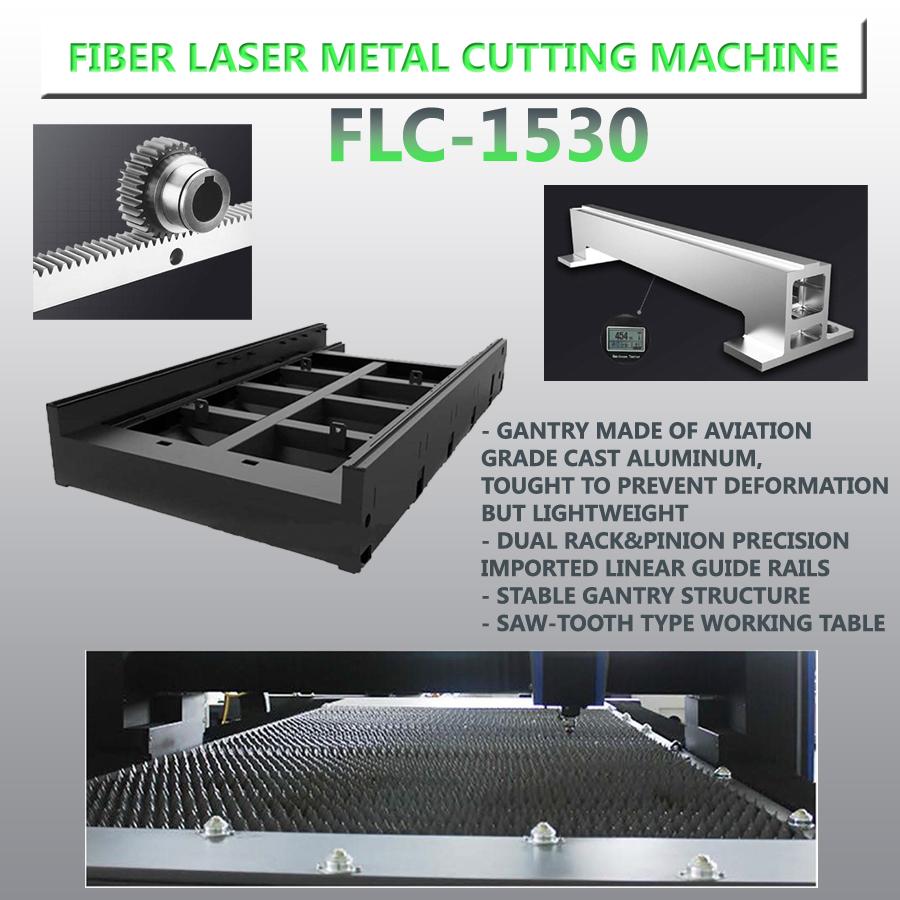

  • Gantry is made out of aviation-grade cast aluminum rigid but lightweight, tempered at high temperature to prevent deformation, and it's corrosion-resistant.
  • Imported dual rack & pinion guide rail for precision and accuracy
  • Saw-tooth type worktable 1500mm x 3000 mm (5' x 10') and a set of ball bearings for easy material handling
  • A centralized lubricating system ensuring smooth and efficient operation
  • A&S Powerful Industrial Strength Water Cooling System



Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
1500W Fiber Laser
Cutting Machine 1530 MAX
Characteristics

1500W Fiber Laser
Cutting Machine 1530 MAX
Characteristics

Product Description

We use MAXphotonic's new generation of Single Module high power CW Fiber Lasers ranging from 500W to 8000W, producing excellent beam quality that can satisfy any precision and speed requirements.
Laser Cutting Head by RayTools AG, a Swiss manufacturer of laser beam delivery systems. BT240S model constructed with fully enclosed beam path to decrease contamination risk and dual-water cooling circuit to collimation and focus lenses.
Yaskawa Servo Motors and Shimpo Servo Reducer from Japan offer higher performance, greater accuracy, and minimal maintenance.
CypCut Controller with CypOne Software is the most popular cost-effective laser cutting control software; it integrates motion control and height control unit in one.
Wireless Handheld Remote Control.
Gantry is made out of aviation-grade cast aluminum rigid but lightweight, tempered at high temperature to prevent deformation, and it's corrosion-resistant.
Imported dual rack & pinion guide rail for precision and accuracy.
Saw-tooth type worktable 1500mm x 3000 mm (5' x 10') and a set of ball bearings for easy material handling.
A centralized lubricating system ensuring smooth and efficient operation.
A&S Powerful Industrial Strength Water Cooling System.

Technical Parameters

Model FLC-1530
Working Area 1500 x 3000 mm
Fiber Laser Power 1500W
Cooling Method Water Cooling Protection System
Positioning Accuracy ±0.01 mm
Max Acceleration 1G
Compatible Software CorelDraw / AutoCAD / Photoshop / AI

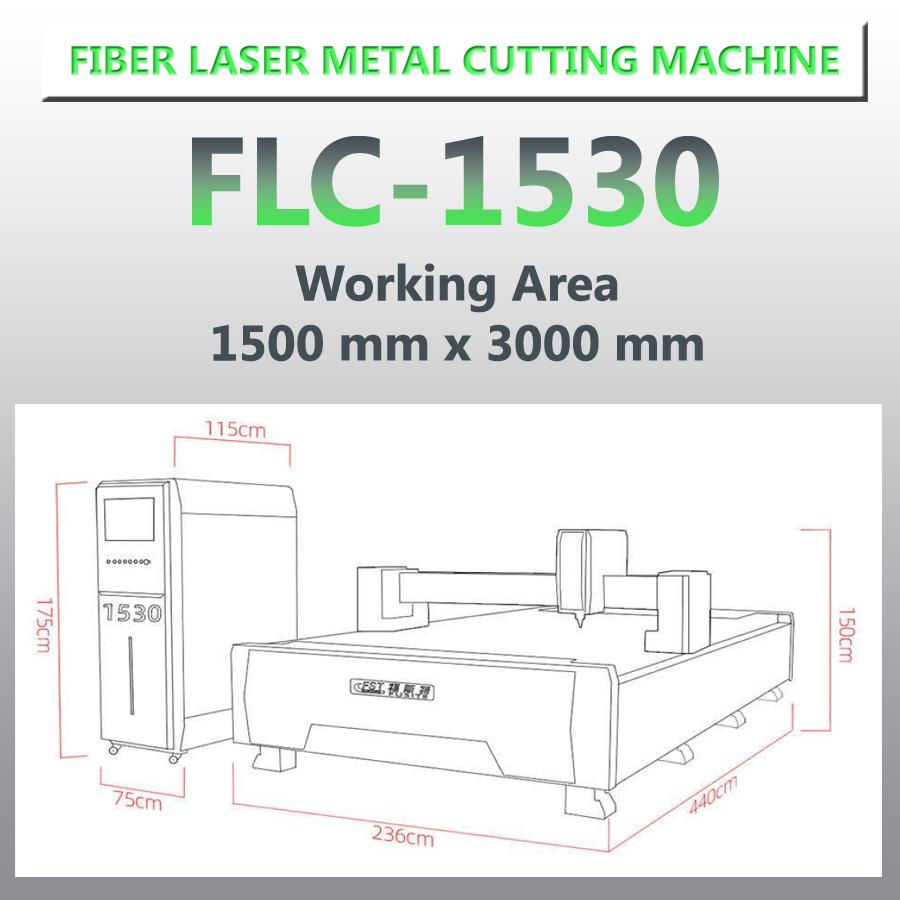

Machine Dimensions 2360 x 4400 x 1500 mm
Control Cabinet Dimensions 1150 x 1750 x 750 mm
Max Traveling Speed 110 m/min
Driver System Power X = 750W Y = 750W Z = 400W
Supported File Formats LXD/.DXF/.PLT/.AI/.Gerber/.DWG
Gross Power 17kW
Transmit System Dual Rack & Pinion
Operating Temperature 0 - 45°C
Operating Humidity 5 – 95%
Gross Weight 3200 kg
Option Rotary Attachment
