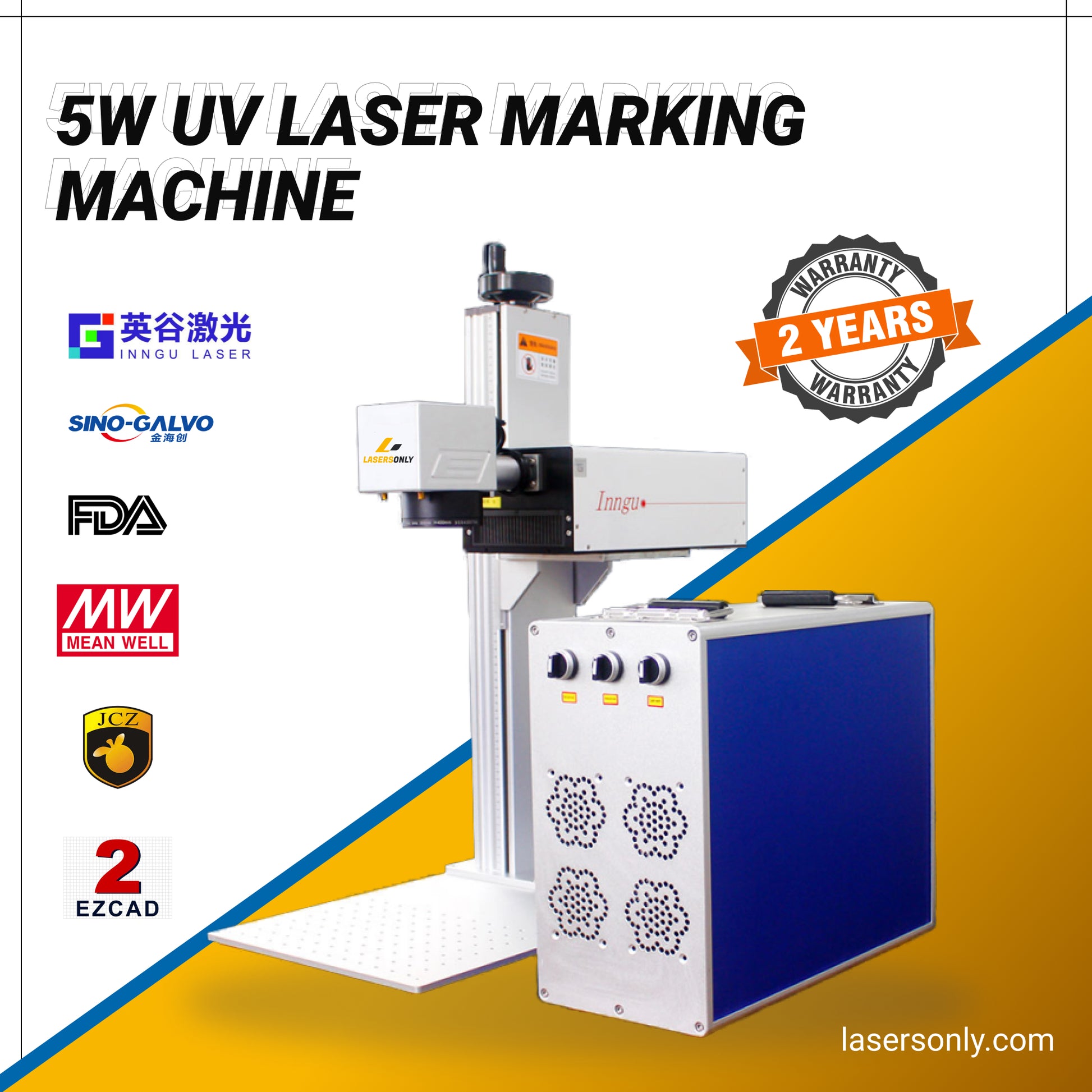

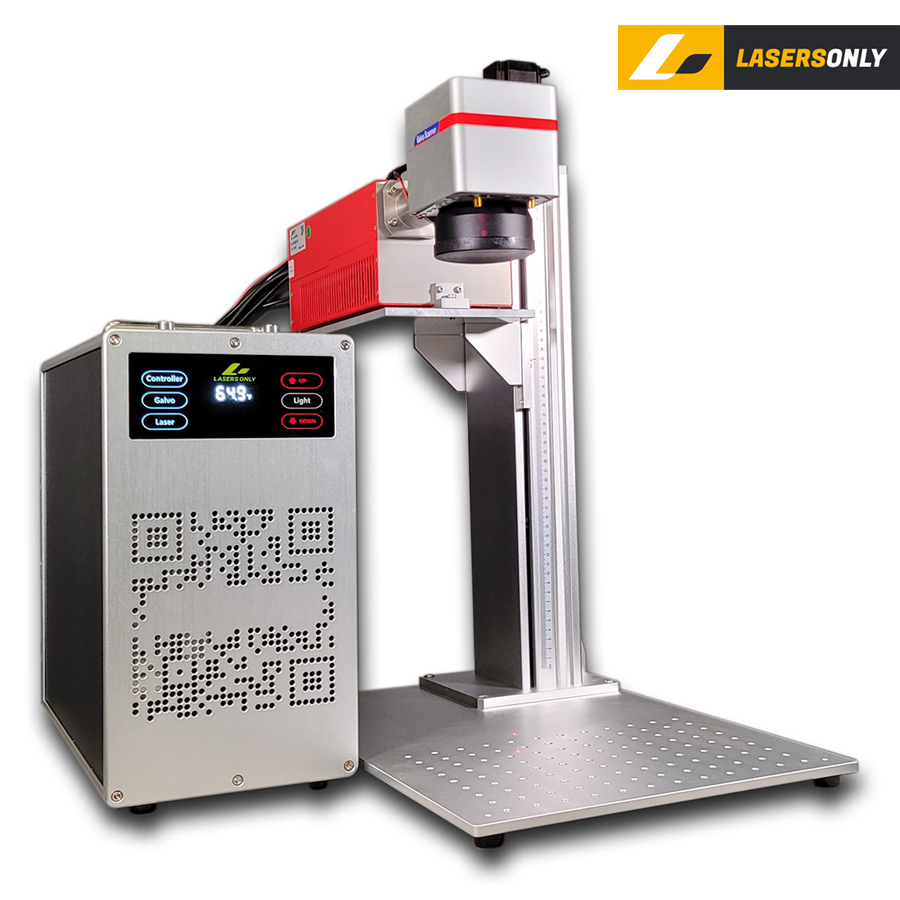

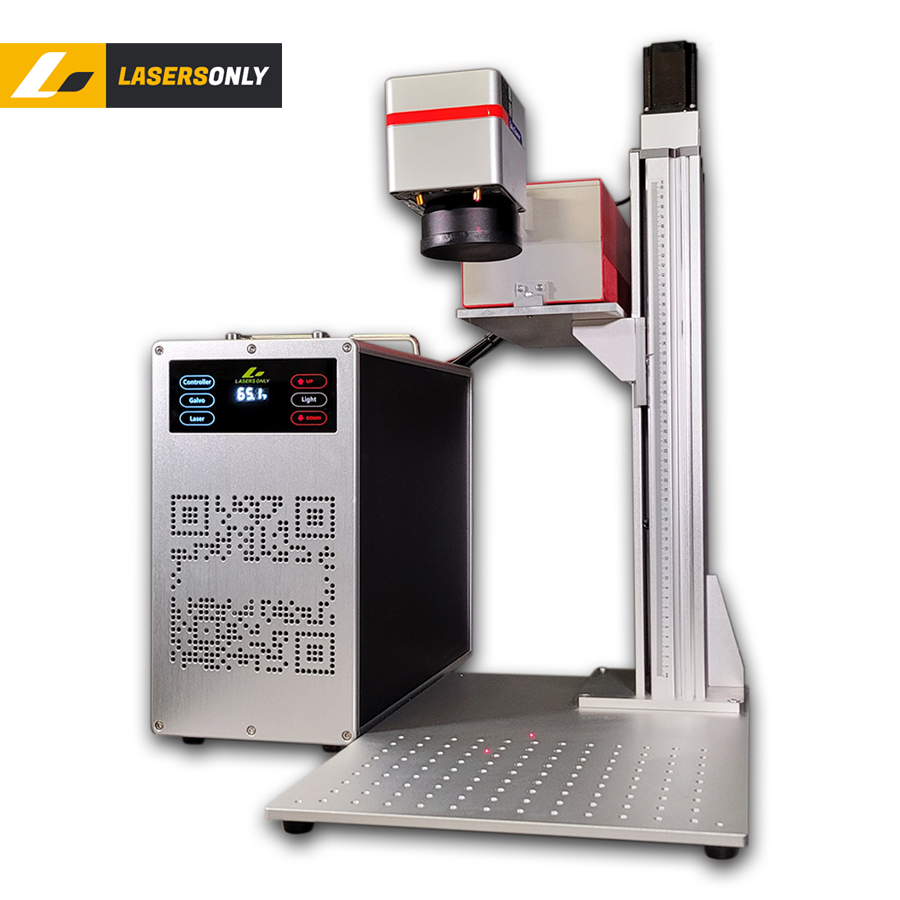

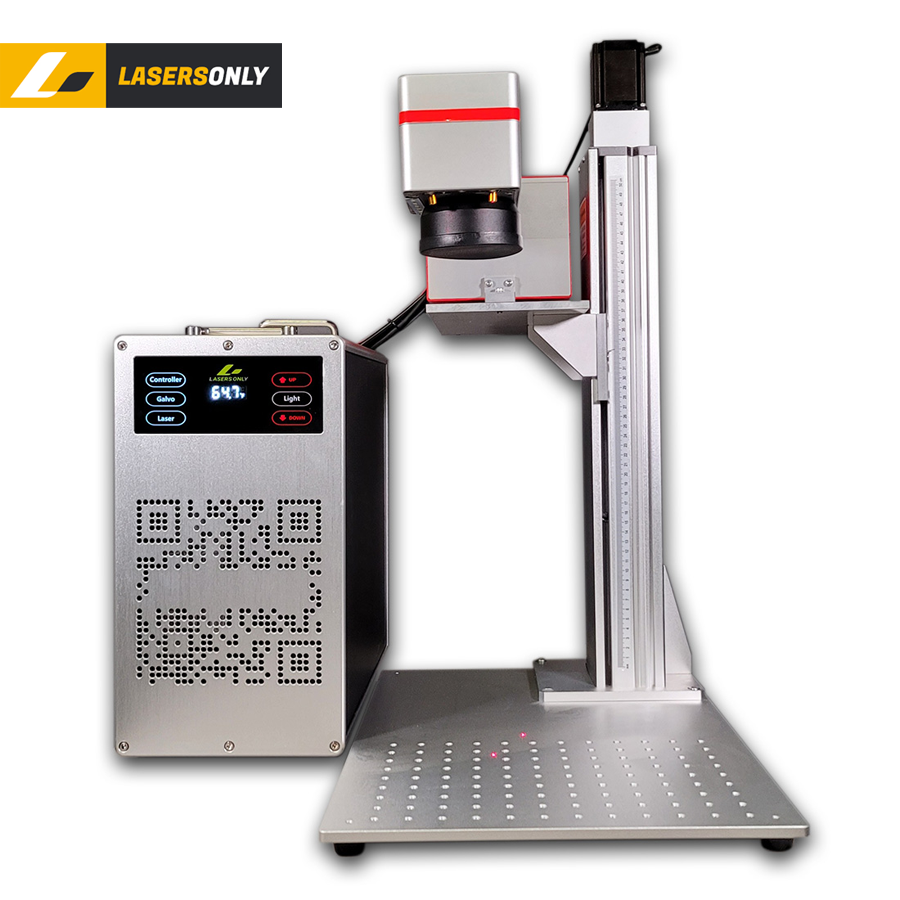

5W UV Laser Marking Machine
5W UV Laser Marking Machine
5W UV Laser Marking Machine
5W UV Laser Marking Machine
5W UV Laser Marking Machine
5W UV Laser Marking Machine
5W UV Laser Marking Machine
  • Load image into Gallery viewer, 5W UV Laser Marking Machine
  • Load image into Gallery viewer, 5W UV Laser Marking Machine
  • Load image into Gallery viewer, 5W UV Laser Marking Machine
  • Load image into Gallery viewer, 5W UV Laser Marking Machine
  • Load image into Gallery viewer, 5W UV Laser Marking Machine
  • Load image into Gallery viewer, 5W UV Laser Marking Machine
  • Load image into Gallery viewer, 5W UV Laser Marking Machine
Brand: Lasers Only

5W UV Laser Marking Machine

SKU: 5W-UV-LASER
Regular price
$9,400.00
Sale price
$9,400.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Short description

UV lasers use a highly absorptive wavelength (355 nm) to mark parts. This high absorption rate allows UV lasers to perform "cold marking," ensuring that no extra heat stress is applied to materials, including those with high reflectances such as gold, silver, and copper. This minimizes soot and burrs caused by the typical marking process. In addition, the high absorption rate allows marking and processing to be performed on a variety of materials with minimal heat stress to the material.


More payment options


We recommend to add to this product:

We recommend to add to this product:

Rotary Axis
Rotary Axis #80 Bracing Range
25 - 70 mm
$357.14
OR
Rotary Axis #125 Bracing Range
38 - 125 mm
$607.14
+
Accessories

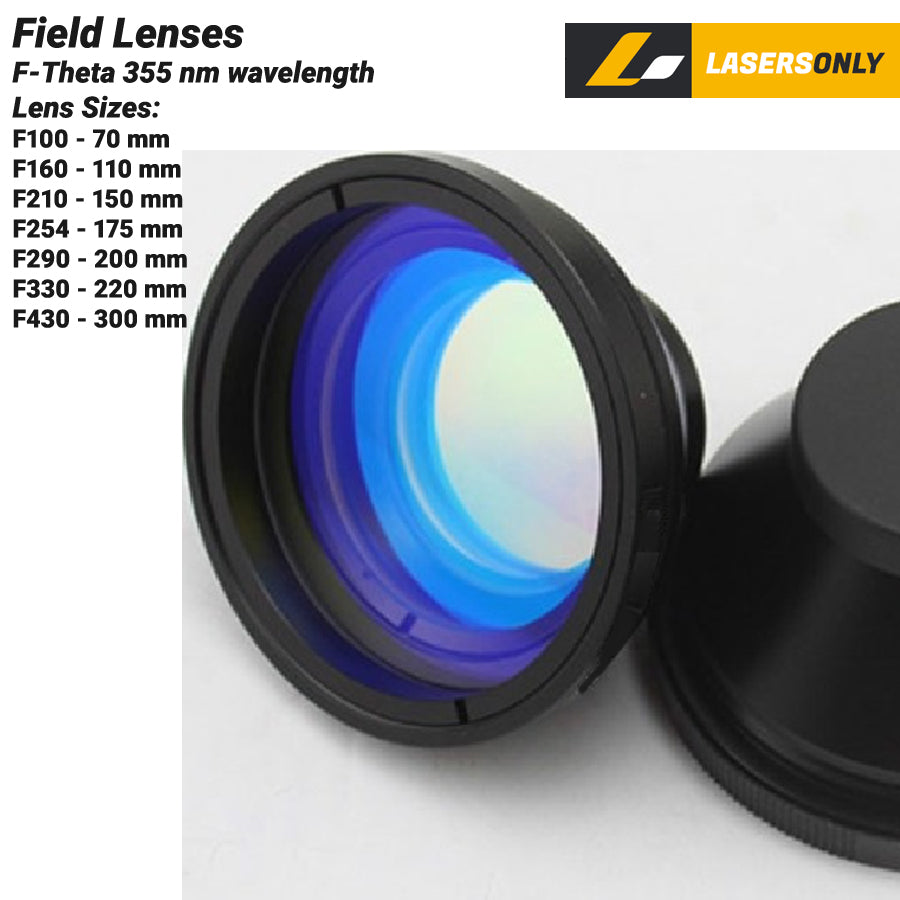

F-Theta Scan Field Lens 1064nm for Fiber Laser Marking Machine Get higher resolution for scanning and printing.
$145.00
OR
Safety Eyewear for 1064 nm Fiber Laser Frame 6 Fit Over Prescription Glasses Have a clear view without flickering.
$69.00

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
5W UV Laser Marking Machine

5W UV Laser Marking Machine

Product Description

Versatility: UV Laser marking can be used on many products in a variety of industries, including aerospace, automotive, defense DOD, and medical and electronic components.
Maintenance Free: With UV laser marking, there is no prolonged downtime associated with cleaning or fixing a printer, and the overall engraving process is extremely quick and simple.
Fast Processing: UV lasers are better absorbed than other wavelengths and marking techniques by virtually all materials, requiring less power to produce a clear mark in one application. This makes the process even simpler since UV laser marking ensures a high-quality, high-contrast mark.
Low Power Consumption: Compared with standard laser light (1064 nm) and green laser light (532 nm), UV laser light has a remarkably higher material absorption rate. This means the power does not need to be increased to create highly visible marks.
Damage-Free Marking: UV lasers can mark highly reflective materials like gold, silver, and copper with minimal heat damage thanks to the high absorption rate of UV light. This minimizes soot and burrs, prevents surface damage, and enables corrosion-resistant marking.
Quality: UV lasers create easy-to-read marks that are far superior to printed marks or labels. UV laser has smaller spot sizes, leading to crisp, clear marks. This ensures that parts can be clearly identified and their markings cannot be altered or tampered with.
Special Applications. During the laser marking process, the marking device does not come into direct contact with the product, allowing for clean operation with minimal contamination. This creates a product identification option for industries that require sterile products and ensures that outside materials will not cause future contamination of a product.

Product Components

Laser Type UV Laser Marking Machine
Working Area 110*110/150*150/200*200/300*300 (mm)
Laser Power 5W
Laser Wavelength 355nm
Application metal and non-metal
Marking Speed 700mm/second
Repeated Precision ±0.003mm
Working Voltage 220V / or 110V (+-10%)
Cooling Mode Air Cooling
Supported Graphic Formats AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Controlling Software EZCAD
Optional Parts Rotary Device, Lift Platform, Other Customized Automation
Warranty 2 year
Package Plywood

Laser Source: Technical Parameters

Product Model Grace-X 355-5
Wavelength nm 355
Pulse Repetition Rate Range kHz 10 to 150 (Options single shot to 200)
Pulse Width kHZ ≤16ns@30
Average Power kHZ >5W@30
Average Power Stability <±3% over 24 hours
Pulse-to-Pulse Stability rms <3%
Spatial Mode TEM00(M2<1.2)
Beam Divergence Full Angle mrad < 2
1/e2 Beam Diameter mm 0.7
Beam Roundness >90%
Beam Pointing Stability urad <50
Polarization Direction Horizontal
Polarization Ratio 100:1
Cooling Water/Air-cooling

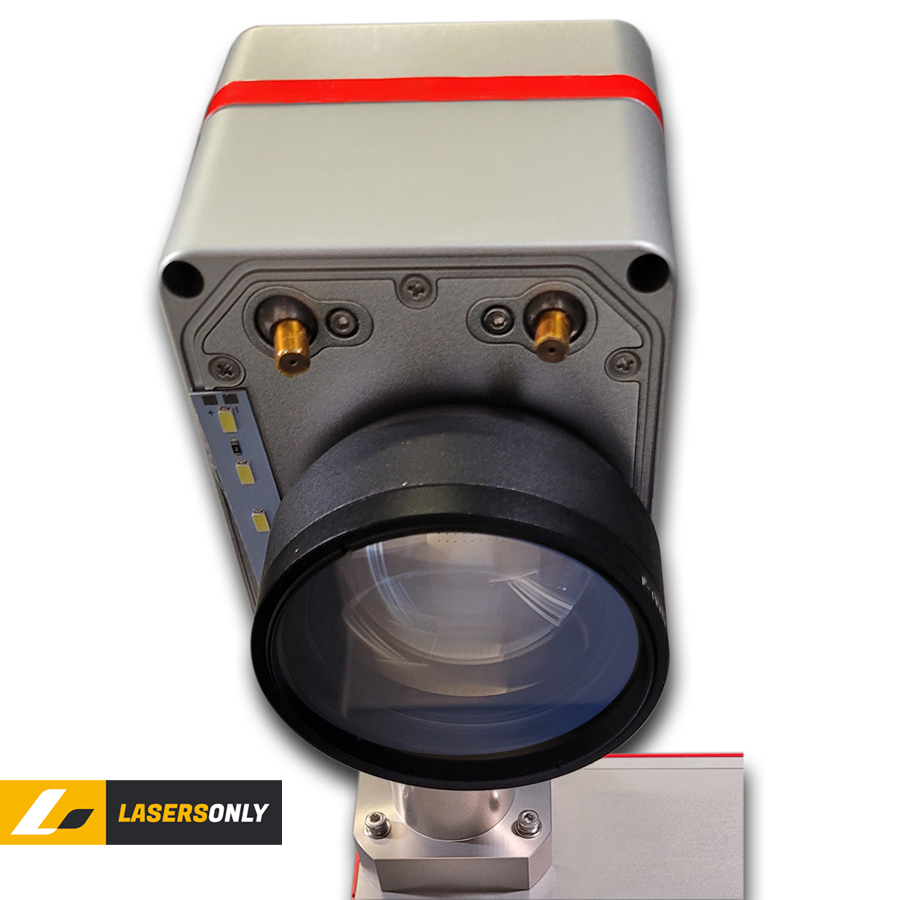

Galvanometer: Technical Specification

Manufacturer ZBTK Tech Co
Marking Speed 800mm/s
Positioning Speed 10000mm/s
Setting Time ≤0.4ms
Wavelength 10.6um / 1064nm / 355nm
Linearity 99.90%
Repeated Positioning Accuracy 8uRad.
Long-term Drift (8 hours of continuous work) <0.5mRad
Gain Error <8mRad
Zero Drift <15uRad./°C
Tracking Error ≤180us
Proportional Drift <40PPM/°C
Input Voltage ±15 VDC
Average Working Current 2.0A
Signal Interface Digital XY2-100
Peak Current 15A
Operating Temperature 0°C-45°C
Position Signal Input Impedance 10K ± 1%
Position Signal Input Scaling Factor 0.33V /°
Operating Temperature 0°C - 45°C
Storage Temperature -10°C - +60°C
Laser Input Aperture 10mm
X, Y Lens Center Distance 13.5mm
Maximum Scanning Angle ± 15 °
Drive board Size (LxWxH) 75 x 46 x 25mm
Galvanometer Size (LxWxH) 100 x 95 x 120mm
Weight 850g
Download Technical Specifications
Product & Service

Product & Service

Warranties:

Warranties:

Product Warranty INCLUDED

LASERS ONLY warrants its products and parts against defects in materials or workmanship for Two (2) years from the original date of receipt for fiber lasers and One (1) year for CO2 and other lasers types. This includes the power source. Focal lenses are warranted for 30 days. Read more about our warranty policy here.

EZCAD2 Software INCLUDED

EZCAD2 is a well-known and most popular laser and galvo control software. It works with LMC series laser controller for laser processing like marking, engraving, etching. After 15 years of verification by the market, It is now adopted by more than 4000 laser equipment integrators, more than 100,000 laser machines are with EZCAD2 annually.

Install Training INCLUDED

The installation of EZCAD2 is very easy. Users simply need to copy the EZCAD2 folder that is in the Install CD to the hard disk and then double click the Ezcad2.exe under the EZCAD2’s directory to run the software. If you need any help with installation - just contact our customer support.
