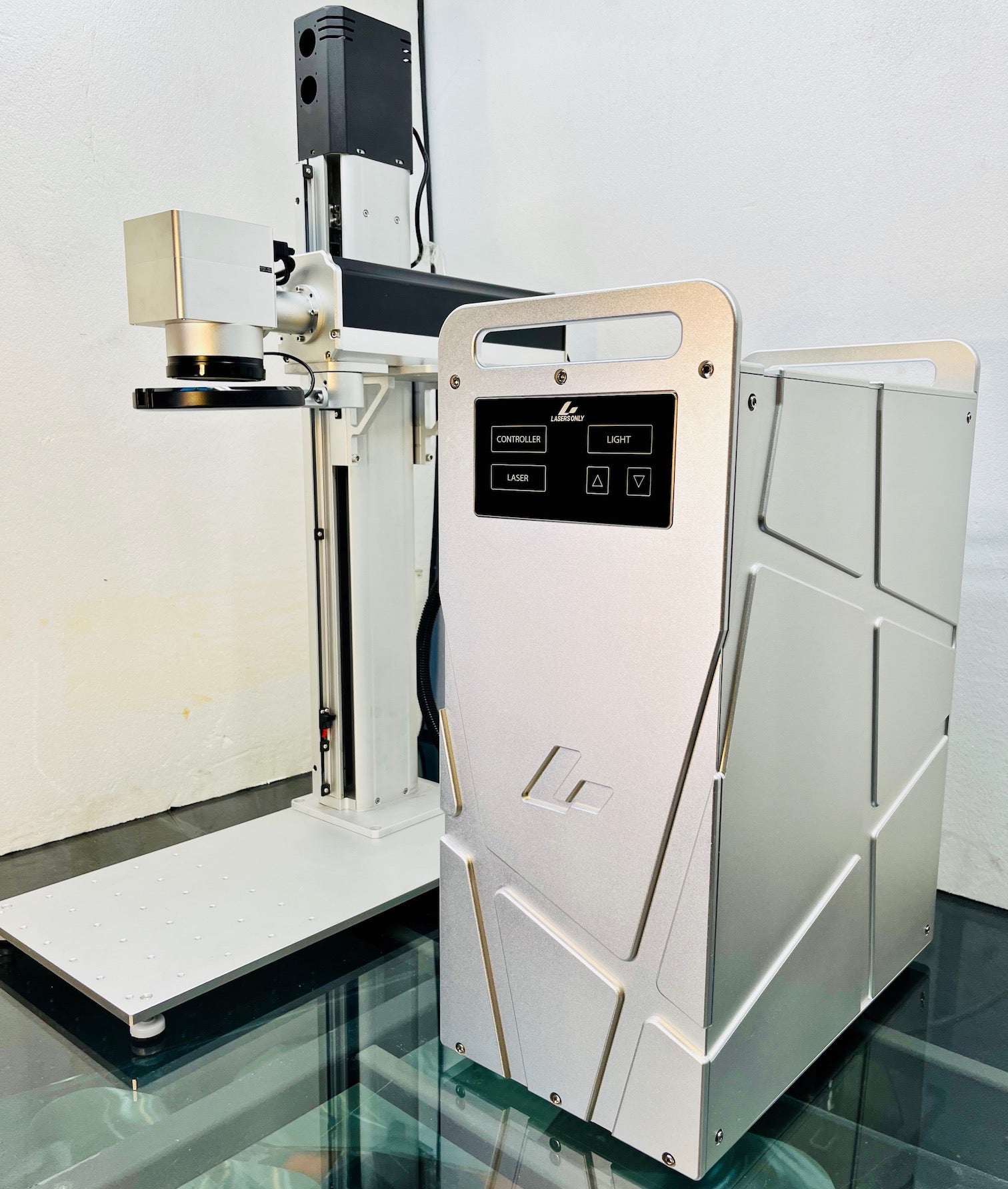

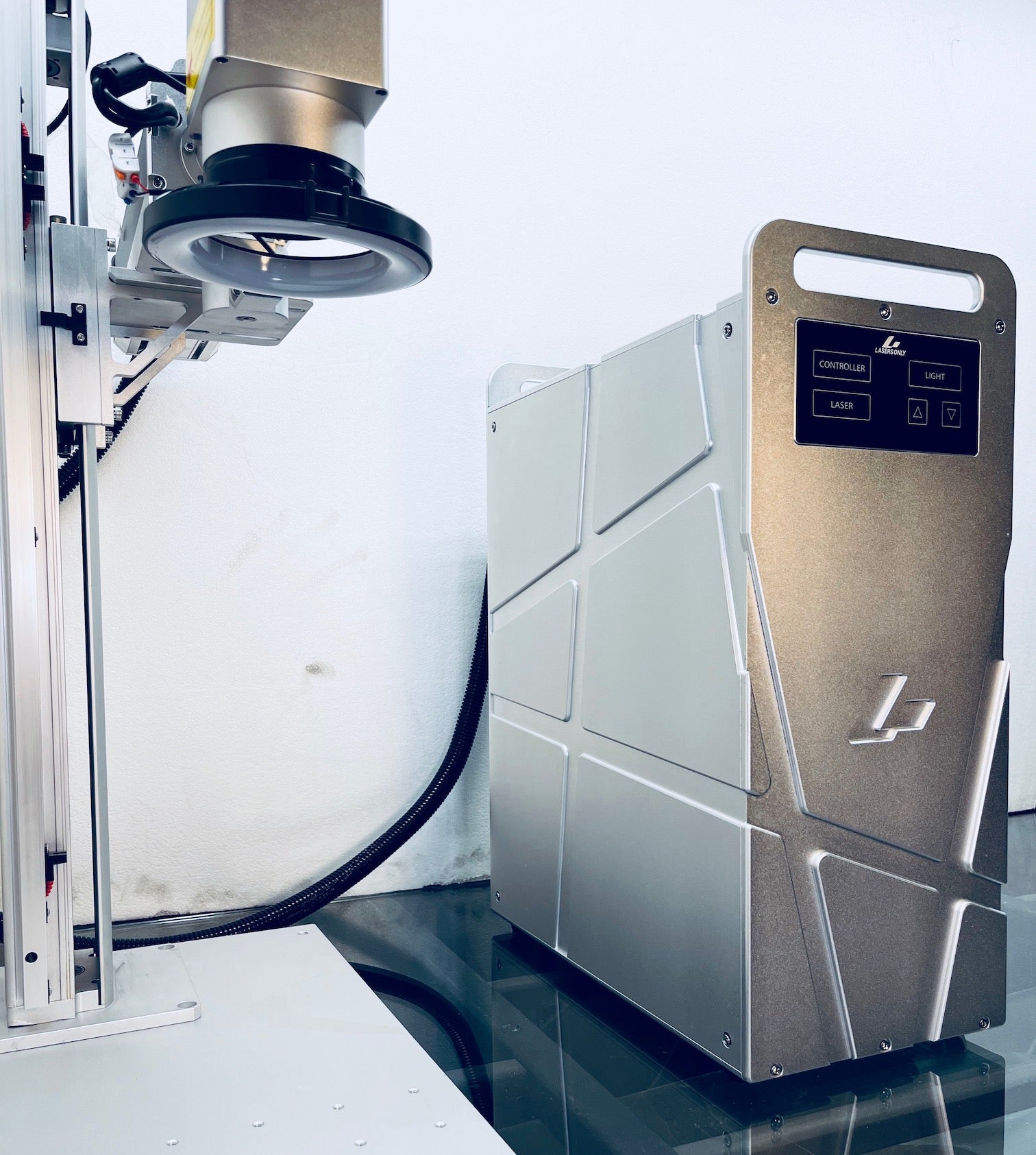

200W Fiber Laser Marking Machine JPT MOPA M7

200W Fiber Laser Marking Machine JPT MOPA M7

Regular price $17,999.00
Regular price Sale price $17,999.00
Sale Sold out
Shipping & Taxes Included. Financing Available.

Get it by

  • American Express
  • Apple Pay
  • Mastercard
  • PayPal
  • Visa

Phone icon Call us to learn more at (212) 470-7896

Product Description

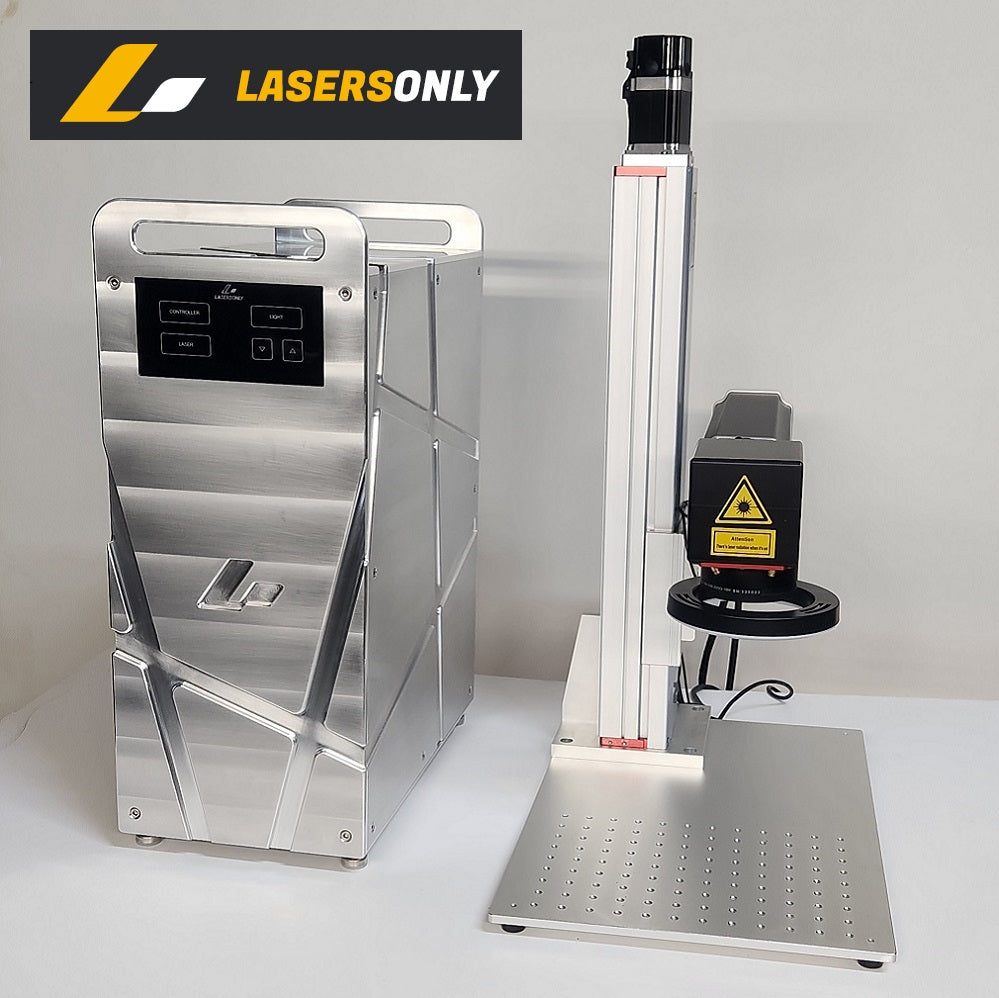

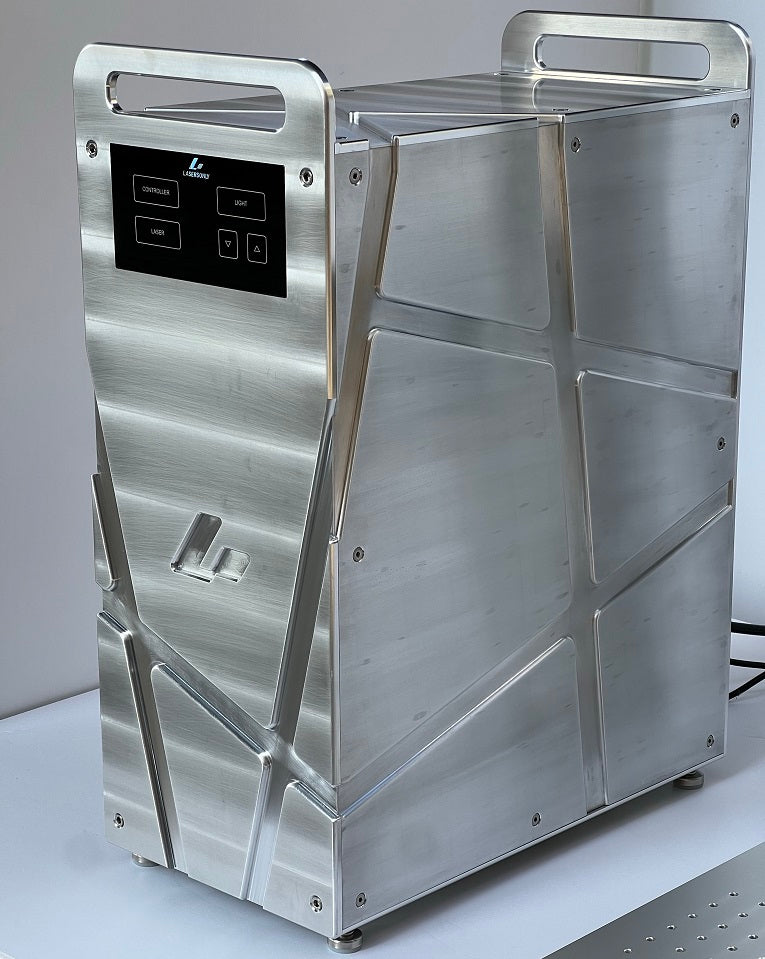

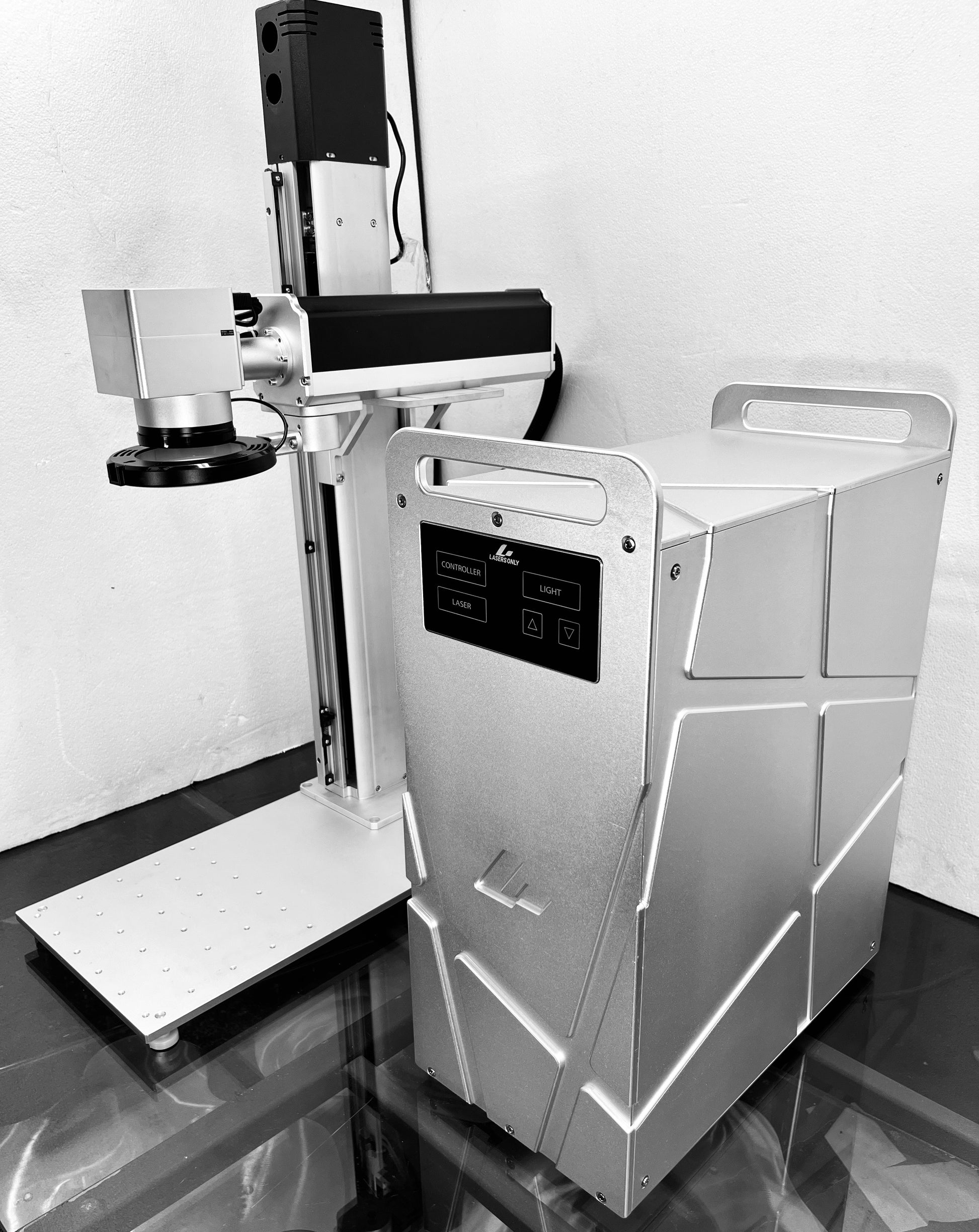

Our new 200W Fiber Laser Marking Machine is the most powerful desktop split-system model, running on a standard 110V power line with an air cooling method for convenience.

We use the original JCZ Control Boards in our 200W fiber laser machines. The controller operates the laser and the galvanometer with the EZCAD2 application. Lightburn developed the software for fiber lasers with galvo scanners, which is excellent news for the laser users community. Lightburn developers used our machines to test the software with our Galvo-operated fiber lasers.

We use brand-name quality components to build our new model of 200W laser machines. A 2-year manufacturer warranty covers Laser Source, and a 1-year warranty covers all other parts against defects in materials or production. We provide EZCAD2 user manual and video tutorials, and we can offer help with remote setup and installation and offer our customers a complimentary one-hour tutoring session.

Check Out Technical Specification.

Components

Laser Source 200W JPT MOPA M7

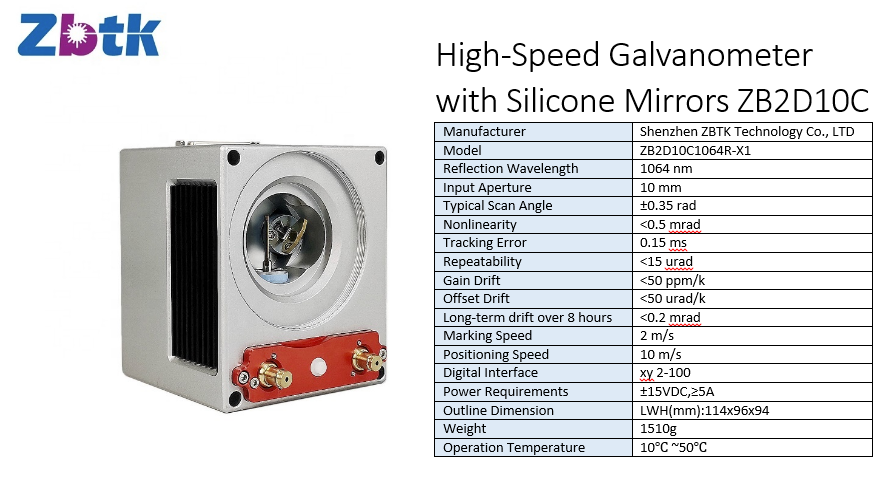

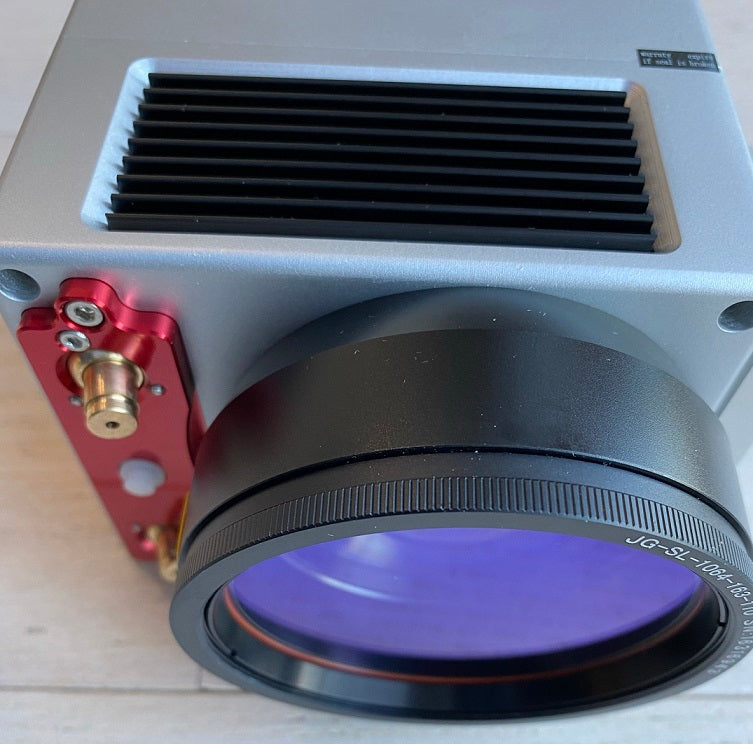

Galvanometer High-Speed ZBTK with Silicon Mirrors

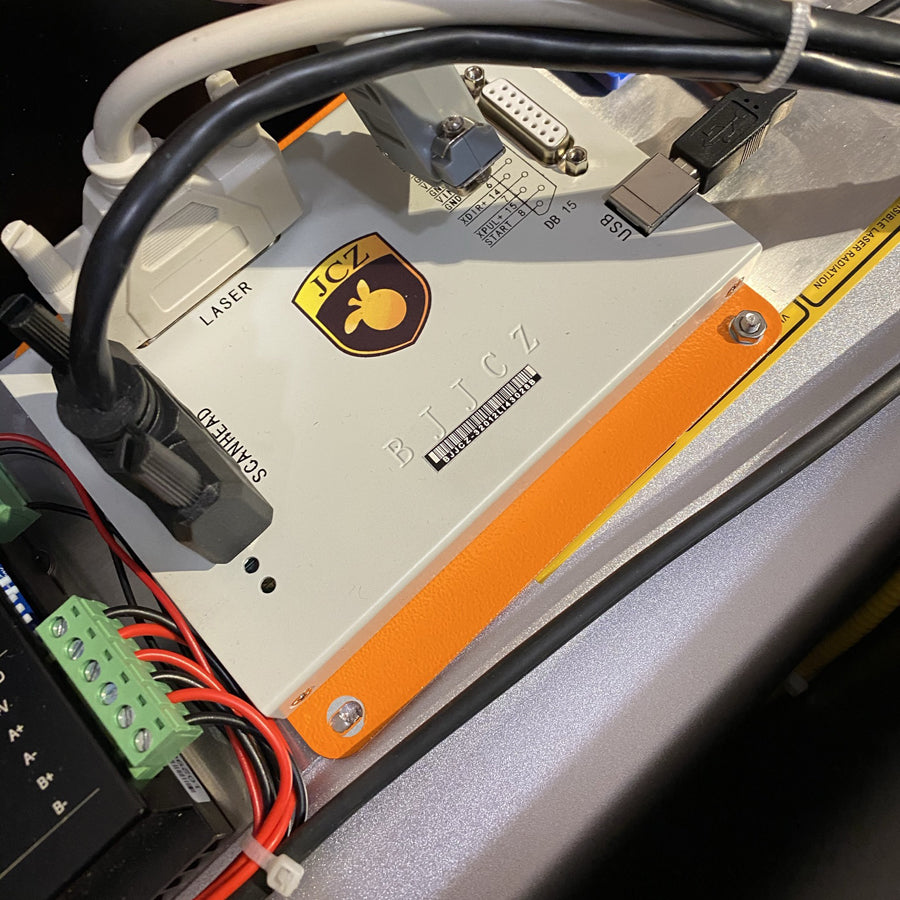

Control Board Original BJJCZ LMC-V2
Power Supplies MeanWell 5V, 15V, 48V
Software EZCAD2/EZCAD-LITE for Windows 64-bit OS 7 & 10. 11
Dual Red Dot Device Easy focusing for 2 lens sizes

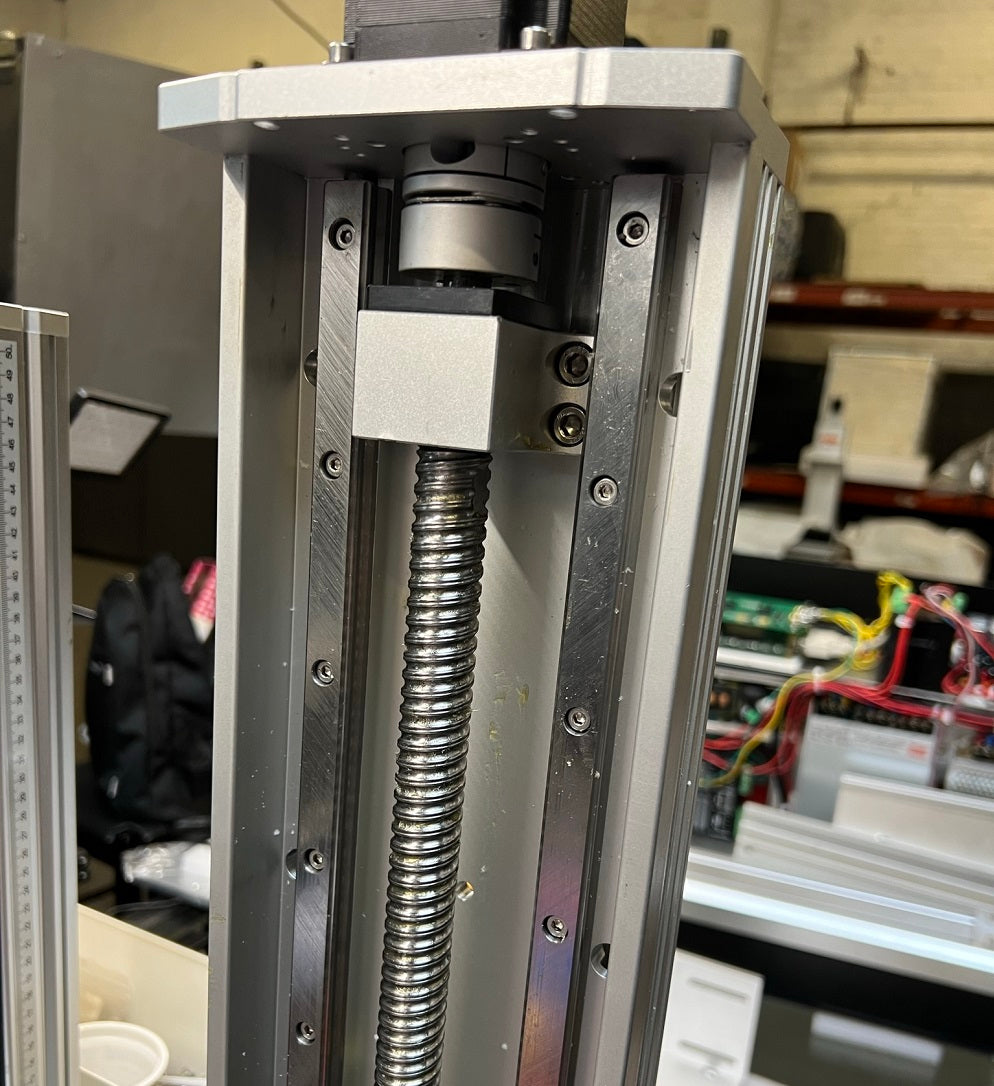

Z-Axis Control Motorized with remote control

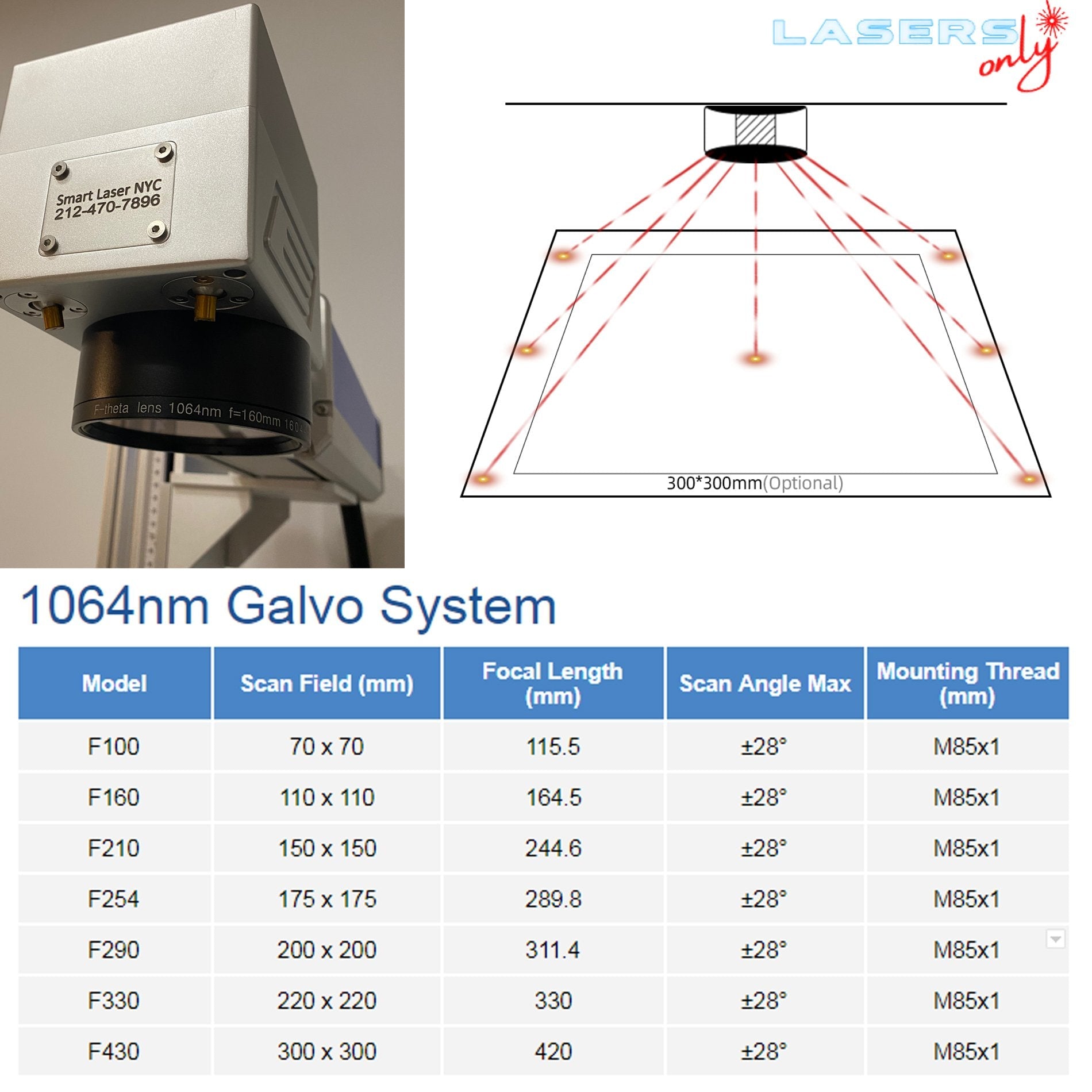

F-Theta Field Lens F160 working area 110 x 110 mm Focal Length 165 mm
EXTRA Lens*
F430 working area 300 x 300 mm Focal Length 420 mm

Features

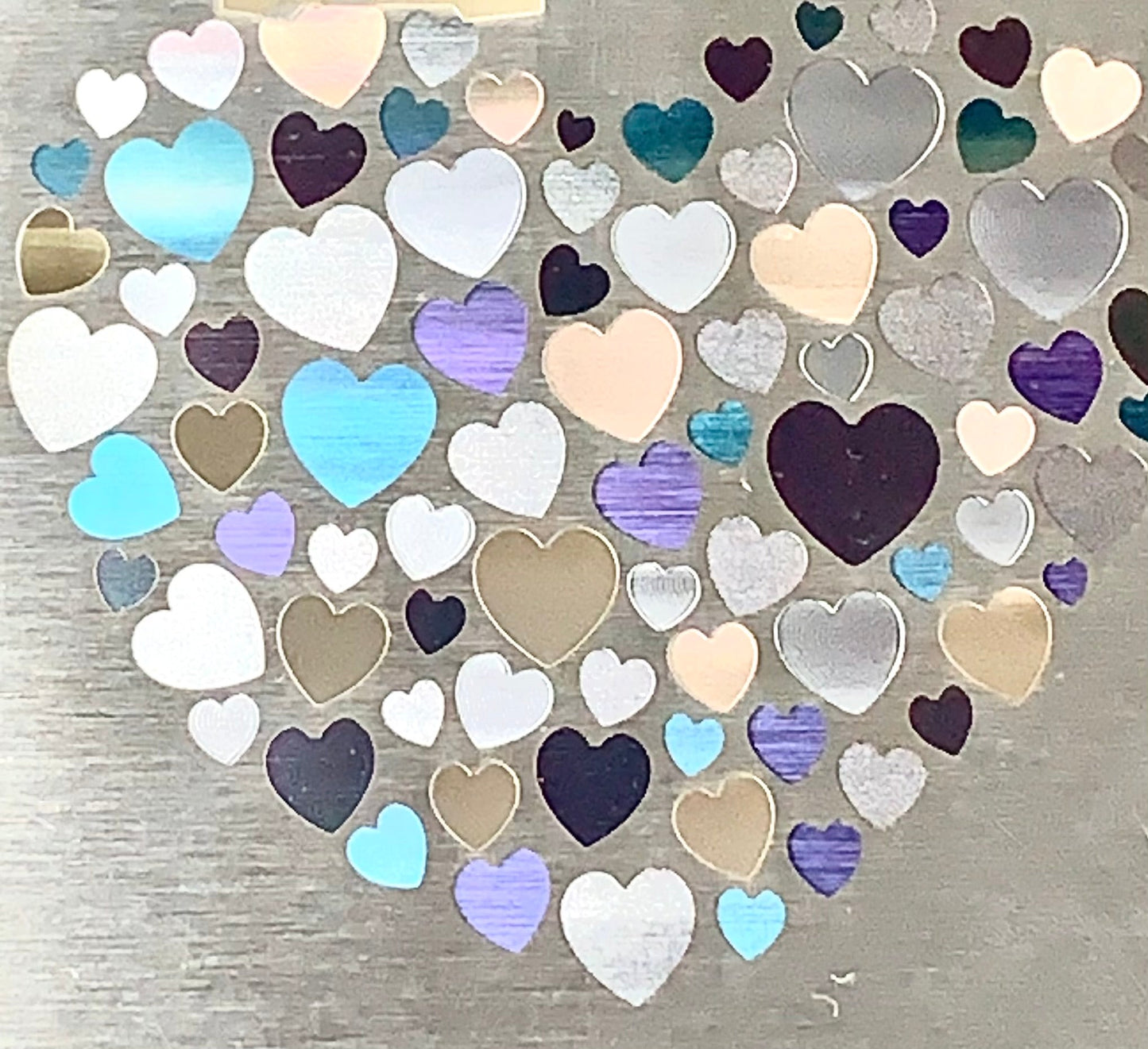

  • High-quality, JPT MOPA M7 laser source, with a wide range of frequencies (1-4000 kHz) and modifiable pulse width, which allows doing engravings in color on metals
  • Compact and portable, the desktop model has a small footprint and can be easily transported to the worksite.
  • Flexible, the open design and adjustable Z-Axis allow working on objects of different shapes and sizes up to 30” in height.

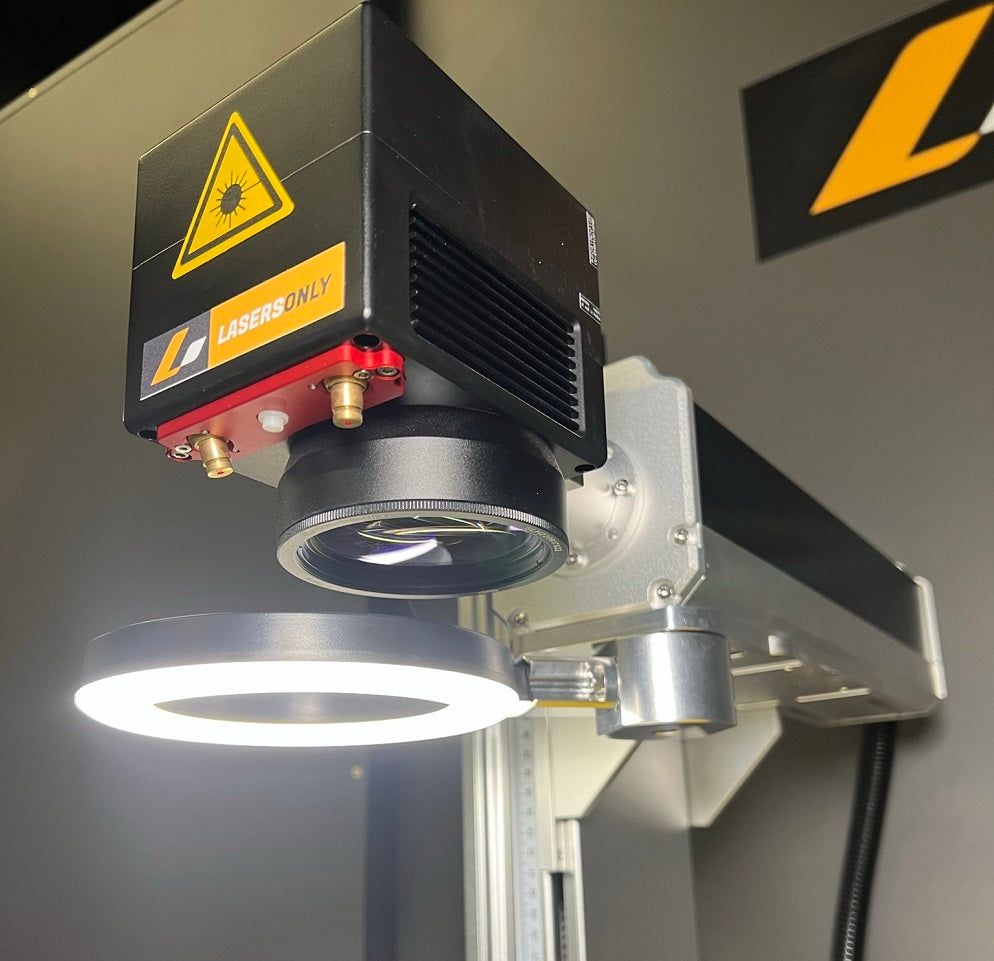

  • Practical, dual red dot easy focusing device for two lens sizes and work area LED lights.
  • Easy operation with EZCAD2/EZCAD-LITE software that supports all standard design file formats AI, DXF, DST, PLT, BMP, JPG, GIF, TGA, PNG, TIF, etc.
  • 2-year manufacturer warranty. Online technical support. EZCAD video tutorials in English. Check the Q&A section for Installation Instructions.
FREE GIFT FOR YOU: You will get an EXTRA LENS F430 to cover a larger engraving area. We will ship F430 (300 x 300 mm) and F160 (110 x 110 mm) lenses with your 100W fiber laser machine.

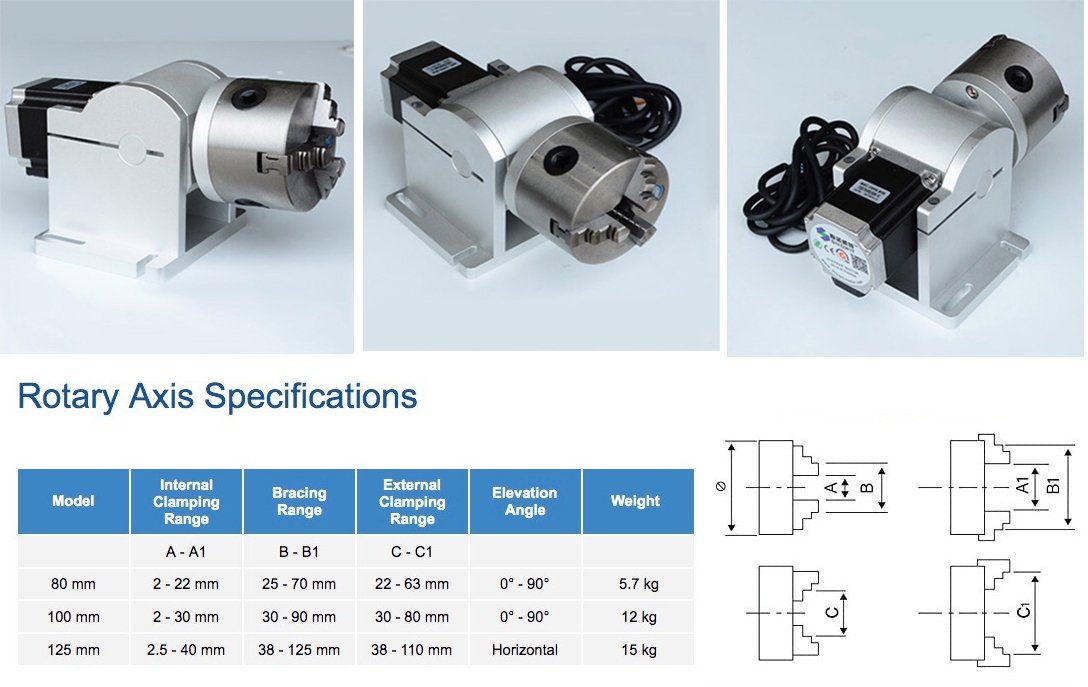

LIMITED TIME OFFER: Get 30% OFF Rotary Axis with a 100W fiber laser machine purchase. Please, use discount code ROTARY at the checkout.

Laser Source Technical Specifications

Product

Unit

Value

Product Model


YDFLP-200-M7-M-R

M2


<1.6

Armored Cable Length

m

5

Nominal Average Output Power

W

>200

Maximum Pulse Energy

mJ

1.5

Pulse Repetition Rate Range

kHz

1 ~ 4000

Pulse Duration

ns

2 ~ 500

Output Power Stability

%

<5

Cooling Method


Air Cooled

Supply DC Voltage (VDC)

V

48

Maximum Power Consumption

W

<800

Environmental Supply Current

A

>16

Central Emission Wavelength

nm

1064

Emission Bandwidth@3dB

nm

<20

Polarization Orientation


Random

Anti-high Reflection


Yes

Output Beam Diameter

mm

7±0.5

Output Power Tuning Range

%

0 ~ 100

Operation Temperature

0 ~ 40

Storage Temperature

-10 ~ 60

Weight

kg

24.8

Size(L×W×H)

mm

430 × 351 × 133

Download technical specifications
