200W Fiber Laser Marking Machine JPT MOPA M7
200W Fiber Laser Marking Machine JPT MOPA M7
Get it by
Couldn't load pickup availability
Call us to learn more at (212) 470-7896
Product Description
Product Description

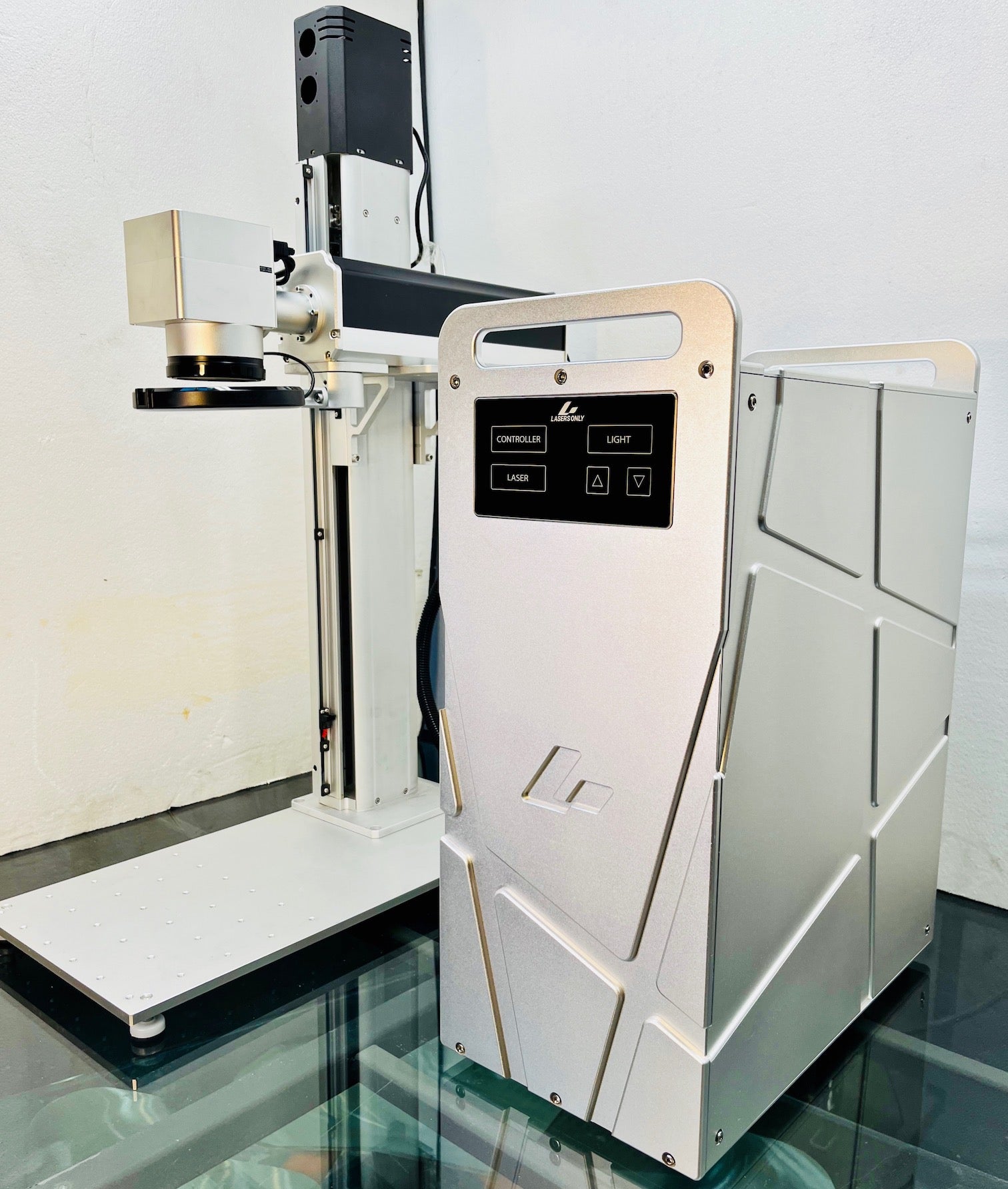

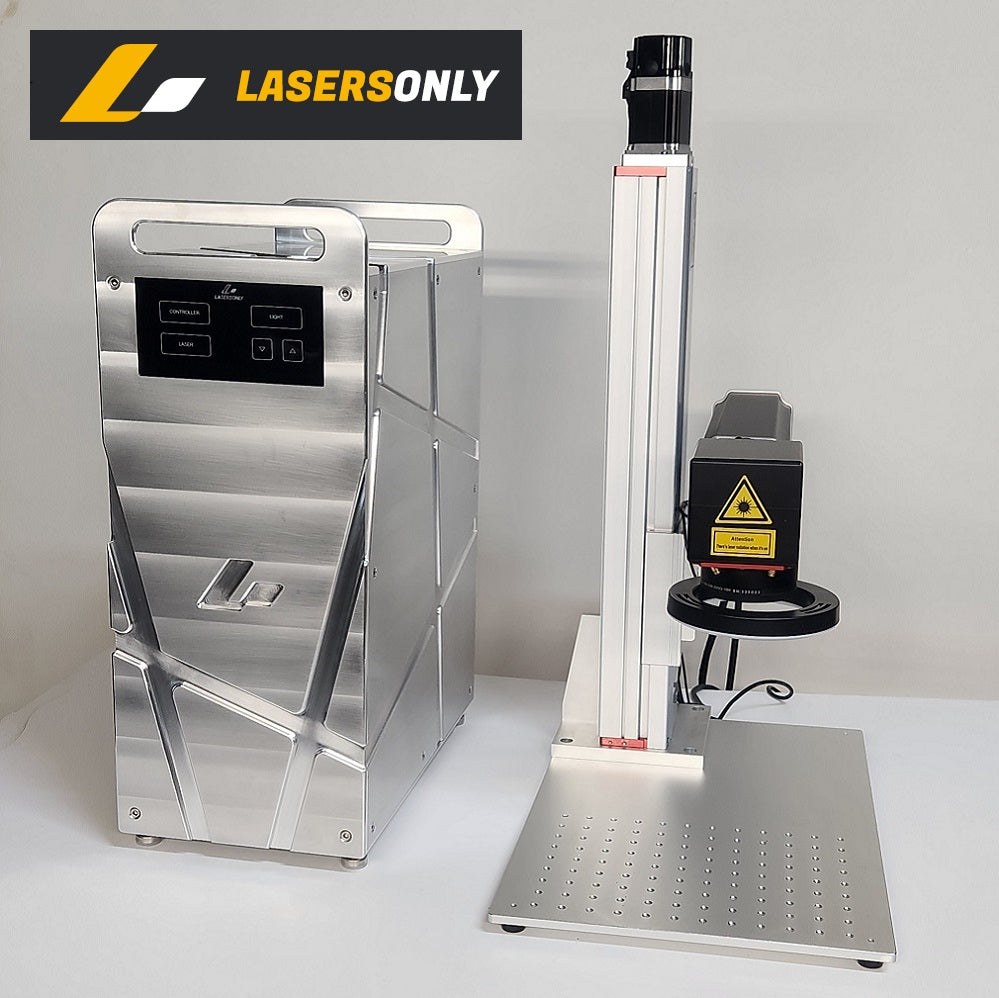

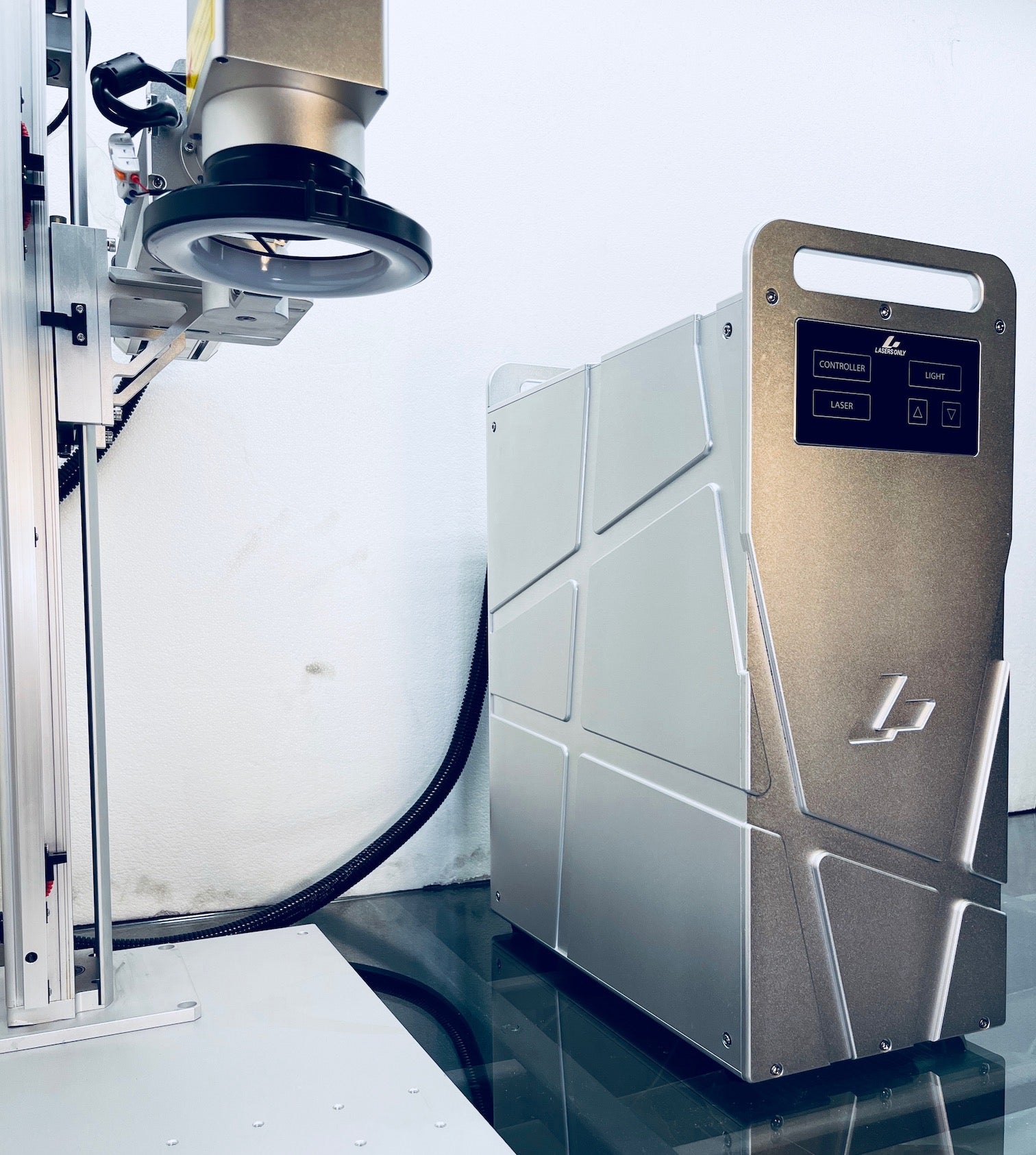

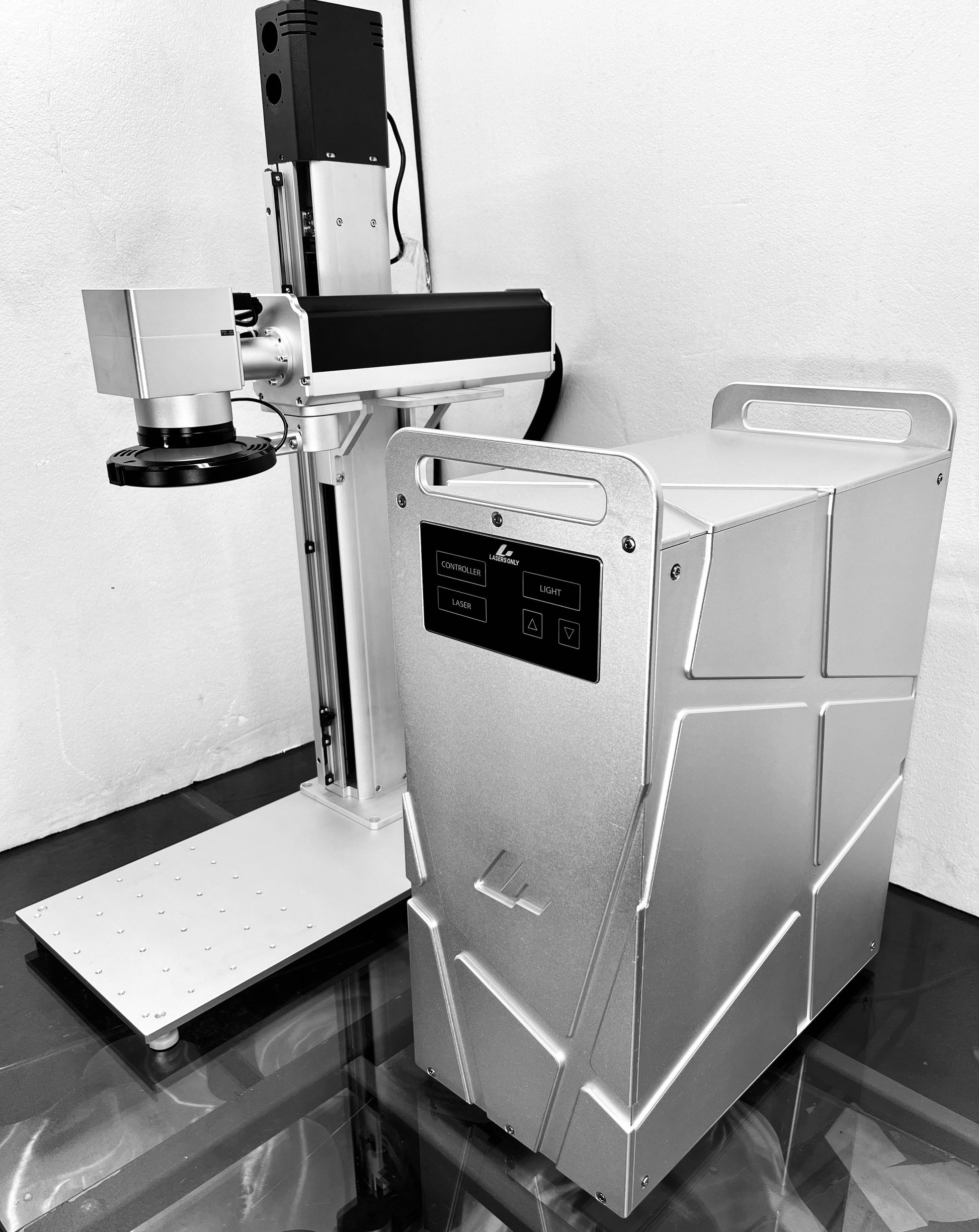

Our new 200W Fiber Laser Marking Machine is the most powerful desktop split-system model, running on a standard 110V power line with an air cooling method for convenience.

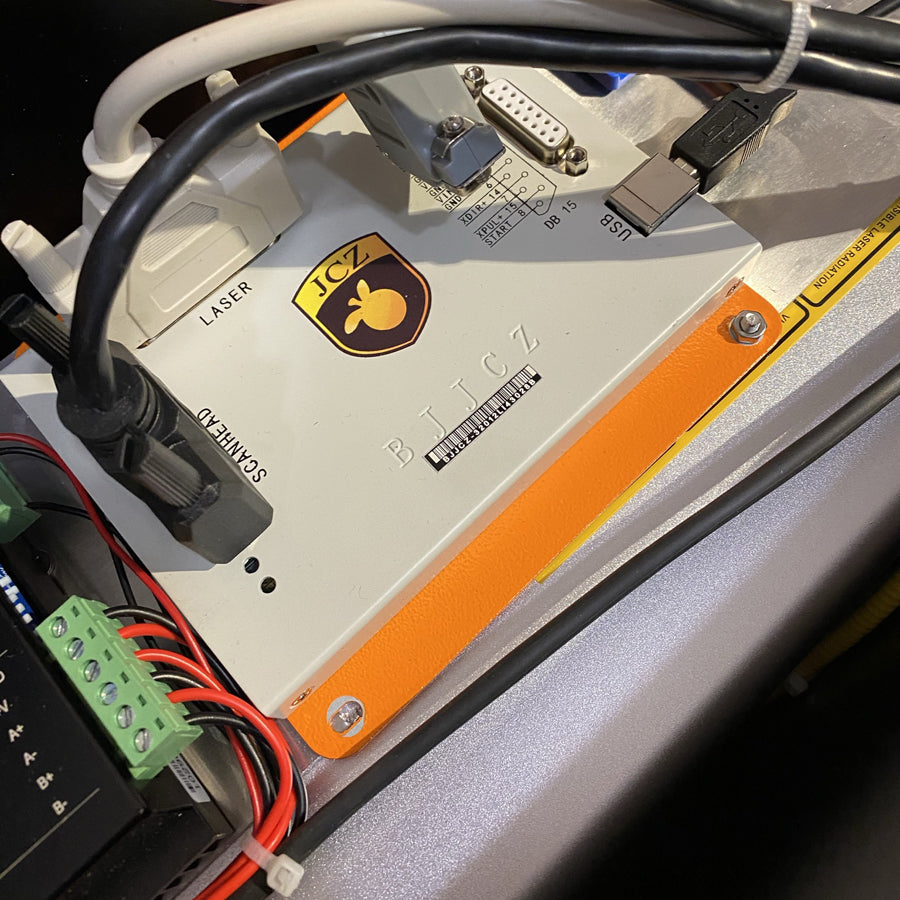

We use the original JCZ Control Boards in our fiber laser machines. The laser comes with EZCAD2 software, which operates the laser source and the galvanometer. The JCZ boards are compatible with Lightburn software, which is developed for fiber lasers with galvo scanners, and this is excellent news for the laser users' community. Lightburn developers used our machines to test the software with our Galvo-operated fiber lasers.

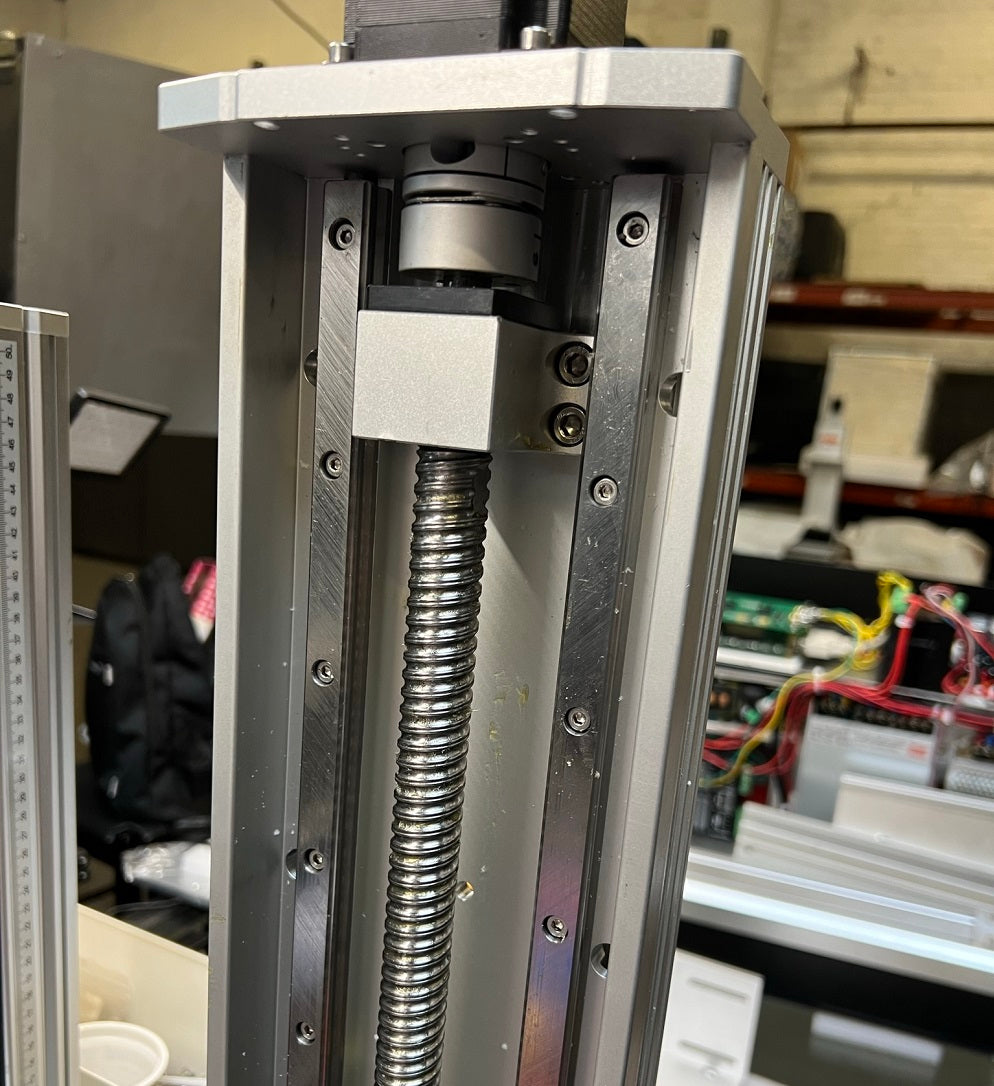

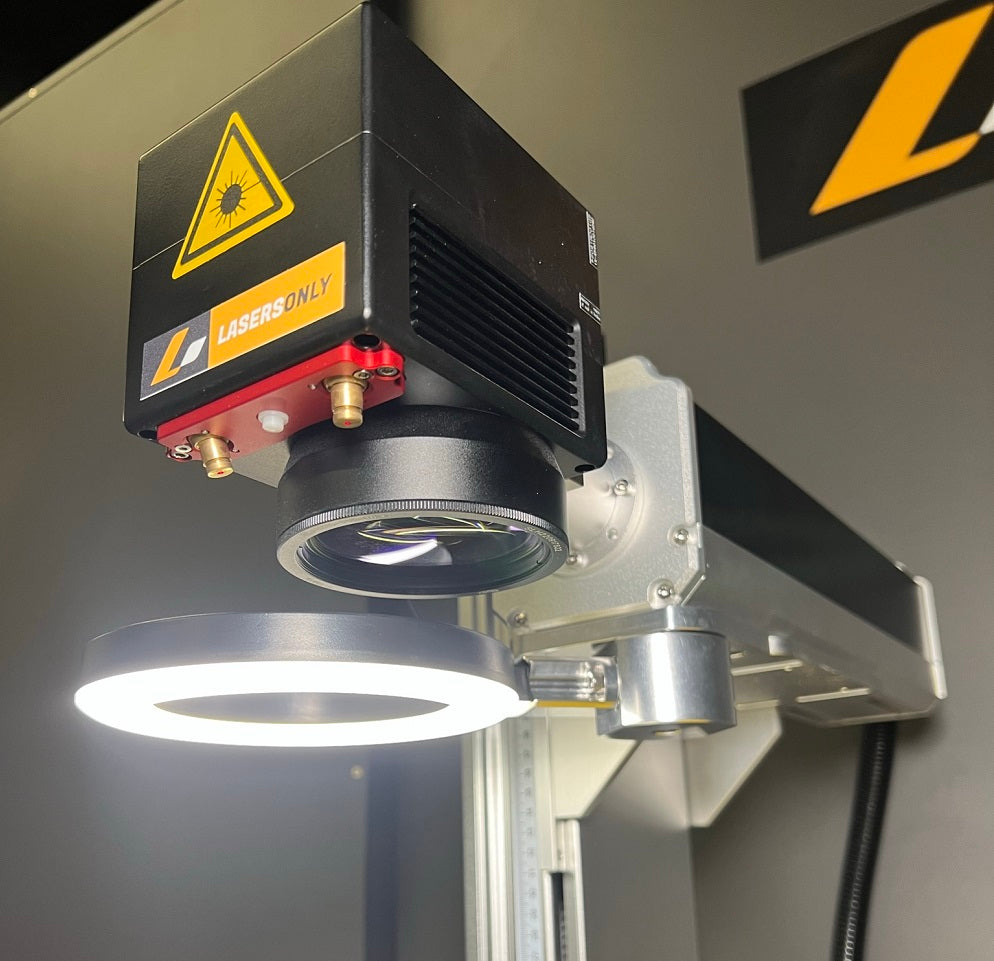

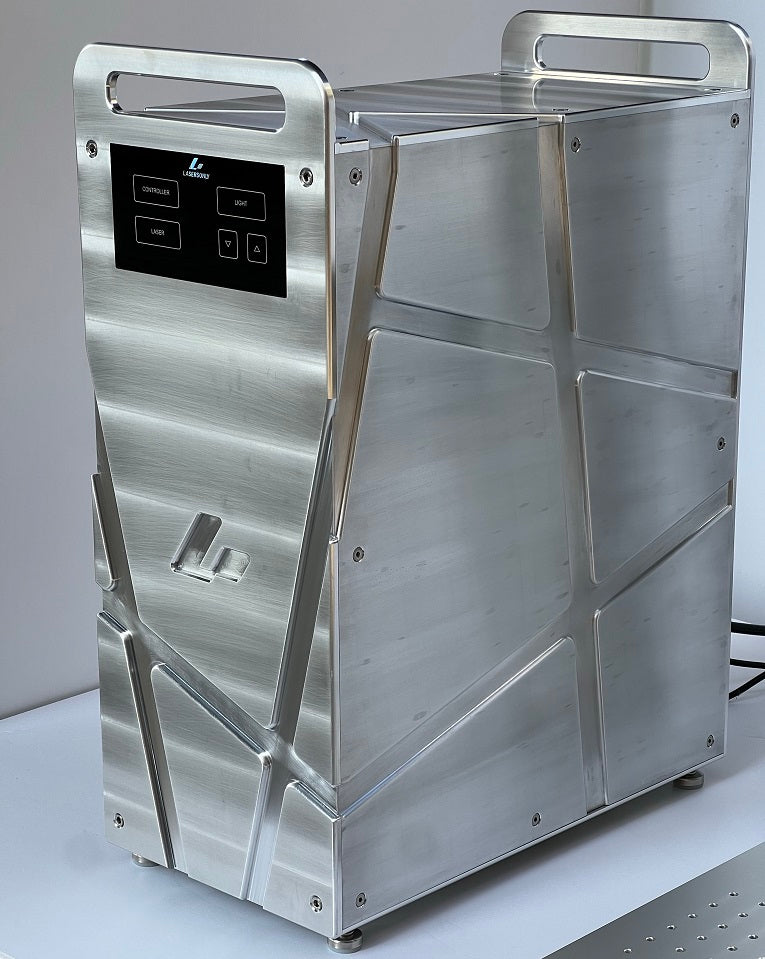

We use only high-quality brand-name components to construct our fiber laser machines. Our machines are equipped with a motorized tower and a touchscreen display, allowing for the operation of the laser, work area lights, and the Z-axis. The proprietary rotating LED light fixture was designed to add convenience. We also provide a wireless remote control for adjusting the Z-axis, and a manual crank for fine-tuning the focal length. We set up the Dual Red Dot Easy Focusing device for the two lenses that come with all our machines.
A 2-year manufacturer warranty covers Laser Source, and a 1-year warranty covers all other parts against defects in materials or production. We provide EZCAD2 user manuals and video tutorials, and offer help with remote setup and installation. Additionally, we provide our customers with a complimentary half-hour tutoring session.
Check Out Technical Specification.
Components
Laser Source | 200W JPT MOPA M7 |
Galvanometer | High-Speed ZBTK with Silicon Mirrors |
Control Board | Original BJJCZ LMC-V2 |
Power Supplies | MeanWell 5V, 15V, 48V |
Software | EZCAD2/EZCAD-LITE for Windows 64-bit OS 7 & 10. 11 |
Dual Red Dot Device | Easy focusing for 2 lens sizes |
Z-Axis Control | Motorized with remote control |

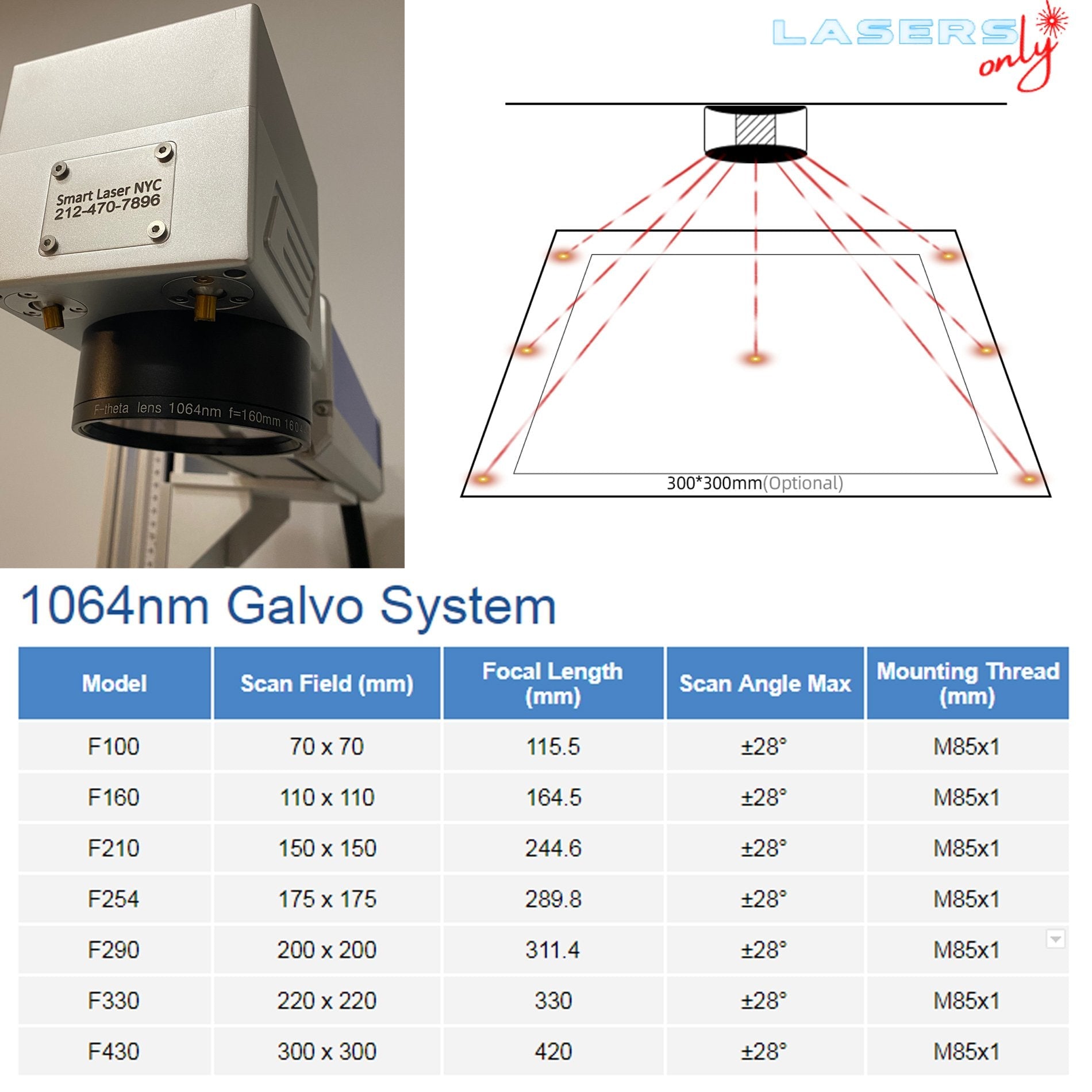

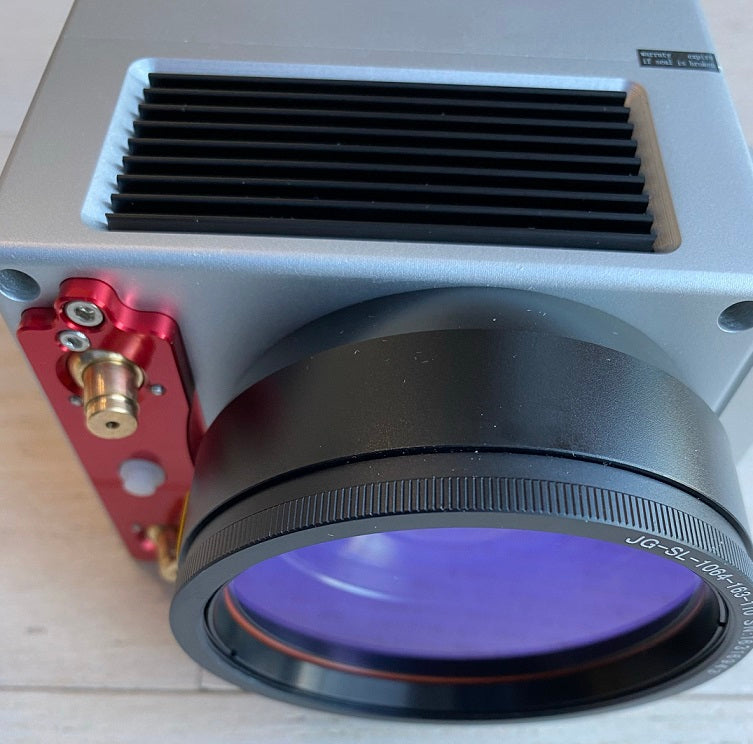

F-Theta Field Lens | F160 working area 110 x 110 mm Focal Length 165 mm |
EXTRA Lens* |
F430 working area 300 x 300 mm Focal Length 420 mm |
Features
- High-quality, JPT MOPA M7 laser source, with a wide range of frequencies (1-4000 kHz) and modifiable pulse width, which allows doing engravings in color on metals
- Compact and portable, the desktop model has a small footprint and can be easily transported to the worksite.
- Flexible, the open design and adjustable Z-Axis allow working on objects of different shapes and sizes up to 30” in height.
- Practical, dual red dot easy focusing device for two lens sizes and work area LED lights.
- Easy operation with EZCAD2/EZCAD-LITE software that supports all standard design file formats AI, DXF, DST, PLT, BMP, JPG, GIF, TGA, PNG, TIF, etc.
- 2-year manufacturer warranty. Online technical support. EZCAD video tutorials in English. Check the Q&A section for Installation Instructions.
Product |
Unit |
Value |
Product Model |
YDFLP-200-M7-M-R |
|
M2 |
<1.6 |
|
Armored Cable Length |
m |
5 |
Nominal Average Output Power |
W |
>200 |
Maximum Pulse Energy |
mJ |
1.5 |
Pulse Repetition Rate Range |
kHz |
1 ~ 4000 |
Pulse Duration |
ns |
2 ~ 500 |
Output Power Stability |
% |
<5 |
Cooling Method |
Air Cooled |
|
Supply DC Voltage (VDC) |
V |
48 |
Maximum Power Consumption |
W |
<800 |
Environmental Supply Current |
A |
>16 |
Central Emission Wavelength |
nm |
1064 |
Emission Bandwidth@3dB |
nm |
<20 |
Polarization Orientation |
Random |
|
Anti-high Reflection |
Yes |
|
Output Beam Diameter |
mm |
7±0.5 |
Output Power Tuning Range |
% |
0 ~ 100 |
Operation Temperature |
℃ |
0 ~ 40 |
Storage Temperature |
℃ |
-10 ~ 60 |
Weight |
kg |
24.8 |
Size(L×W×H) |
mm |
430 × 351 × 133 |
Shipping & Returns
Shipping & Returns
Fee USA Shipping
We stock the most popular machines in our warehouse in Jersey City, NJ
We ship equipment on the same or the next day after receiving the order. We inspect the package and test the laser before sending it out to the customer. We ship by UPS ground service or Fedex. Coast-to-coast shipping usually takes 4-5 days.
30-Days Return Policy
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can contact us at support@lasersonly.com. If your return is accepted, we’ll send you instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
The customer is responsible for expenses associated with return shipping.
- Free US Shipping
- 2-Year Warranty
- Lifetime Support















Feature | Value |
---|---|
Laser Source | 200W JPT MOPA M7 |
Galvanometer | High-Speed ZBTK with Silicon Mirrors |
Control Board | Original BJJCZ DLC2-M4 |
Power Supplies | MeanWell 5V, 15V, 48V |
Software | EZCAD2 or EZCAD3 (Windows 64-bit, OS 7 & 10) |
Dual Red Dot Device | Easy focusing for 2 lens sizes |
Z-Axis Control | Motorized |
F-Theta Field Lens | F254 – working area 175 × 175 mm, Focal Length 289.9 mm |
EXTRA Lens* | F430 – working area 300 × 300 mm, Focal Length 420 mm |
Feature | Value |
---|---|
Product Model | YDFLP-200-M7-M-R |
Beam Quality Factor | < 1.6 |
Armored Cable Length | 5 m |
Nominal Average Output Power | > 200W |
Maximum Pulse Energy | 1.5 mJ |
Pulse Repetition Rate Range | 1 ~ 4000 kHz |
Pulse Duration | 2 ~ 500 ns |
Output Power Stability | < 5% |
Cooling Method | Air Cooled |
Supply DC Voltage | 48 VDC |
Maximum Power Consumption | < 800W |
Environmental Supply Current | > 16A |
Central Emission Wavelength | 1064 nm |
Emission Bandwidth @ 3dB | < 20 nm |
Polarization Orientation | Random |
Anti-high Reflection | Yes |
Output Beam Diameter | 7 ± 0.5 mm |
Output Power Turning Range | 0 ~ 100% |
Operation Temperature | 0 ~ 40 °C |
Storage Temperature | -10 ~ 60 °C |
Weight | 24.8 kg |
Dimension (W×D×H) | 430 × 351 × 133 mm |

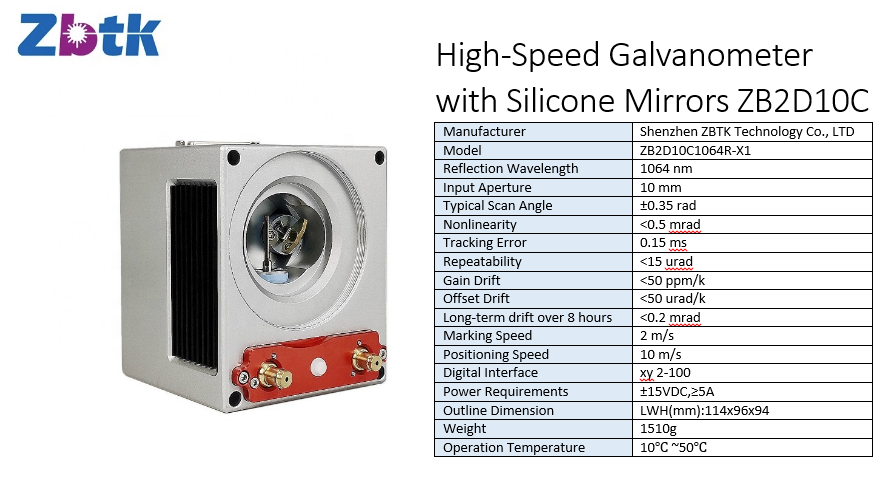

Feature | Value |
---|---|
Manufacturer | ZBTK Tech Co |
Model | ZB2D10C1064R-X1 |
Reflection Wavelength | 1064 nm |
Input Aperture | 10 mm |
Typical Scan Angle | 0.35 rad |
Non-Linearity | < 0.5 mrad |
Tracking Error | 0.15 ms |
Repeatability | < 15 μrad |
Gain Drift | < 50 ppm/K |
Offset Drift | < 50 μrad/K |
Long-Term Drift (> 8 h) | < 0.2 mrad |
Marking Speed | 2 m/s |
Positioning Speed | 10 m/s |
Digital Interface | XY2-100 |
Power Requirements | 15 VDC, 5A |
Outline Dimensions | 114 × 96 × 94 mm |
Weight | 1510 g |
