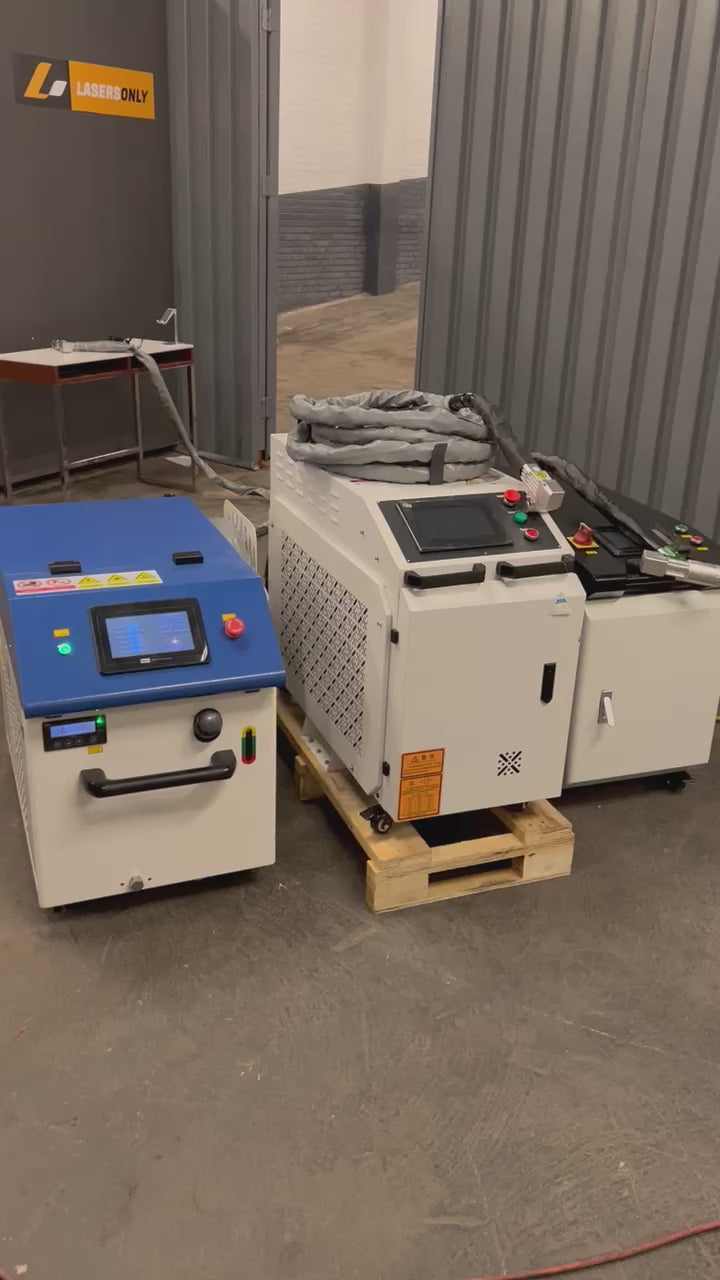

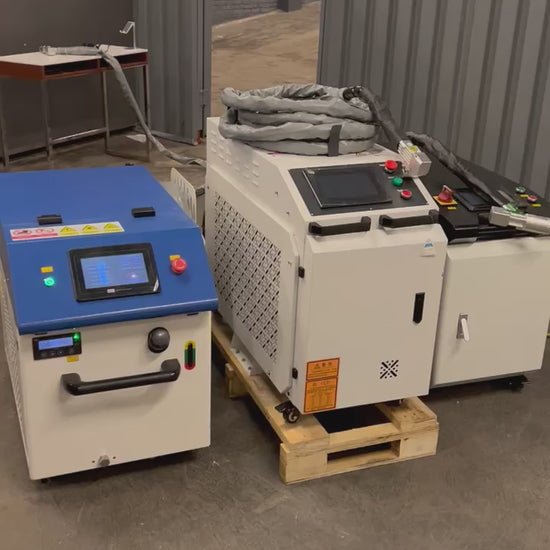

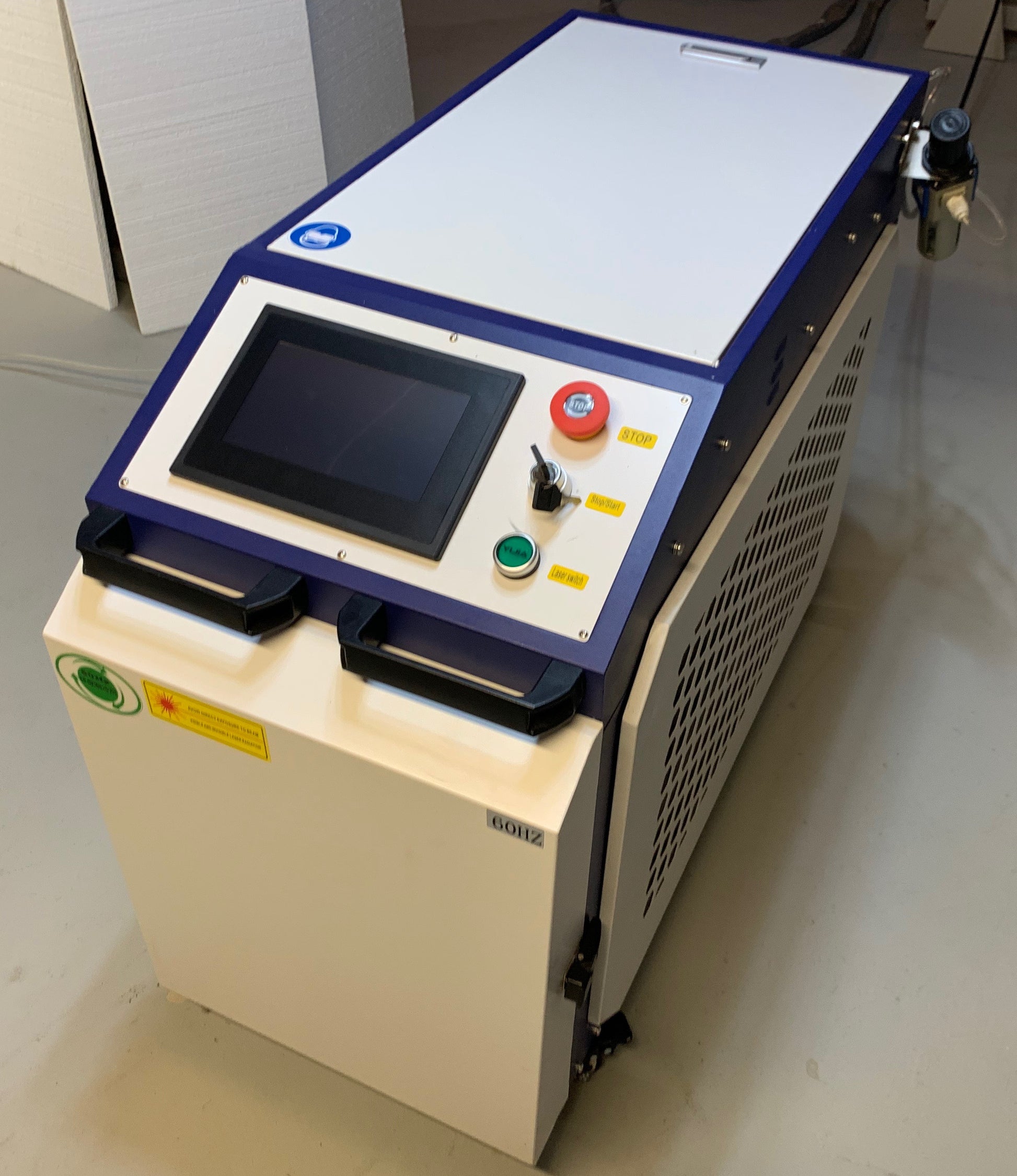

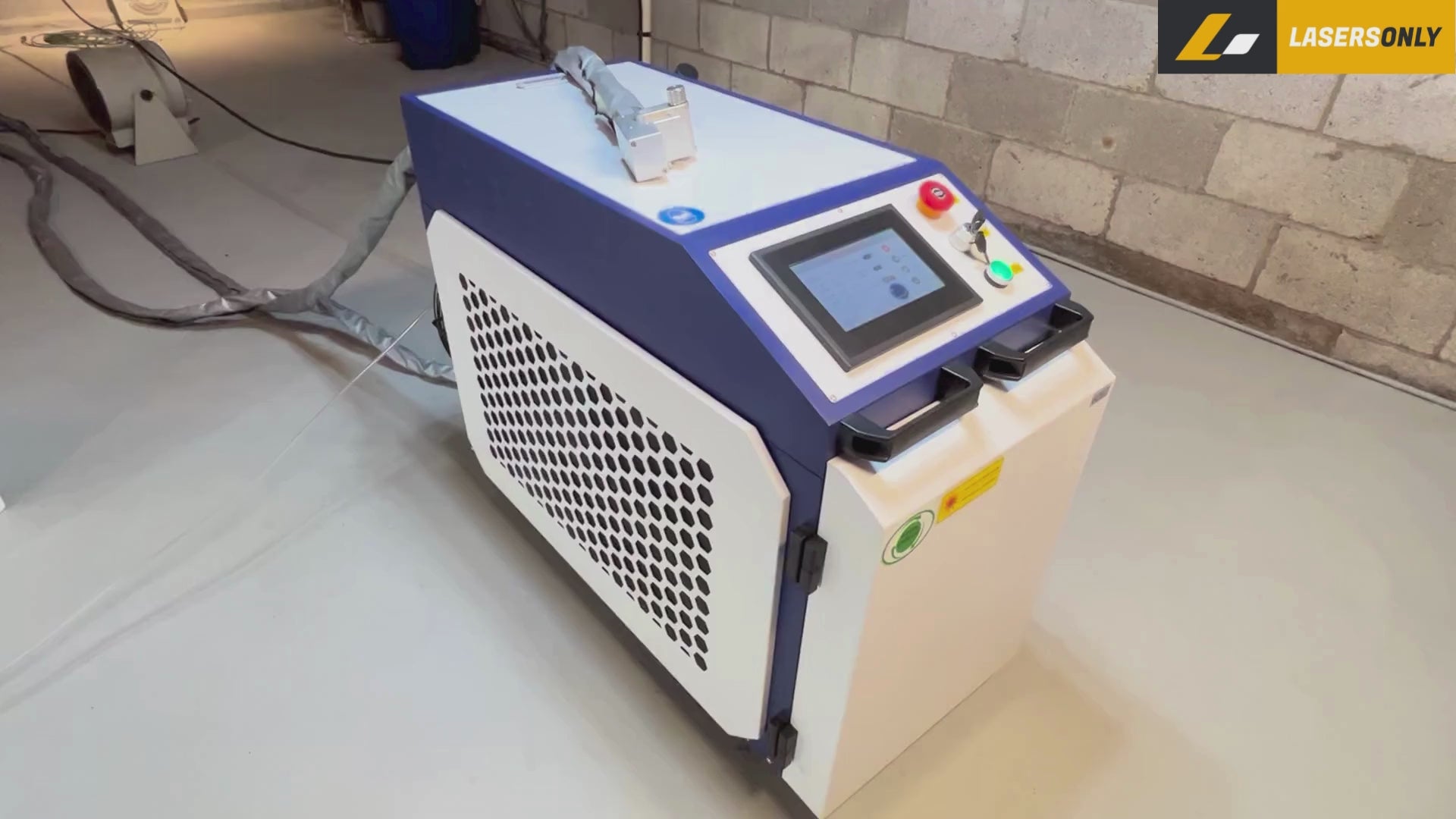

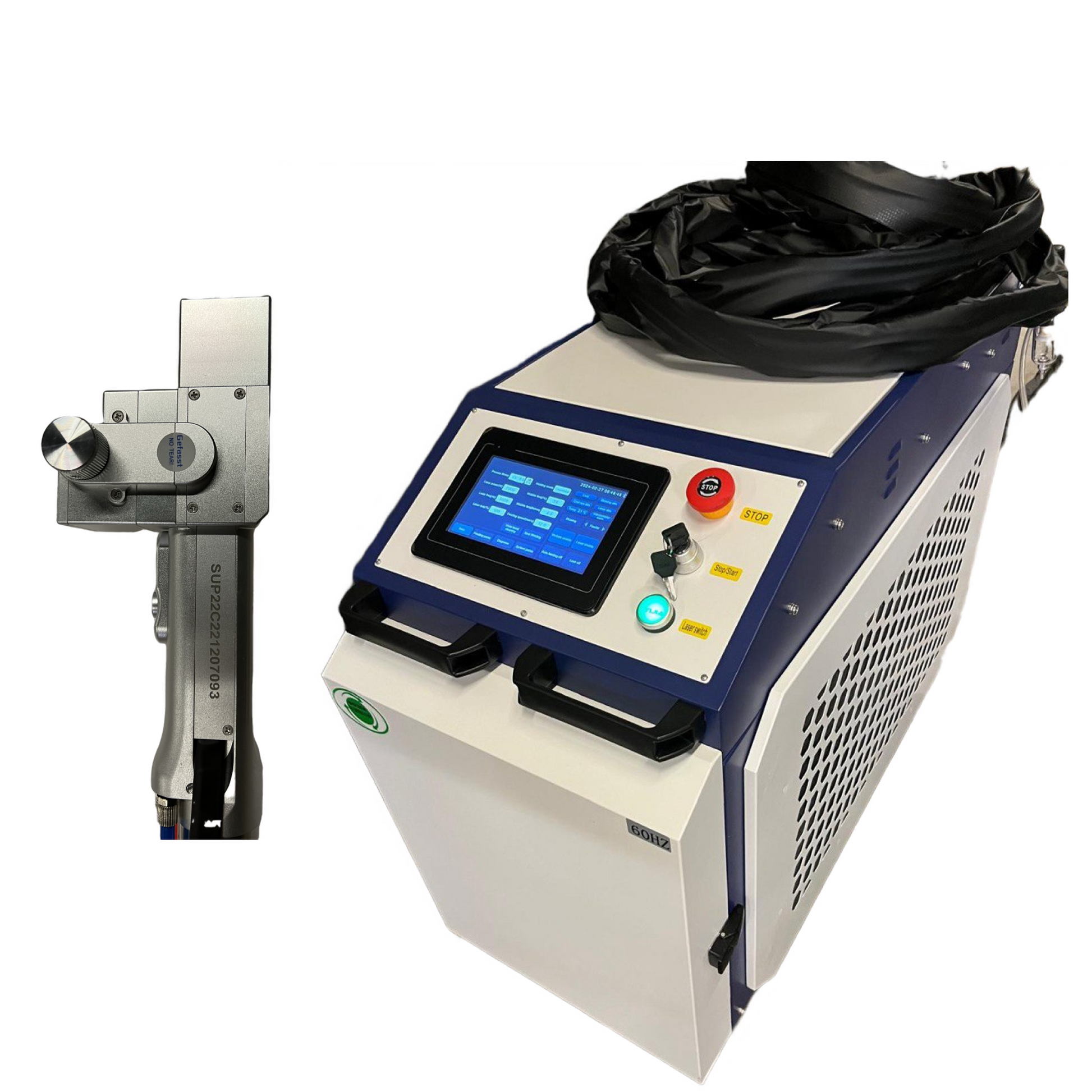

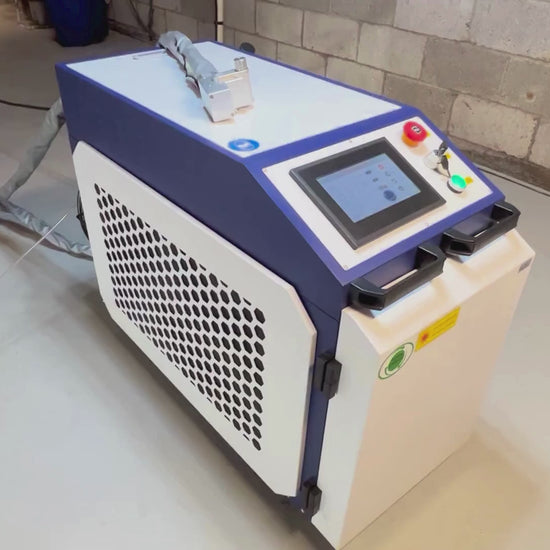

2000W SUP Fiber Laser Cleaning Rust Removal Machine

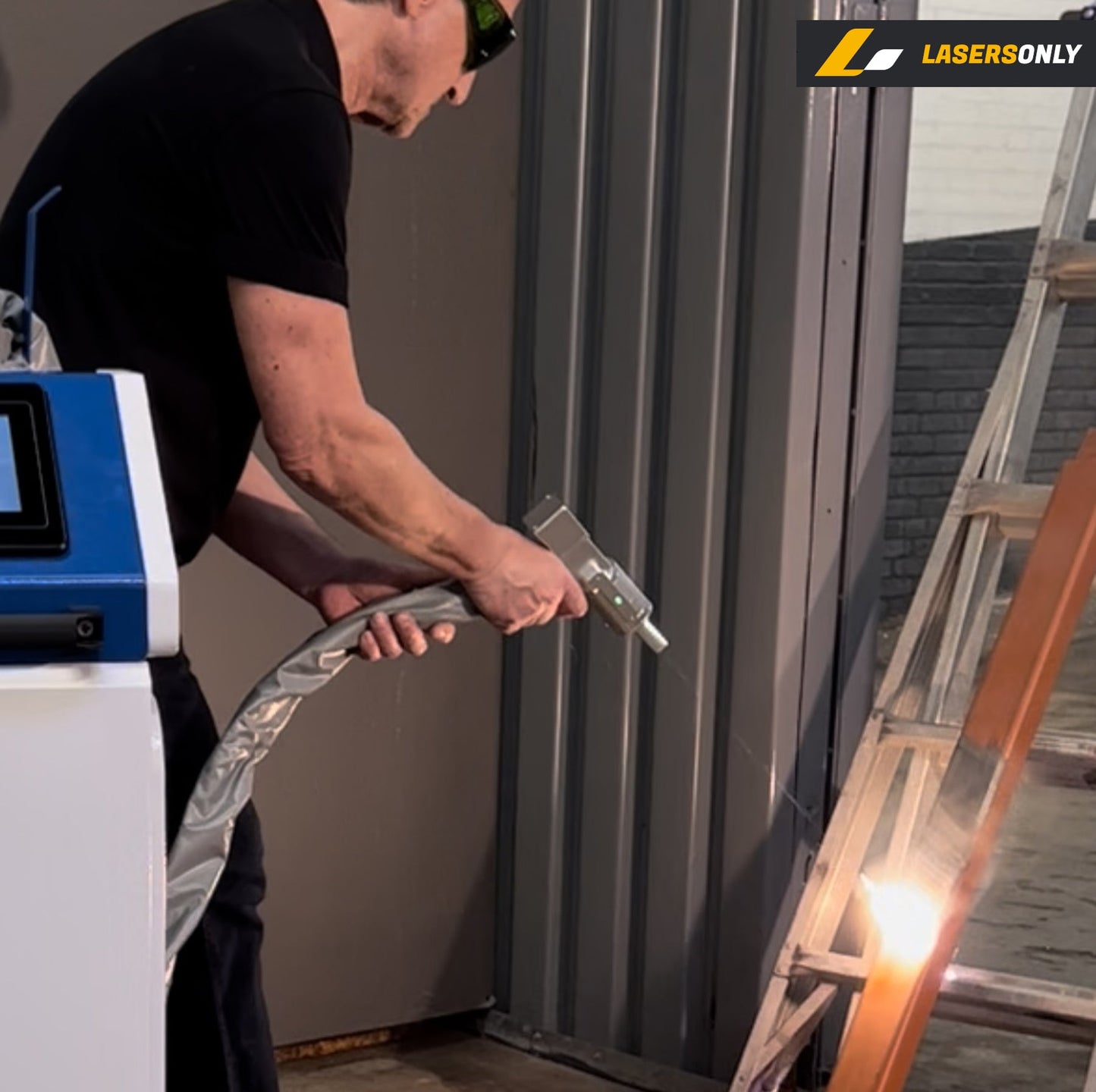

2000 Fiber Laser Rust Removing / Cleaning Machine can remove rust, paint, oil, and oxide film on all metal and some non-metal surfaces, as well as the cleaning of black ash, carbon deposition, and oil stain on the surface of parts after welding. Laser cleaning is a preferred method to prepare surfaces; it significantly increases adherence in powder coating and painting, improves cleaning before and after welding, and it’s a perfect tool for restoration projects.

Laser Cleaning equipment can be used on various metal substrates (titanium alloys, aluminum alloys, high-temperature alloys, stainless steel, carbon steel, etc.), semiconductor materials, etc., or fully automatic cleaning systems. The machine can be used in many industries, such as aviation, aerospace, rail transit, shipbuilding, automobile, electronic industry, and many more. They could be efficiently used for rust removal on bridges, and large metal facilities, such as stadiums, factories, and many other metal structures.

A laser cleaning machine is a great addition to any modern manufacturing and fabrication shop. Laser cleaning utilizes the high-energy laser source to perform a non-contact cleaning process without damage or deformities to the treated substrate, providing high efficiency and an environmentally safe work environment. The non-contact method ensures maintenance-free and cost-effective operation without costly and hazardous consumables. This equipment significantly improves the quality and effectiveness of surface cleaning operations.  This process is an ideal choice for the new generation of industrial cleaning technology.

Product Features

• Eco-Friendly - Laser cleaning is an environmentally-friendly method; that doesn’t pollute or use hazardous cleaning agents
• Excellent Results - Thanks to the SUP controller and handheld scanner technology, producing laser beams up to 300mm wide and outstanding cleaning effects
• User-Friendly - Quick setup and easy operation with a short learning curve by experienced and novice technicians
• Usability - Operation convenience thanks to the compact design with built-in water chiller and standard power requirements - single phase 220V
• Portability - Easy Reach thanks to the 33 feet long fiber optics cable and rolling cabinet for effortless transportation
• Free Maintenance - Thanks to the long lifespan of the laser source and no consumables
• Versatile Applications - Laser cleaning technology can be used for various material processing needs within different industries such as aerospace, automotive, military & defense, power generation, nuclear facilities, and maintenance & repair facilities

Product Specification

Model No.	CW2000-FLC3-RUIDA
Laser Power	2000W
Power Stability	±1%
Laser Wavelength	1080 ± 10 nm
Laser Mode	Continuous Wave
Laser Beam Quality	< 1.5
Power Consumption	4.5 KW
Power Supply	AC 220V Single Phase
Fiber Optics Cable	33 feet

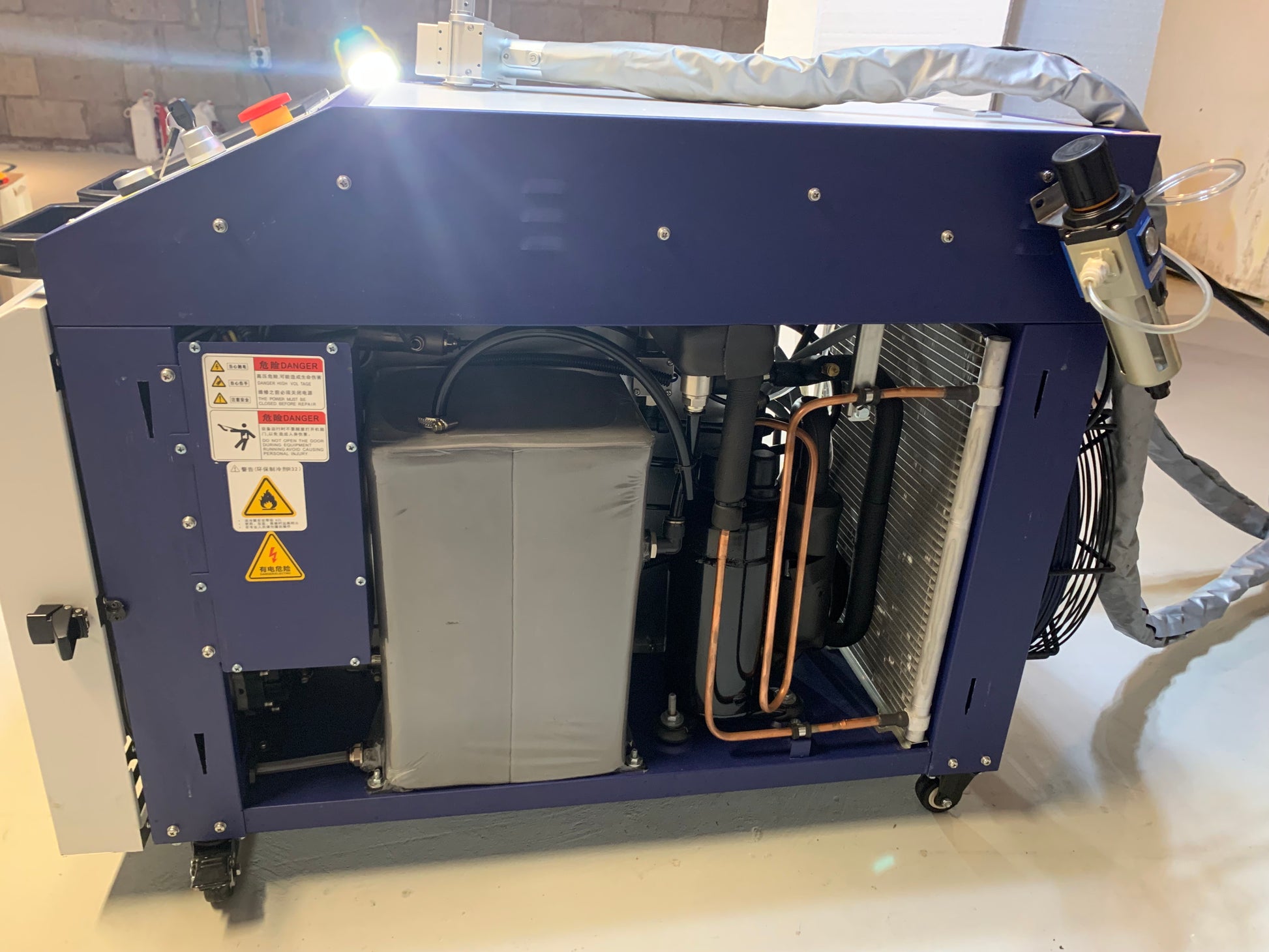

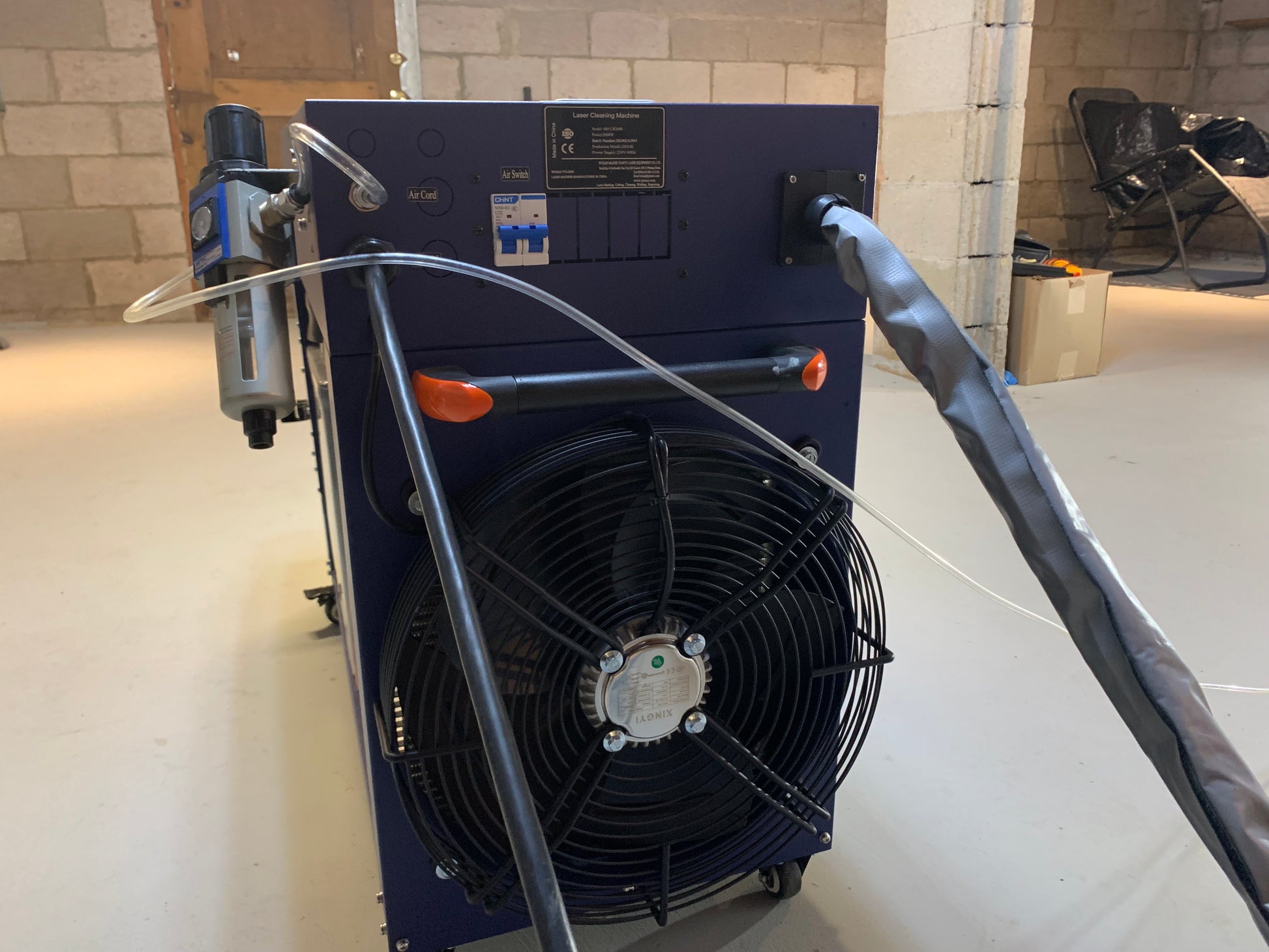

Cooling Method	Integrated Water Cooling
Dimensions	9030*600*1200mm
Weight	195KG
Working Environment	5~35℃, 5%~75%

Laser Source: Technical Parameters

Maxphotonics 1000X-1500X-2000X SINGLE MODULE CW FIBER LASER

MFSC Single Module CW Fiber Laser Source has excellent beam quality and high stability, with a compact structure and water-cooling method.

Product Advantages

• Stable, reliable, and energy-saving operation
• Maintenance-free, moisture-protected construction
• Precision thanks to superior beam quality
• Long product life with a rigid, sealed design

Technical Parameters

Models	MFSC-1000X	MFSC-1500X		MFSC-2000X
OPTICAL SPECIFICATIONS
Nominal Power	1000W	1500W		2000W
Mode of Operation	CW/Modulated
Polarization	Random
Power Tunability	10 to 100%
Wavelength	1080 ± 10 nm
Power Stability	±1 %
Laser Beam Quality, BPP	≤1.5 mm x mrad (50μm QBH)
Modulation Frequency	≤20 kHz
Preview Red Light Power	150 μW			200 μW
FIBER DELIVERY SYSTEM
Interface	QBH (LOC)
Length	15m standard, other lengths optional
Diameter	50 (25) μm		50 (35) μm
Bending Radius	200 mm
ELECTRICAL RATINGS
Supply Voltage	220VAC (-15% to +10%) Single-phase
OTHER SPECIFICATIONS
Operating Temperature	+10 to +40℃
Storage Temperature	-10 to +60℃
Humidity	10 to 85%
Cooling Method	Water Cooling
Cooling Medium	Distilled water/ Glycol Antifreeze
Dimension	482.6×800×193mm (W×D×H)			483×950×193 mm
Weight	53(±3) kg	57(±3) kg		72(±3) kg

Controller & Laser Gun:  Technical Parameters

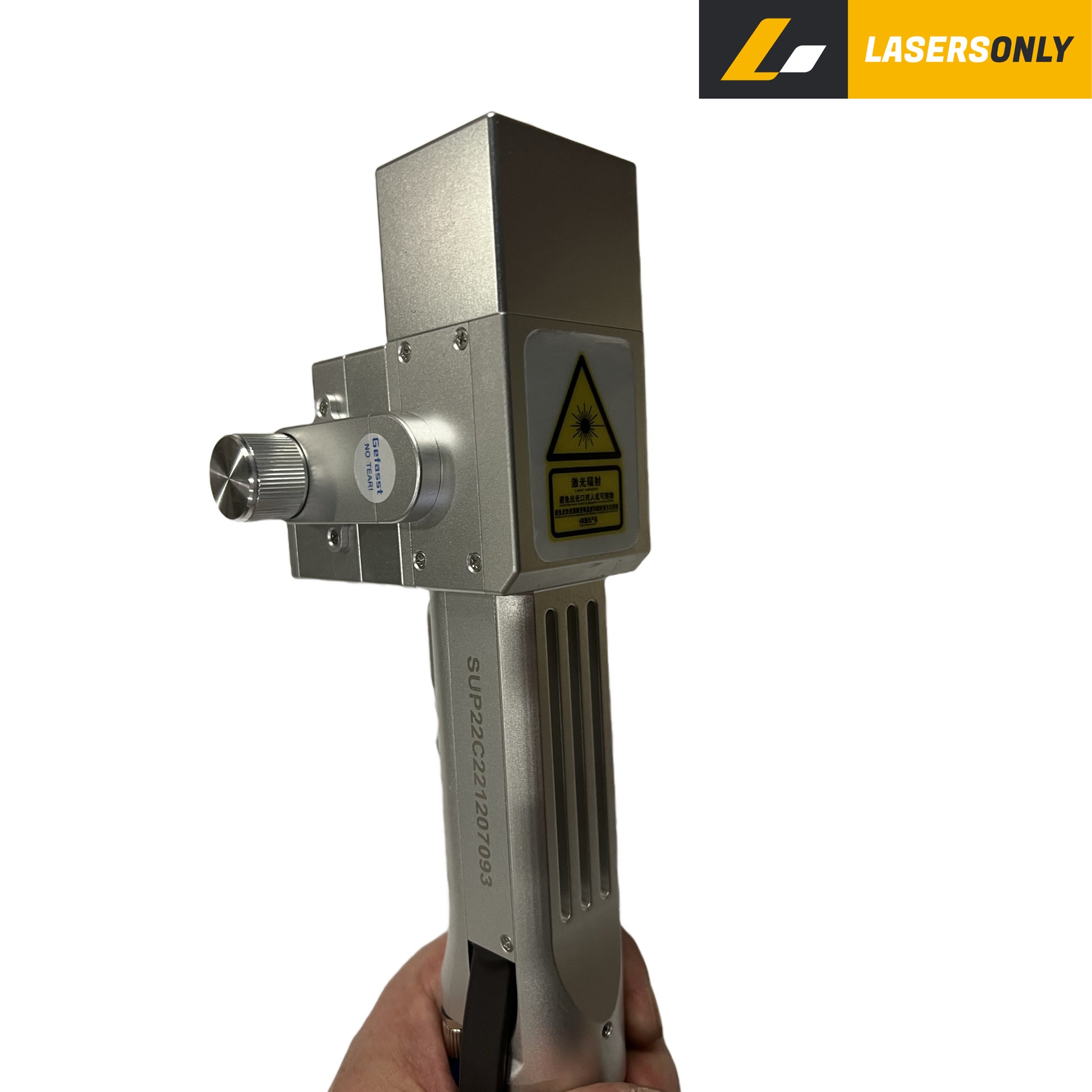

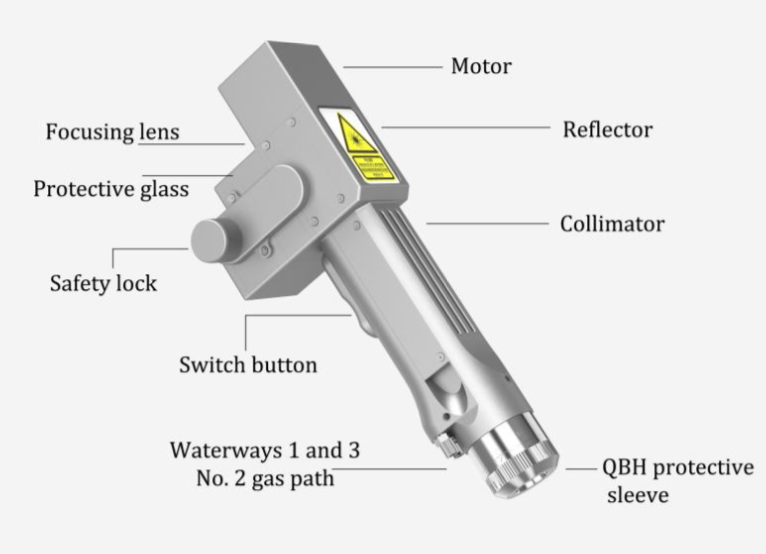

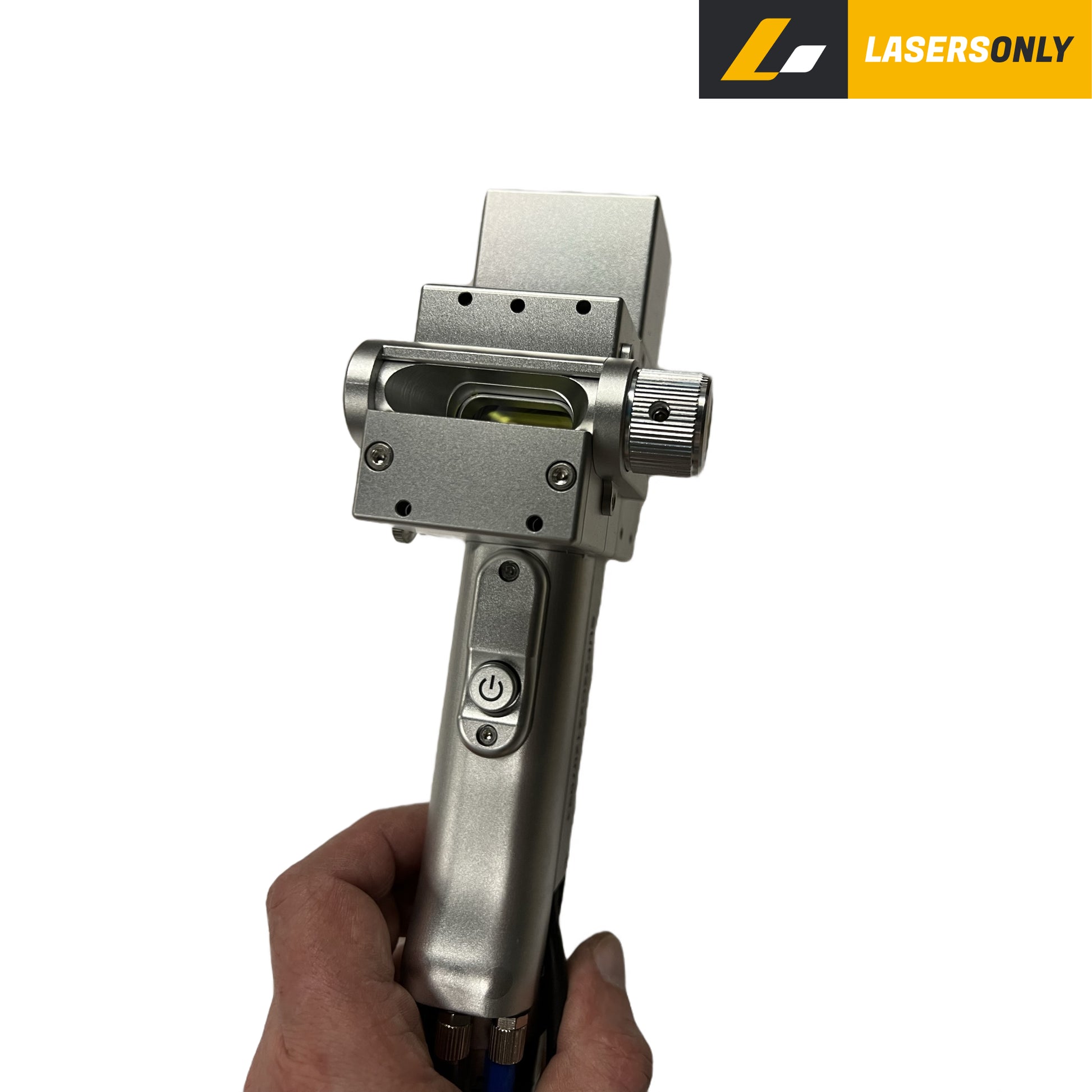

SUP22C Laser Cleaning Head

SUP22C is an improved version of the SUP21C model with better insulation, stability, and maintenance; it’s lighter and has a more compact design.

• Proprietary control system with multiple safety alarms and automatic power and laser shut-down
• Real-time system monitoring and easy troubleshooting
• Compatible with various fiber laser types
• Lightweight and compact design, easy to operate the handheld gun
• Stable operation and excellent cleaning results

Specifications

Supply Voltage, V	220+10%V AC 50 / 60 Hz
Placement Environment	Flat, No Vibration, and Impact
Working Temperature, C	10 - 40
Working Environment Humidity, %	< 70
Cooling Method	Water Cooling
Applicable Wavelength	1064nm (+10nm)
Applicable Power	< 3000W
Collimating Lens	D16*5 / F60
Focusing Lens	D20*3.5 (F400 / F600 / F800)
Reflective Mirrors	20*15.2*T1.6
Protective Windows Specifications	D30*T5
Maximum Support Pressure	15 Bar
Adjustment Range of Spot	+10mm
Scan Width-Wash	F400-0~150mm
	F600-0~225mm
	F800-0~300mm
Weight	0.7kg



Free USA Shipping

We stock the most popular machines in our warehouse in Jersey City, NJ

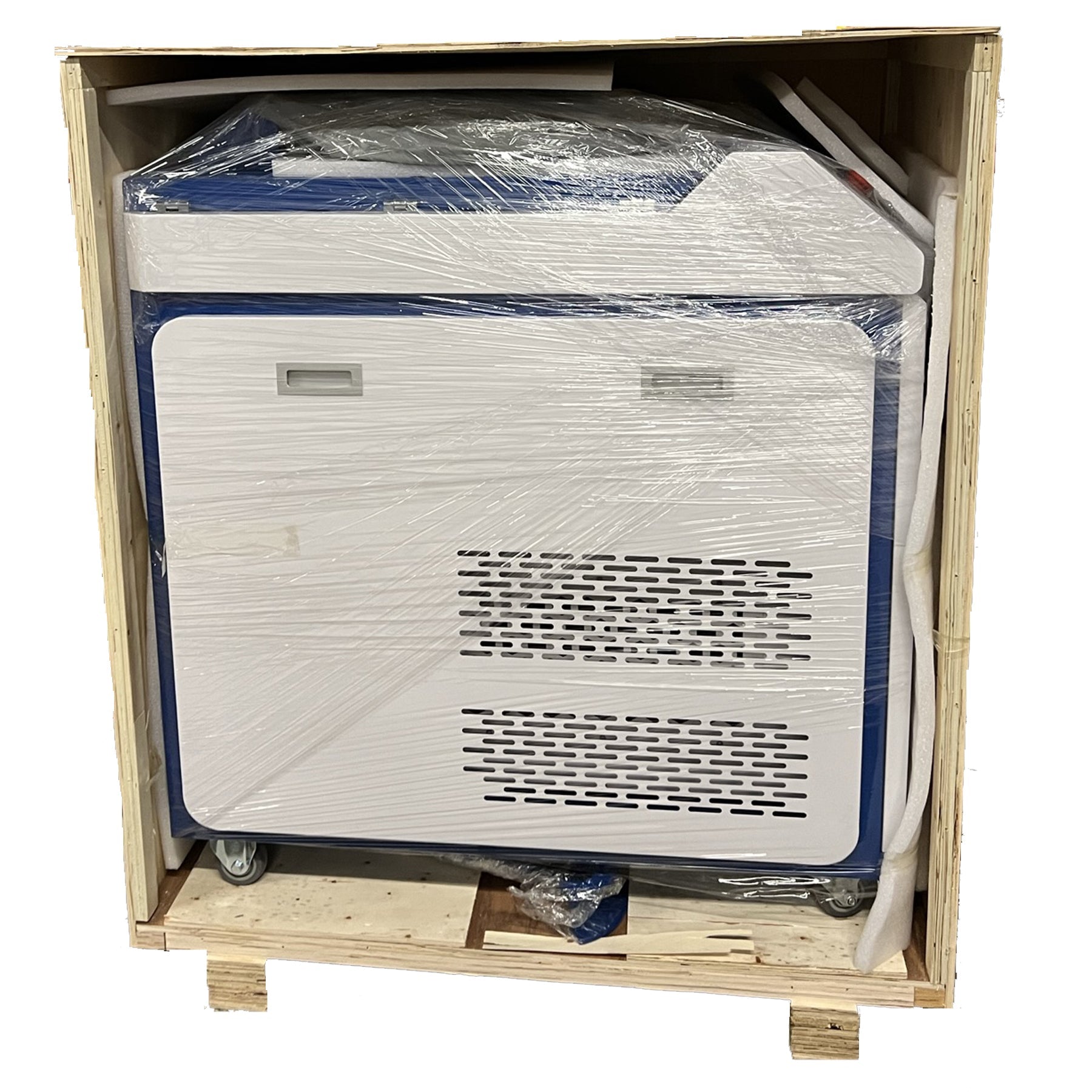

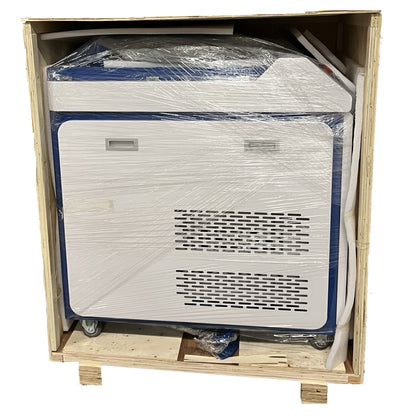

We ship equipment on the same or the next day after receiving the order. We inspect the package and test the laser before sending it out to the customer.
