From rust removal on bridges to cleaning large metal facilities like stadiums and factories, this 2000W laser cleaning machine excels in a wide range of industrial cleaning tasks. Experience improved efficiency and safety with the latest generation of industrial cleaning technology.
Our 2000W CW Fiber Laser Rust Removing/Cleaning Machine is built to last, providing top-notch surface cleaning that elevates your production processes to new heights. Don't compromise on the cleanliness of your surfaces – invest in the 2000W CW Fiber Laser Rust Removing/Cleaning Machine and witness the transformative power of laser cleaning technology. Maximize your productivity, ensure safety, and uphold environmental standards with this essential tool for any forward-thinking business.
2000 Fiber Laser Rust Removing / Cleaning Machine can remove rust, paint, oil, and oxide film on all metal and some non-metal surfaces, as well as the cleaning of black ash, carbon deposition, and oil stain on the surface of parts after welding. Laser cleaning is a preferred method to prepare surfaces; it significantly increases adherence in powder coating and painting, improves cleaning before and after welding, and it’s a perfect tool for restoration projects.
Laser Cleaning equipment can be used on various metal substrates (titanium alloys, aluminum alloys, high-temperature alloys, stainless steel, carbon steel, etc.), semiconductor materials, etc., or fully automatic cleaning systems. The machine can be used in many industries, such as aviation, aerospace, rail transit, shipbuilding, automobile, electronic industry, and many more. They could be efficiently used for rust removal on bridges, and large metal facilities, such as stadiums, factories, and many other metal structures.
A laser cleaning machine is a great addition to any modern manufacturing and fabrication shop. Laser cleaning utilizes the high-energy laser source to perform a non-contact cleaning process without damage or deformities to the treated substrate, providing high efficiency and an environmentally safe work environment. The non-contact method ensures maintenance-free and cost-effective operation without costly and hazardous consumables. This equipment significantly improves the quality and effectiveness of surface cleaning operations. This process is an ideal choice for the new generation of industrial cleaning technology.
Product Features
- Eco-Friendly - Laser cleaning is an environmentally-friendly method; that doesn’t pollute or use hazardous cleaning agents
- Excellent Results - Thanks to the SUP controller and handheld scanner technology, producing laser beams up to 300mm wide and outstanding cleaning effects
- User-Friendly - Quick setup and easy operation with a short learning curve by experienced and novice technicians
- Usability - Operation convenience thanks to the compact design with built-in water chiller and standard power requirements - single phase 220V
- Portability - Easy Reach thanks to the 33 feet long fiber optics cable and rolling cabinet for effortless transportation
- Free Maintenance - Thanks to the long lifespan of the laser source and no consumables
- Versatile Applications - Laser cleaning technology can be used for various material processing needs within different industries such as aerospace, automotive, military & defense, power generation, nuclear facilities, and maintenance & repair facilities
Product Specification
| Model No. | CW2000-FLC3-RUIDA |
| Laser Power | 2000W |
| Power Stability | ±1% |
| Laser Wavelength | 1080 ± 10 nm |
| Laser Mode | Continuous Wave |
| Laser Beam Quality | < 1.5 |
| Power Consumption | 4.5 KW |
| Power Supply | AC 220V Single Phase |
| Fiber Optics Cable | 33 feet |
| Cooling Method | Integrated Water Cooling |
| Dimensions | 9030*600*1200mm |
| Weight | 195KG |
| Working Environment | 5~35℃, 5%~75% |
Laser Source: Technical Parameters
Maxphotonics 1000X-1500X-2000X SINGLE MODULE CW FIBER LASER
MFSC Single Module CW Fiber Laser Source has excellent beam quality and high stability, with a compact structure and water-cooling method.
Product Advantages
- Stable, reliable, and energy-saving operation
- Maintenance-free, moisture-protected construction
- Precision thanks to superior beam quality
- Long product life with a rigid, sealed design
Technical Parameters
|
Models
|
MFSC-1000X
|
MFSC-1500X
|
MFSC-2000X
|
|
|
OPTICAL SPECIFICATIONS
|
||||
|
Nominal Power
|
1000W
|
1500W
|
2000W
|
|
|
Mode of Operation
|
CW/Modulated
|
|||
|
Polarization
|
Random
|
|||
|
Power Tunability
|
10 to 100%
|
|||
|
Wavelength
|
1080 ± 10 nm
|
|||
|
Power Stability
|
±1 %
|
|||
|
Laser Beam Quality, BPP
|
≤1.5 mm x mrad (50μm QBH)
|
|||
|
Modulation Frequency
|
≤20 kHz
|
|||
|
Preview Red Light Power
|
150 μW
|
200 μW
|
||
|
FIBER DELIVERY SYSTEM
|
||||
|
Interface
|
QBH (LOC)
|
|||
|
Length
|
15m standard, other lengths optional
|
|||
|
Diameter
|
50 (25) μm
|
50 (35) μm
|
||
|
Bending Radius
|
200 mm
|
|||
|
ELECTRICAL RATINGS
|
||||
|
Supply Voltage
|
220VAC (-15% to +10%) Single-phase
|
|||
|
OTHER SPECIFICATIONS
|
||||
|
Operating Temperature
|
+10 to +40℃
|
|||
|
Storage Temperature
|
-10 to +60℃
|
|||
|
Humidity
|
10 to 85%
|
|||
|
Cooling Method
|
Water Cooling
|
|||
|
Cooling Medium
|
Distilled water/ Glycol Antifreeze
|
|||
|
Dimension
|
482.6×800×193mm (W×D×H)
|
483×950×193 mm
|
||
|
Weight
|
53(±3) kg
|
57(±3) kg
|
72(±3) kg
|
|
Controller & Laser Gun: Technical Parameters

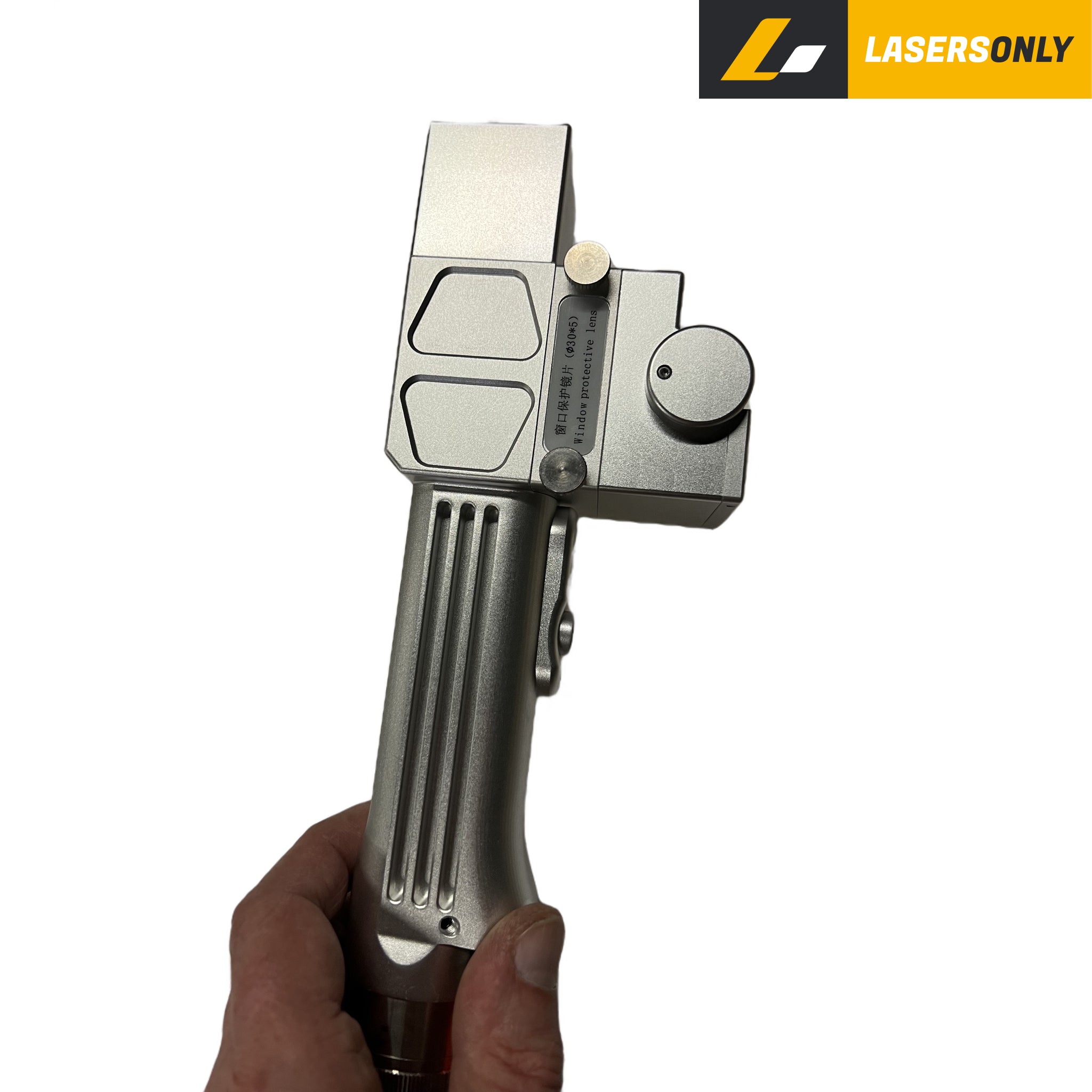

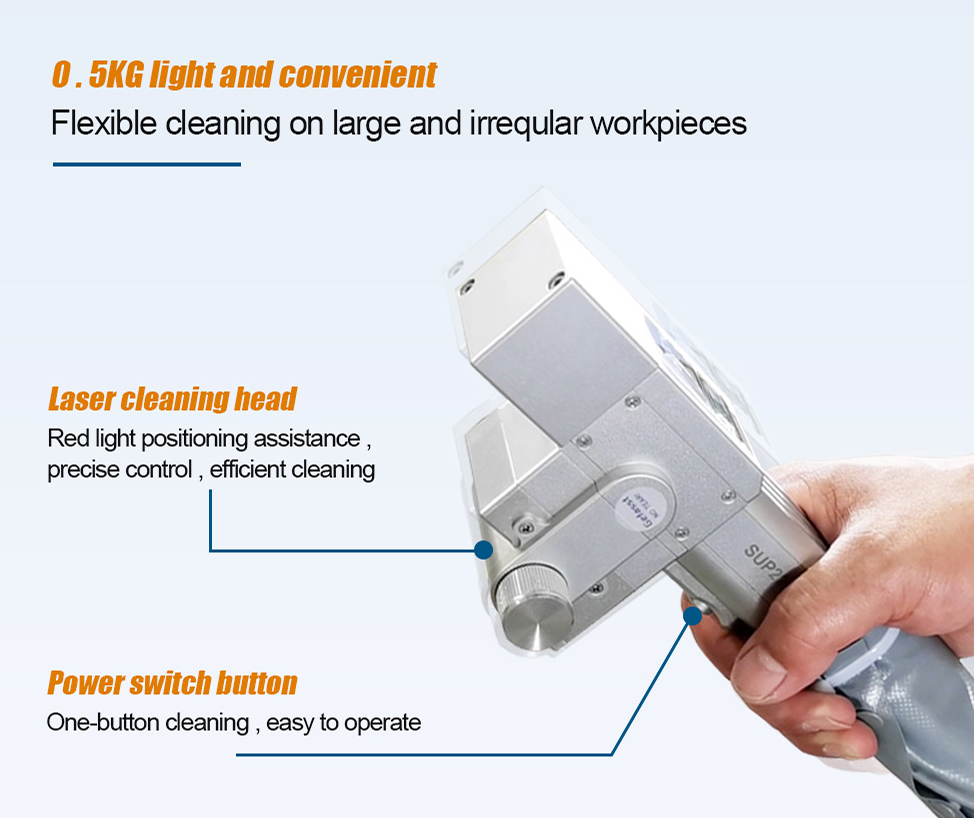

SUP22C Laser Cleaning Head
SUP22C is an improved version of the SUP21C model with better insulation, stability, and maintenance; it’s lighter and has a more compact design.
- Proprietary control system with multiple safety alarms and automatic power and laser shut-down
- Real-time system monitoring and easy troubleshooting
- Compatible with various fiber laser types
- Lightweight and compact design, easy to operate the handheld gun
- Stable operation and excellent cleaning results
Specifications
| Supply Voltage, V | 220+10%V AC 50 / 60 Hz |
| Placement Environment | Flat, No Vibration, and Impact |
| Working Temperature, C | 10 - 40 |
| Working Environment Humidity, % | < 70 |
| Cooling Method | Water Cooling |
| Applicable Wavelength | 1064nm (+10nm) |
| Applicable Power | < 3000W |
| Collimating Lens | D16*5 / F60 |
| Focusing Lens | D20*3.5 (F400 / F600 / F800) |
| Reflective Mirrors | 20*15.2*T1.6 |
| Protective Windows Specifications | D30*T5 |
| Maximum Support Pressure | 15 Bar |
| Adjustment Range of Spot | +10mm |
| Scan Width-Wash | F400-0~150mm |
| F600-0~225mm | |
| F800-0~300mm | |
| Weight | 0.7kg |
2000W Fiber Laser Rust Removal Machine
Product Description
Product Specification
| Type | CW2000-FLC-SUP |
| Laser source | CW Fiber |
| Laser Power | 2000W |
| Fiber cable | 33 feet |
| Wavelength | 1080nm |
| Clean speed | ≤50M²/Hour |
| Beam width | Up to 300 mm |
| Scan speed | 0-7000mm/s |
| Cooling | Water Cooling |
| Voltage | Single Phase 220V |
Laser Source: Technical Parameters
| Brand | Raycus | |
| Models | RFL-C2000S-CE | |
| Nominal Power | W | 2000 |
| Mode of Operation | CW/Modulated | |
| Polarization | Random | |
| Power Tunability | % | 10 to 100 |
| Wavelength | nm | 1080 ± 5 |
| Output Power Instability | % | ±1.5 |
| Laser Beam Quality | M2 <1.5 | |
| Modulation Frequency | kHz | 20 |
| Preview Red Light Power | mW | 0.1~1 |
| Interface | QBH (LOC) | |
| Output Fiber Length | m | 20 (customizable) |
| Output Fiber Core Diameter | μm | 50 (customizable) |
| Control Mode | RS-232/AD/Ethernet | |
| Bending Working Radius | mm | < 300 |
| Input power | VAC | 220±10%, Single Phase Wire Connect |
| Operating Temperature | °C | 10 to +40 |
| Storage Temperature | °C | -10 to +60 |
| Humidity | % | <70 |
| Cooling Method | Water Cooling | |
| Dimension | mm | 440*586*149 |
| Weight | kg | <28 |
