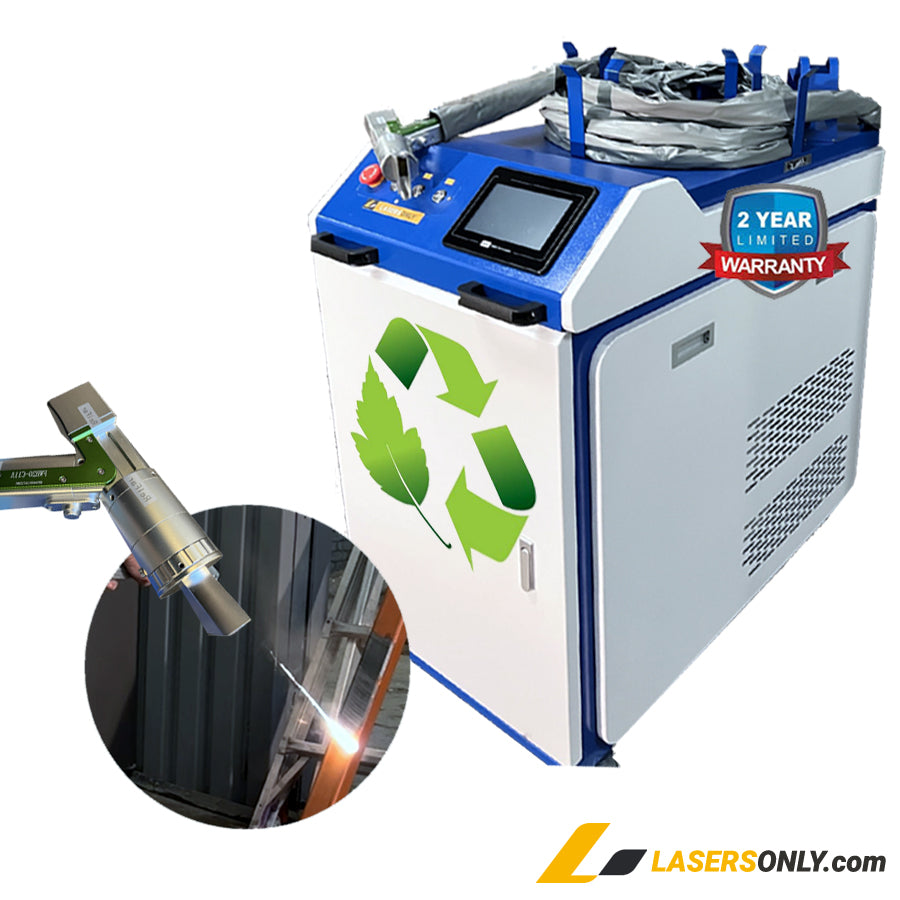

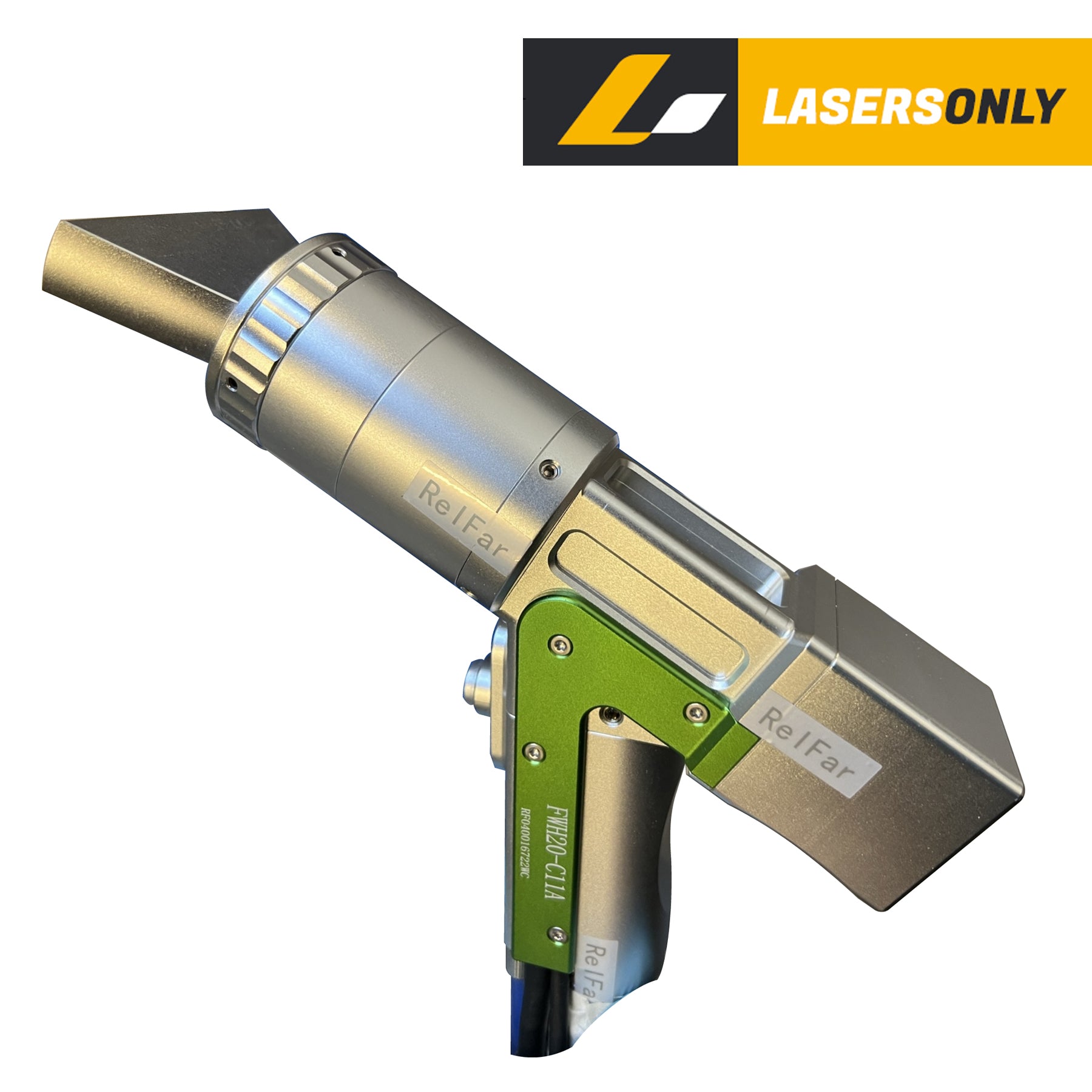

CW 2000W Fiber Laser Cleaning Rust Removal Machine
Brand: Lasers Only SKU: CW2000-FLC-RUIDA- Regular price
- $16,899.00
- Sale price
-
$16,899.00
$19,200.00 - Regular price
- Unit price
- per
2000W Fiber Laser Rust Removing / Cleaning Machine can remove rust, paint, oil, and oxide film on all metal and some non-metal surfaces, as well as the cleaning black ash, carbon deposition, and oil stain on the surface of parts after welding.
2000W Laser Cleaning system can be used on various metal substrates (titanium alloys, aluminum alloys, high-temperature alloys, stainless steel, carbon steel, etc.), semiconductor materials, etc., or fully automatic cleaning systems.

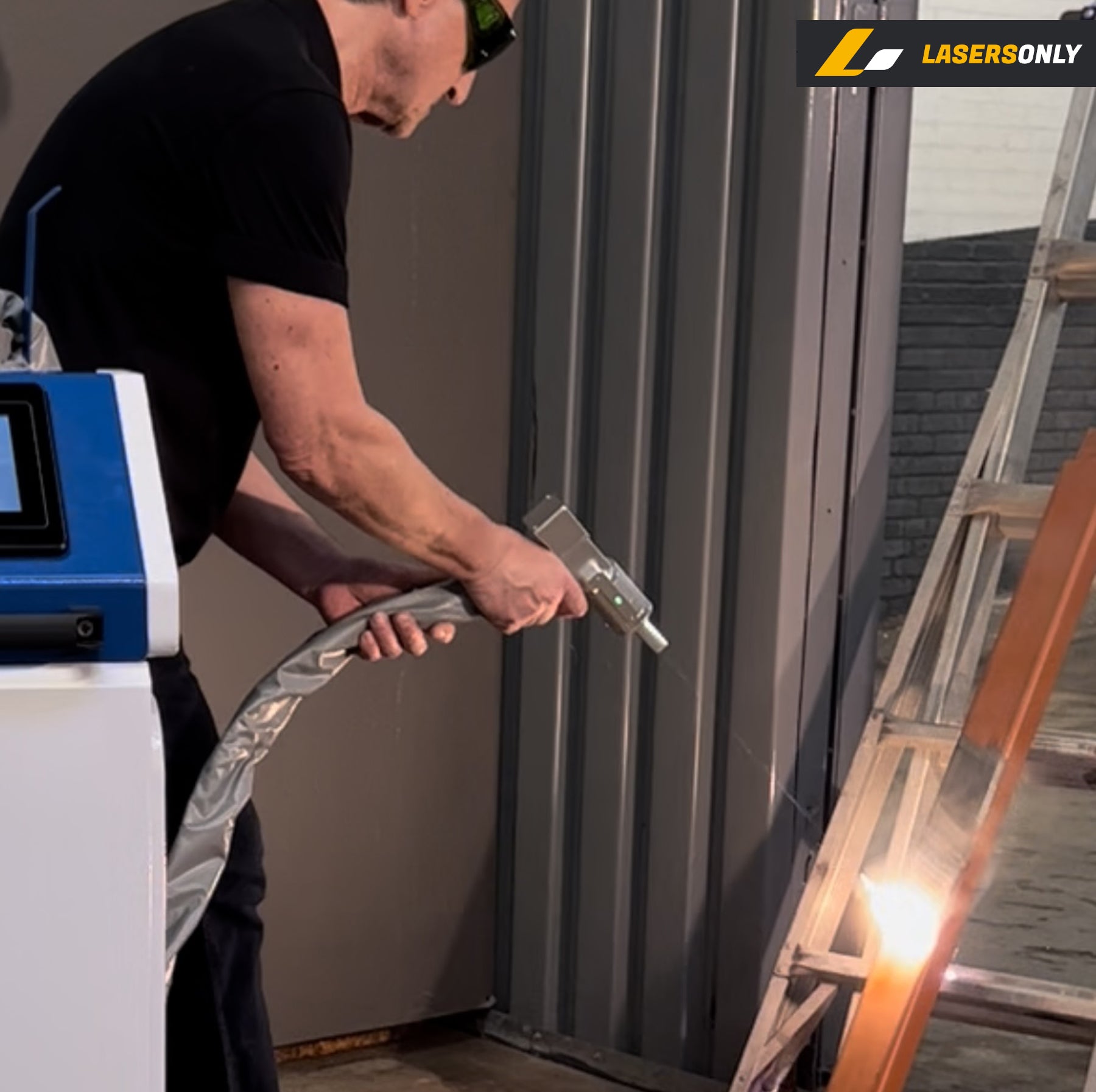

Laser cleaning machines have been used in many industries such as aviation, aerospace, rail transit, shipbuilding, automobile, electronic industry, and many more. It could be efficiently used for rust removal on bridges, and large metal facilities, such as stadiums, factories, and many other metal structures.
Laser cleaning is a preferred method to prepare surfaces; it significantly increases adherence in powder coating and painting, improves cleaning before and after welding, and it’s a perfect tool for restoration projects.
2000W Fiber Laser Rust Removing / Cleaning Machine can remove rust, paint, oil, and oxide film on all metal and some non-metal surfaces, as well as the cleaning black ash, carbon deposition, and oil stain on the surface of parts after welding.
2000W Laser Cleaning system can be used on various metal substrates (titanium alloys, aluminum alloys, high-temperature alloys, stainless steel, carbon steel, etc.), semiconductor materials, etc., or fully automatic cleaning systems.
Laser cleaning machines have been used in many industries such as aviation, aerospace, rail transit, shipbuilding, automobile, electronic industry, and many more. It could be efficiently used for rust removal on bridges, and large metal facilities, such as stadiums, factories, and many other metal structures.
Laser cleaning is a preferred method to prepare surfaces; it significantly increases adherence in powder coating and painting, improves cleaning before and after welding, and it’s a perfect tool for restoration projects.

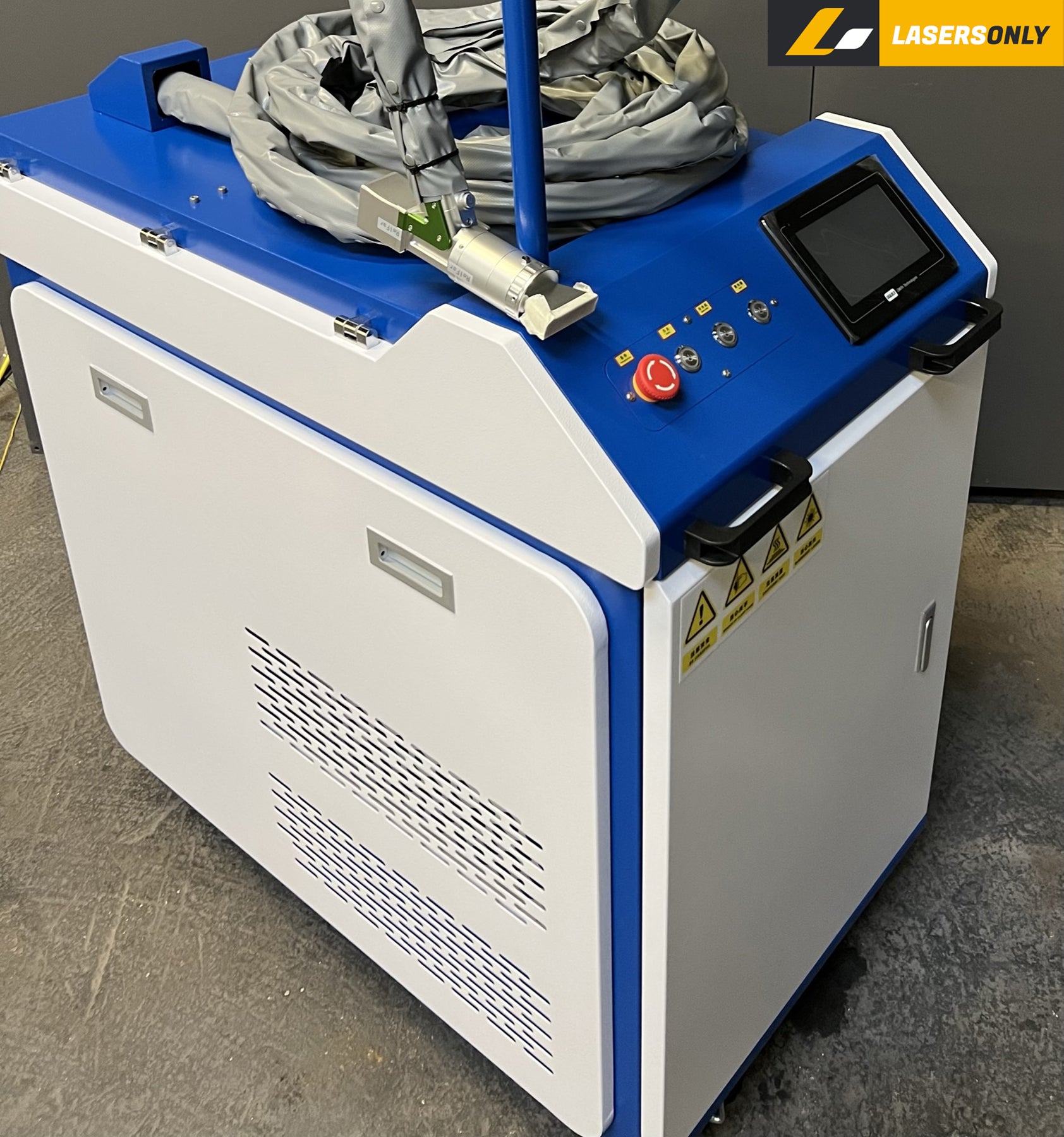

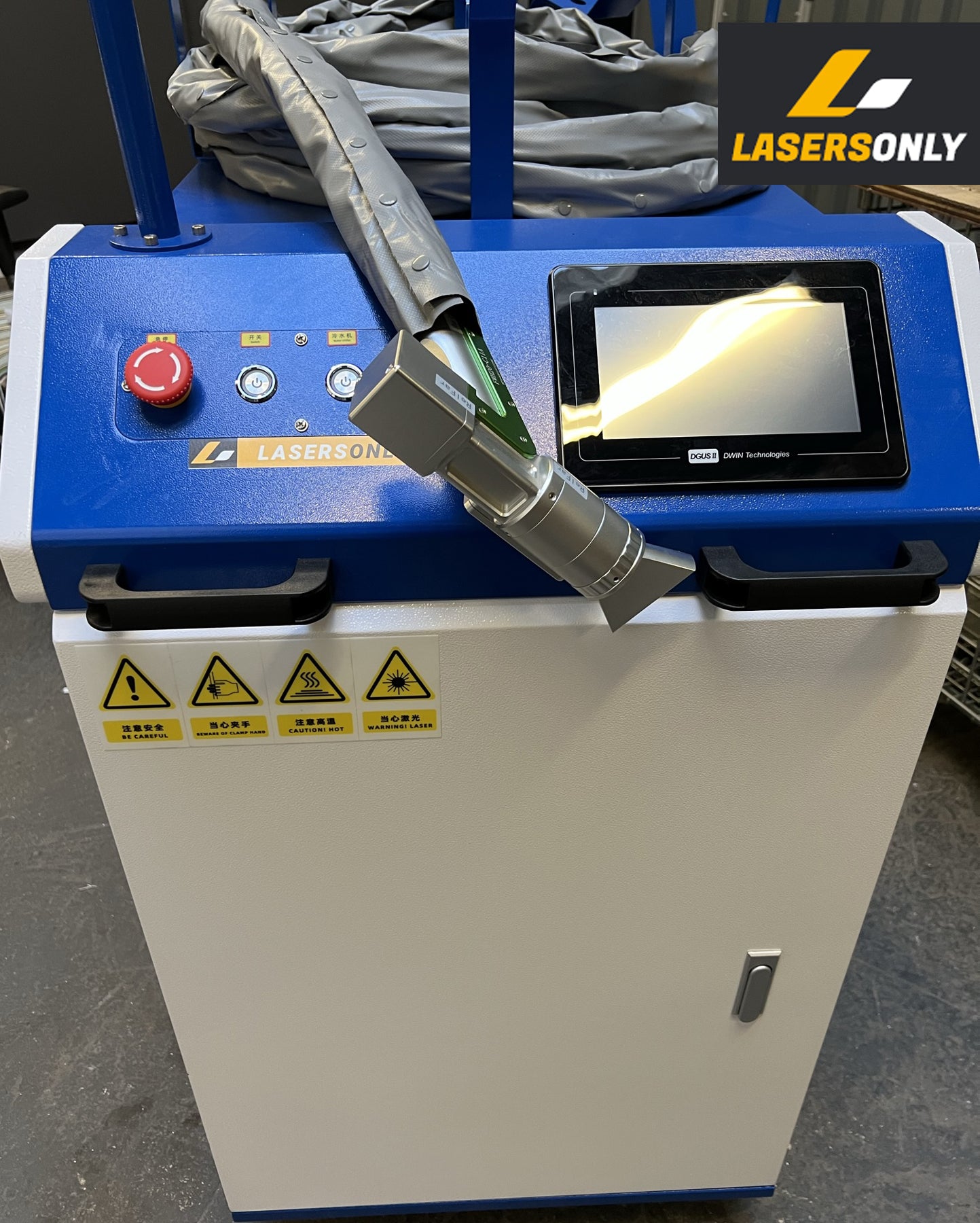

2000W CW Fiber Laser Rust Removal Machine
Product Description
Product Specification
| Type | CWL-2000 |
| Laser source | CW Fiber |
| Laser Power | 2000W |
| Fiber cable | 10-20 M |
| Wavelength | 1070nm |
| Clean speed | ≤50M²/Hour |
| Beam width | Up to 200mm |
| Scan speed | 0-7000mm/s |
| Cooling | Water Cooling |
| Voltage | Single Phase 220V |

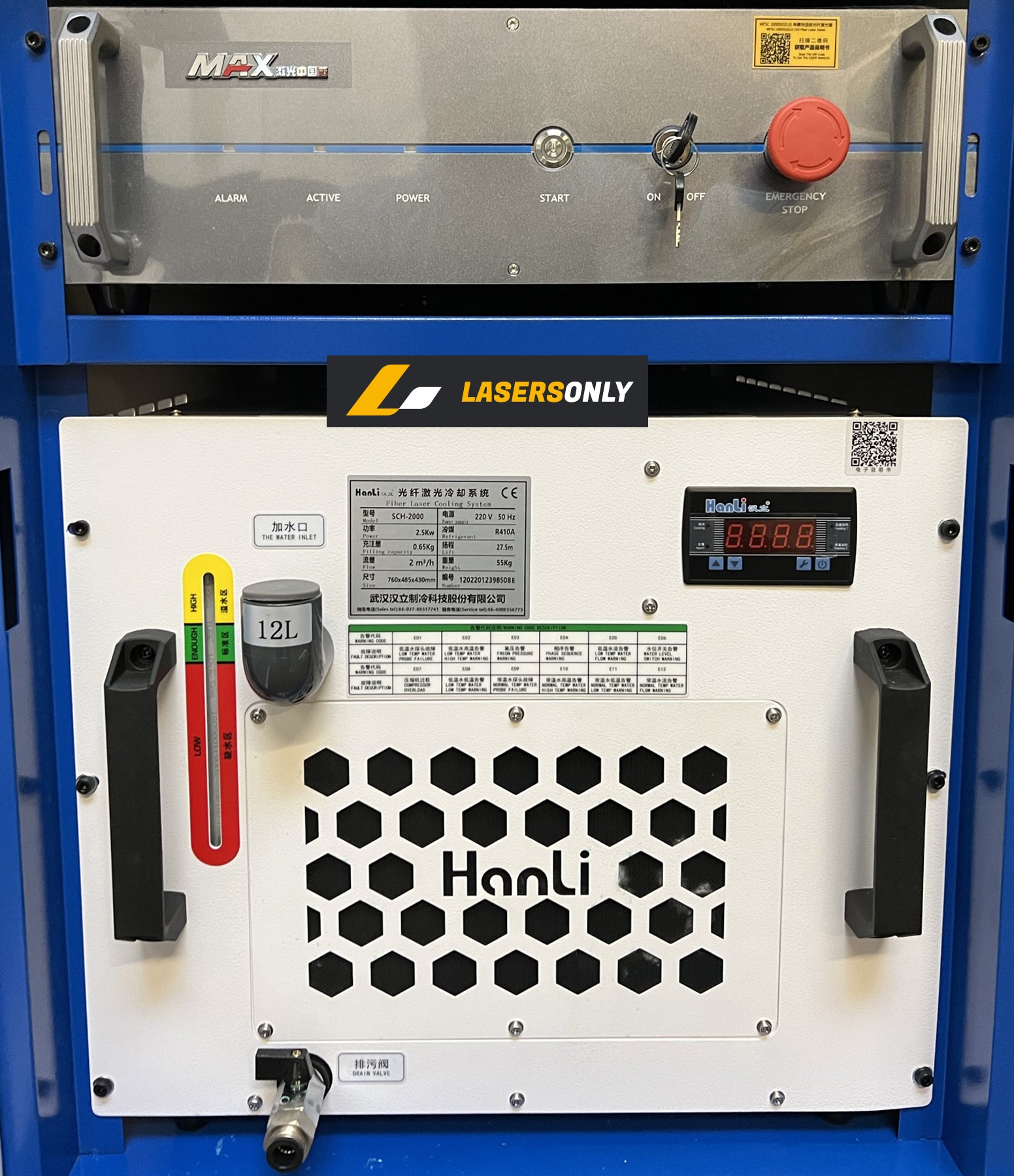

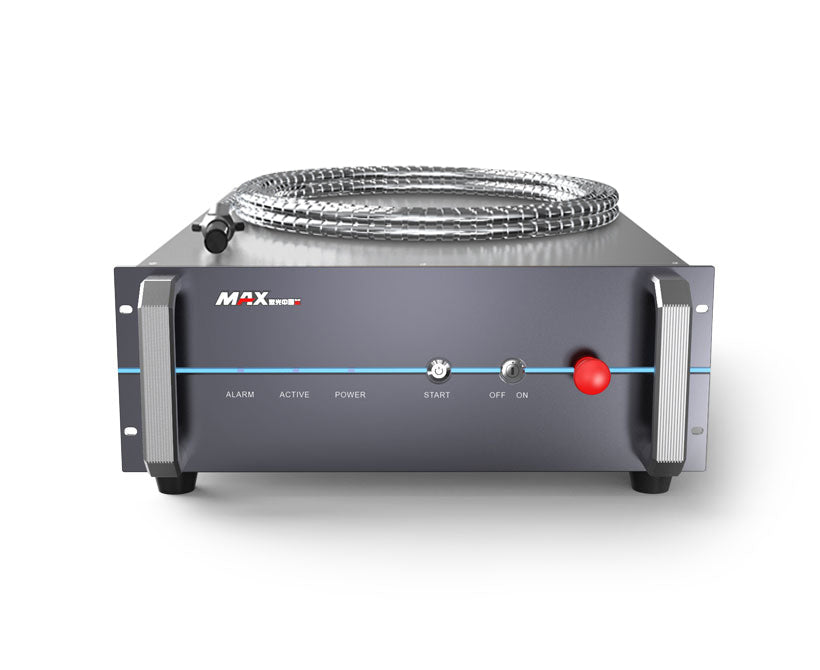

Laser Source MAXphotonics: Technical Parameters
| Brand | Maxphotonics (optional JPT, Raycus) | |
| Models | MFSC-2000W | |
| Nominal Power | W | 2000 |
| Mode of Operation | CW/Modulated | |
| Polarization | Random | |
| Power Tunability | % | 10 to 100 |
| Wavelength | nm | 1080 ± 10 |
| Power Stability | % | ±1 |
| Laser Beam Quality, BPP | 1.5 mm x mrad(50um QBH) | |
| Modulation Frequency | kHz | ≤ 20 |
| Preview Red Light Power | μW | 200 |
| Interface | QBH (LOC) | |
| Length | m | 15 standard, other lengths optional |
| Diameter | μm QBH | 50 |
| Bending Radius | mm | 200 |
| Supply Voltage | VAC | 220 (-15% to +10%) Single-phase |
| Operating Temperature | °C | 10 to +40 |
| Storage Temperature | °C | -10 to +60 |
| Humidity | % | 10 to 85 |
| Cooling Method | Water Cooling | |
| Cooling Medium | Distilled water/ Glycol Antifreeze | |
| Dimension | mm | 483×950×193 |
| Weight | kg | 72(±3) |
